327743
| 制造商 | TE Connectivity Ltd. |

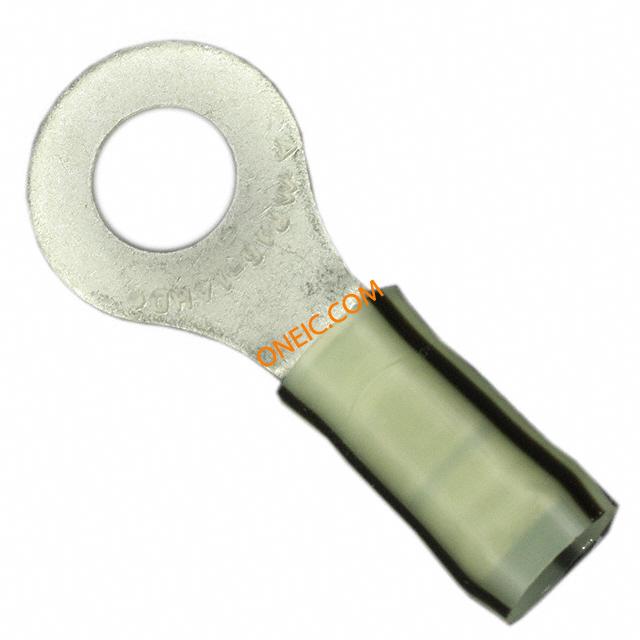

| 描述 | Ring Tongue Terminal 14-16AWG 32.92mm 13.49mm Tin Loose Piece Terminals PIDG RING 16-14HD Ring and Spade Tongue Terminals CONN RING 14-16HD AWG #1/4 PIDG Ring Tongue Terminal 14-16AWG 32.92mm 13.49mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = PIDGBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B TE Connectivity PIDG 系列, 黑色，黄色 绝缘 镀锡触芯 环形压接端子 , M6 螺栓, 0.265in内环直径, 1.296in总长 TERMINAL,PIDG R 16-14HD 1/4 |
| 分类 |
商业参数
| 产品 | Ring Terminals | 产品类别 | Terminals |
| 标准包装数量 | Bulk | 工厂包装数量 | 500 |
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | No |
电气参数
| 最大电压 | 300 | 额定电压 | 300 VAC |
| 供电电压 | 300 | ||
机械参数
| 颜色 | Yellow with Black Stripe | 形状 | RING-041 |
| 表面处理 | Tin | 重量 | .155 |
| 材料（通用） | Copper | 包装方式 | Bulk |
| 厚度 | 0.048" (1.22mm) | 电缆类型 | Regular Wire |
| 重型 | Yes | 绝缘类型 | Insulated |
| 螺钉尺寸 | M6 | 导线线规 | 14-16 AWG |
| 端接方式 | Crimp | 触点形状 | Ring Tongue |
| 安装类型 | Free Hanging (In-Line) | 螺柱/焊片尺寸 | 6 mm |
| 端子类型 | Circular | 电缆直径 | 2.6mm² |
| 电缆材料 | Solid or Stranded | 接触镀层 | Tin |
| 端子样式 | Straight | 连接器样式 | Straight |
| 触头材料 | Copper | 总长度 | 1.296" (32.92mm) |
| 包装数量 | Loose Piece | 绝缘高度 | Insulation Support |
| 端接样式 | 环形端子 | 背景色 | Black |
| 连接器颜色 | Yellow | 接触件尾部长度 | 1.27 [0.050] |
| 绝缘直径 | 5.84 [.230] Max. | 绝缘材料 - 类型 | Nylon |
| 位数 | 1 | 外缘宽度 | 0.531" (13.49mm) |
| 绝缘材料 - 材质 | Polyamide (PA), Nylon | 舌片内部开口 | 1.27 mm [ .05 in ] |
| 螺纹/螺钉/孔尺寸 | M6 | 供应商器件封装 | PIDG |
| 支撑面板厚度 | Insulation Support | 线规或范围 - AWG | 2,050 â 5,180 |
| 线规或范围 - mm² | 1.25-2.00² [16-14] | 外管直径（最大） | 0.531in |
| 外径-未扩张 | 5.84 mm [ .23 in ] | ||
产品信息
| 备注 | Heavy Duty for extra mechanical strength | 类型 | Ring Tongue Terminal |
| 连接器性别 | Female | 系列 | 327 |
| 覆盖范围 | 无覆盖 | 产品特性 | Heavy Duty, Serrated Termination |
| 可密封 | 否 | 检查插槽 | 否 |
| 制造商全称 | AMP | 其他规格 | 0.265in |
环境参数
| 工作温度 | 105 | ||
