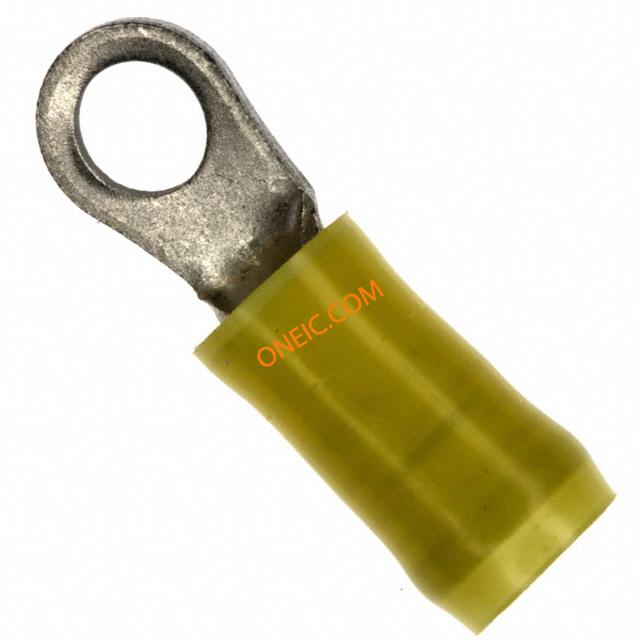

324918
| 制造商 | TE Connectivity Ltd. |
| 描述 | Ring Tongue Terminal 10-12AWG 26.72mm 7.92mm Tin Loose Piece Terminals TERMINAL PIDG R 12-1 Ring and Spade Tongue Terminals CONN RING 10-12 AWG #10 YEL PIDG Ring terminal, PIDG, yellow,AWG 12-10,M5 Ring Tongue Terminal 10-12AWG 26.72mm 7.92mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = PIDGBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B TERMINAL, RING TONGUE, #10, CRIMP YELLOW Terminal,RingTongue;RING-041;Copper;12-10AWG;300VAC;10;PIDG;Tin TE Connectivity PIDG 系列, 黄色 绝缘 镀锡触芯 环形压接端子 , M5 螺栓, 26.72mm总长 TERMINAL,PIDG R 12-10 10 |
| 分类 |
商业参数
| 产品 | Ring Terminals | 产品类别 | Terminals |
| 标准包装数量 | Bulk | 工厂包装数量 | 500 |
合规参数
| RoHS | RoHS Compliant | 标准 | RoHSCompliant,ELVCompliant |
| 海关税号 | 00000000 | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | No | ||
电气参数
| 电压范围 | 300VAC | 额定电压 | 300 VAC |
| 供电电压 | 300 | ||
机械参数
| 颜色 | Yellow | 深度 | 7.92 mm |
| 形状 | RING-041 | 表面处理 | Tin |
| 长度 | 26.72 mm | 重量 | 0.002 |
| 材料（通用） | Copper | 包装方式 | Bulk |
| 厚度 | 0.040" (1.02mm) | 电缆类型 | Regular Wire |
| 重型 | No | 绝缘类型 | Insulated |
| 螺钉尺寸 | 10 | 导线线规 | 10-12 AWG |
| 本体表面处理 | PIDG | 端接方式 | Crimp |
| 基体材料 | Copper | 触点形状 | Ring Tongue |
| 安装类型 | Free Hanging (In-Line) | 螺柱/焊片尺寸 | 5 mm |
| 端子类型 | Circular | 行程角度 | Straight |
| 连接器类型 | :Ring Tongue | 接触镀层 | Tin |
| 壳体镀层 | Tin | 连接器样式 | Straight |
| 总宽度 | 0.312" | 触头材料 | Copper |
| 柄部直径 | 0.197in. | 绝缘颜色 | :Yellow |
| 总长度 | 26.72 [1.052] | 刀片材料 | Copper |
| 包装数量 | Loose Piece | 主要材料 | Ring |
| 绝缘高度 | Insulation Support | 连接器颜色 | Yellow |
| 材料厚度 | 0.040in. | 接触件尾部长度 | 1.02 [0.040] |
| 绝缘直径 | 3.81-5.84 [.150-.230] | 绝缘材料 - 类型 | Nylon |
| 外缘宽度 | 0.312" (7.92mm) | 绝缘材料 - 材质 | Polyamide (PA), Nylon |
| 供应商器件封装 | PIDG | 线规或范围 - AWG | 5,180 â 13,100 |
| 线规或范围 - mm² | 3.00-6.00² [12-10] | ||
产品信息
| 类型 | Ring Tongue Terminal | 连接器性别 | Female |
| 系列 | 324 | 产品特性 | Serrated Termination |
| CAD图纸 | 3D CAD Model | 制造商全称 | AMP |
