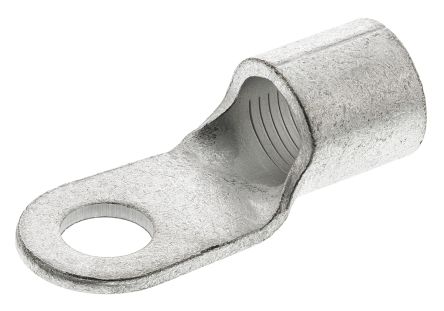

点击放大查看

322870

制造商	TE Connectivity Ltd.
描述	Ring Tongue Terminal 2AWG 38.79mm 15.87mm Tin Loose Piece Terminals RING TONGUE Ring and Spade Tongue Terminals CONN RING 2 AWG #5/16 SOLIS Ring terminal, SOLISTRAND, M8, 2 AWG Ring Tongue Terminal 2AWG 38.79mm 15.87mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = SOLISTRANDBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B Terminal,RingTongue,2AWG,StudSz5/16 Solistrand 2 AWG Straight Closed Barrel Ring Tongue Terminal TE Connectivity SOLISTRAND 系列非绝缘镀锡触芯环形压接端子 , M8 螺栓, 8.33mm内环直径, 38.79mm总长 TERMINAL,SOLIS R 2 5/16
分类	连接器解决方案压接与焊接端子/接头片形压接端子

对参数有疑问？问 AI 助手

商业参数

RoHS	RoHS Compliant	抗辐射加固	No
无铅定义	Not relevant for lead free process	安全类别	II 级
RoHS/ELV合规状态	RoHS compliant, ELV compliant	认证机构标志	Yes

核心类型

Closed Barrel

类型	Ring Tongue Terminal	类别	2
连接器性别	Female	系列	322
产品特性	Brazed Seam, Serrated Termination	可密封	否
检查插槽	否	主要用途	Brazed Seam, Serrated Termination
制造商全称	AMP	其他规格	8.33mm
输出配置	Free Hanging (In-Line)	设备部件号	MS20659-147

温度额定值

170 [338]

工作温度

170 C
