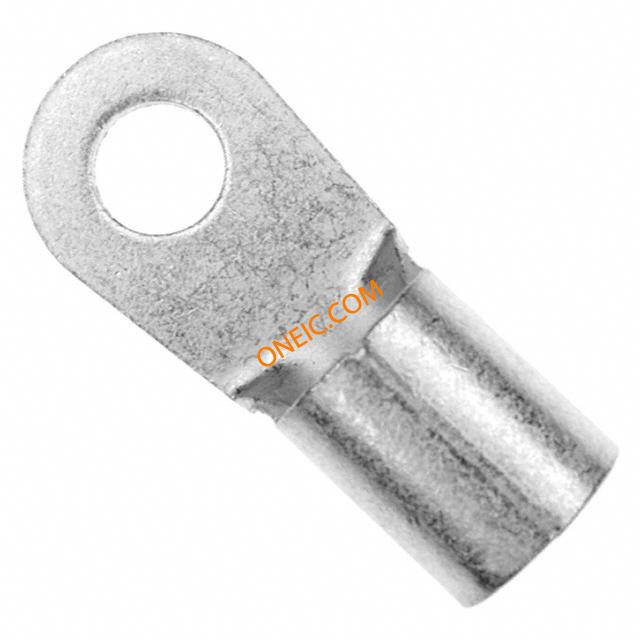

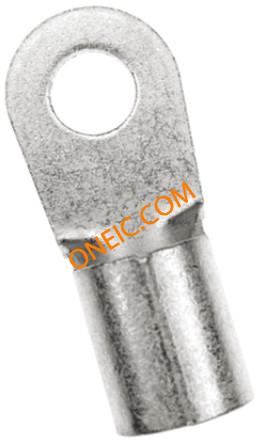

321868
| 制造商 | TE Connectivity Ltd. |
| 描述 | Ring Tongue Terminal (1/0)-1AWG 48.89mm 20.5mm Tin Loose Piece Terminals RING TONGUE Ring and Spade Tongue Terminals CONN RING 1/0 AWG #3/8 SOLIS Ring terminal, SOLISTRAND, M10, 1/0 AWG Ring Tongue Terminal (1/0)-1AWG 48.89mm 20.5mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = SOLISTRANDBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B TERMINAL, RING TONGUE, 3/8IN, CRIMP TERMINAL,RINGTOUNGE,SOLISTRAND,3/8,1-1/0AWG,STRAIGHT,CLOSEDBARREL TERMINAL SOLIS RING 1/0 3/8 |
| 分类 |
商业参数
| 产品 | Ring Terminals | 零件号别名 | MS20659-118 |
| 产品类别 | Terminals | 标准包装数量 | Bulk |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85444920 |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | Yes |
电气参数
| 核心类型 | Closed Barrel | ||
机械参数
| 颜色 | Not Required | 深度 | 20.5 mm |
| 形状 | RING-049 | 表面处理 | Tin |
| 重量 | 0.953 | 材料（通用） | Copper |
| 包装方式 | Bulk | 厚度 | 1.78 [0.070] |
| 电缆类型 | Regular Wire | 重型 | No |
| 绝缘类型 | Not Insulated | 导线线规 | (1/0)-1 AWG |
| 本体表面处理 | SOLISTRAND | 端接方式 | Crimp |
| 基体材料 | Copper | 触点形状 | Ring Tongue |
| 安装类型 | Free Hanging (In-Line) | 螺柱/焊片尺寸 | 9.52 mm |
| 端子类型 | Circular | 行程角度 | Straight |
| 连接器类型 | :Ring Tongue | 接触镀层 | Tin |
| 壳体镀层 | Tin | 线束直径 | 11.28 mm |
| 连接器样式 | Straight | 总宽度 | 0.807 |
| 触头材料 | Copper | 绝缘颜色 | :Uninsulated |
| 总长度 | 1.925" (48.89mm) | 刀片材料 | Copper |
| 包装数量 | Loose Piece | 主要材料 | Ring |
| 绝缘高度 | Non-Insulation Support | 端接样式 | Crimp |
| 外径 | 0.807in | 外缘宽度 | 0.807" (20.50mm) |
| 供应商器件封装 | SOLISTRAND | 线规或范围 - AWG | 83,700 â 119,500 |
| 线规或范围 - mm² | 41.00-60.00; [1-1/0] | ||
产品信息
| 类型 | Ring Tongue Terminal | 类别 | 2 |
| 连接器性别 | Female | 系列 | 321 |
| 产品特性 | Brazed Seam | 制造商全称 | AMP |
| 设备部件号 | MS20659-118 | ||
