321866
| 制造商 | TE Connectivity Ltd. |

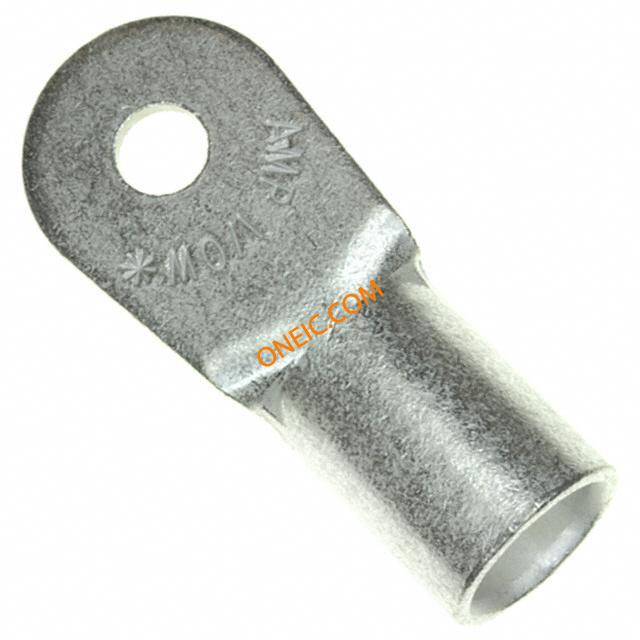

| 描述 | Ring Tongue Terminal 1-(1/0)AWG 48.89mm 20.5mm Tin Loose Piece Terminals N/I-RING 1/0AWG #1/4 M6+ Ring and Spade Tongue Terminals CONN RING 1/0 AWG #1/4 SOLIS Ring Tongue Terminal 1-(1/0)AWG 48.89mm 20.5mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = SOLISTRANDBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B TERMINAL,RINGTOUNGE,SOLISTRAND,1/4,STRAIGHT,CLOSEDBARREL TE Connectivity SOLISTRAND 系列 非绝缘 镀锡触芯 环形压接端子 , M6 (1/4) 螺栓, 6.73mm内环直径, 48.89mm总长 BODY SOLIS RING 1/0 1/4 |
| 分类 |
商业参数
| 产品 | Ring Terminals | 零件号别名 | MS20659-117 |
| 产品类别 | Terminals | 标准包装数量 | Bulk |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | RoHS Compliant | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | 安全类别 | II 级 |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | Yes |
电气参数
| 核心类型 | Closed Barrel | ||
机械参数
| 颜色 | Not Required | 深度 | 20.5 mm |
| 形状 | RING-049 | 表面处理 | Tin |
| 重量 | 23.45 | 材料（通用） | Copper |
| 包装方式 | Bulk | 厚度 | 1.85 [0.073] |
| 电缆类型 | Regular Wire | 重型 | No |
| 绝缘类型 | Not Insulated | 螺钉尺寸 | M6 |
| 导线线规 | 1-(1/0) AWG | 本体表面处理 | SOLISTRAND |
| 端接方式 | Crimp | 基体材料 | Copper |
| 触点形状 | Ring Tongue | 安装类型 | Free Hanging (In-Line) |
| 螺柱/焊片尺寸 | 6 mm | 端子类型 | Circular |
| 行程角度 | Straight | 电缆直径 | 50mm² |
| 电缆材料 | Solid or Stranded | 接触镀层 | Tin |
| 壳体镀层 | Tin | 线束直径 | 11.28 mm |
| 连接器样式 | Straight | 触头材料 | Copper |
| 总长度 | 1.925" (48.89mm) | 包装数量 | Loose Piece |
| 主要材料 | Ring | 筒径 | Standard |
| 绝缘高度 | Non-Insulation Support | 端接样式 | Crimp |
| 材料厚度 | 1.85 mm [ .073 in ] | 绝缘材料 - 类型 | No |
| 位数 | 1 | 外缘宽度 | 0.807" (20.50mm) |
| 螺纹/螺钉/孔尺寸 | M6 (1/4) | 供应商器件封装 | SOLISTRAND |
| 线规或范围 - AWG | 83,700 â 119,500 | 线规或范围 - mm² | 41.00-60.00; [1-1/0] |
| 外管直径（最大） | 20.5mm | 非扩张内径 | 11.28 mm [ .444 in ] |
产品信息
| 类型 | Ring Tongue Terminal | 类别 | 2 |
| 连接器性别 | Female | 系列 | 321 |
| 覆盖范围 | 无覆盖 | 产品特性 | Brazed Seam |
| 制造商全称 | AMP | 其他规格 | 6.73mm |
| 设备部件号 | MS20659-117 | ||
环境参数
| 工作温度 | -65C to 105C | ||
