321684
| 制造商 | TE Connectivity Ltd. |

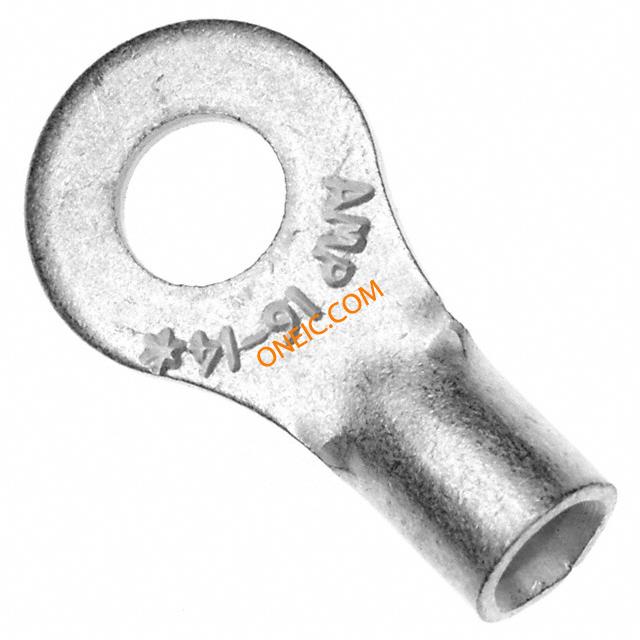

| 描述 | Ring Tongue Terminal 14-16AWG 14.99mm 7.92mm Tin Loose Piece Terminals TERMINAL SOLIS R 16- Ring and Spade Tongue Terminals CONN RING 14-16 AWG #6 SOLIS Ring Tongue Terminal 14-16AWG 14.99mm 7.92mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = SOLISTRANDBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B SOLISTRANDTERM26-4,TERMINAL,SOLISR16-146 TE Connectivity SOLISTRAND 系列 非绝缘 镀锡触芯 环形压接端子 , M3.5 (#6) 螺栓, 3.68mm内环直径, 14.99mm总长 TERMINAL,SOLIS R 16-14 6 |
| 分类 |
商业参数
| 产品 | Ring Terminals | 零件号别名 | M7928 M7928/7-7 |
| 产品类别 | Terminals | 标准包装数量 | Bulk |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| 安全类别 | II 级 | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | No | ||
电气参数
| 核心类型 | Closed Barrel | ||
机械参数
| 形状 | RING-048 | 表面处理 | Tin |
| 重量 | .629 | 材料（通用） | Copper |
| 包装方式 | Bulk | 厚度 | 2.00 [0.079] |
| 电缆类型 | Regular Wire | 重型 | No |
| 绝缘类型 | Not Insulated | 螺钉尺寸 | 6 |
| 导线线规 | 14-16 AWG | 端接方式 | Crimp |
| 触点形状 | Ring Tongue | 安装类型 | Free Hanging (In-Line) |
| 螺柱/焊片尺寸 | 3.5 mm | 端子类型 | Circular |
| 电缆直径 | 2.6mm² | 电缆材料 | Solid or Stranded |
| 接触镀层 | Tin | 线束直径 | 2.16 mm |
| 连接器样式 | Straight | 触头材料 | Copper |
| 总长度 | 0.590" (14.99mm) | 包装数量 | Loose Piece |
| 筒径 | Standard | 绝缘高度 | Non-Insulation Support |
| 端接样式 | Crimp | 材料厚度 | .84 mm [ .033 in ] |
| 绝缘材料 - 类型 | No | 位数 | 1 |
| 镀层厚度（通用） | 2.54 | 外缘宽度 | 0.312" (7.92mm) |
| 筒体内径 | 2.16 mm [ .085 in ] | 螺纹/螺钉/孔尺寸 | M3.5 (#6) |
| 供应商器件封装 | SOLISTRAND | 线规或范围 - AWG | 2,050 â 5,180 |
| 线规或范围 - mm² | 1.25-2.00² [16-14] | 外管直径（最大） | 7.92mm |
| 非扩张内径 | 2.16 mm [ .085 in ] | ||
产品信息
| 类型 | Ring Tongue Terminal | 类别 | 2 |
| 连接器性别 | Female | 系列 | 321 |
| 覆盖范围 | 无覆盖 | 产品特性 | Brazed Seam, Serrated Termination |
| 可密封 | 否 | 制造商全称 | AMP |
| 其他规格 | 3.68mm | 设备部件号 | M7928/7-7 |
环境参数
| 温度额定值 | 170 [338] | 工作温度 | 170 C |
文档与媒体
