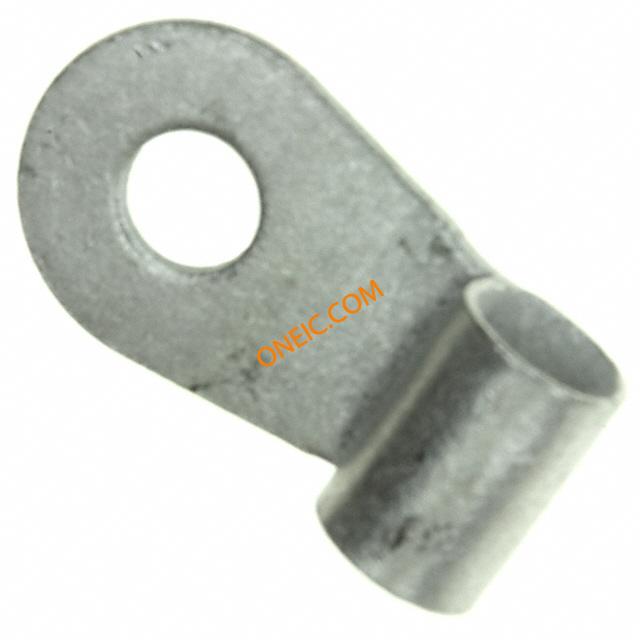

321441

制造商	TE Connectivity Ltd.
描述	Ring Tongue Terminal 8AWG 23.32mm 12.7mm Tin Loose Piece Terminals N/I-RING 08AWG #10 Ring and Spade Tongue Terminals CONN RING FLAG 8 AWG #10 SOLIS Ring Tongue Terminal 8AWG 23.32mm 12.7mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = FlagBody Style = SOLISTRANDBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B TERMINAL,SOLIS FLAG R 8 10
分类	连接器解决方案压接与焊接端子/接头片形压接端子

对参数有疑问？问 AI 助手

商业参数

产品	Ring Terminals	其他名称	A28060
产品类别	Terminals	标准包装数量	Bulk
工厂包装数量	100

合规参数

RoHS	RoHS Compliant	无铅定义	Not relevant for lead free process
RoHS/ELV合规状态	RoHS compliant, ELV compliant	认证机构标志	No

电气参数

核心类型

Closed Barrel

机械参数

形状	RING-091	表面处理	Tin
重量	3.166	材料（通用）	Copper
包装方式	Bulk	厚度	0.99 [0.039]
电缆类型	Regular Wire	重型	No
绝缘类型	Not Insulated	螺钉尺寸	10
导线线规	8 AWG	端接方式	Crimp, Flag
触点形状	Ring Tongue	安装类型	Free Hanging (In-Line), Right Angle
螺柱/焊片尺寸	4.82 mm	端子类型	Circular
电缆材料	Solid or Stranded	接触镀层	Tin
线束直径	4.57 mm	连接器样式	Flag
触头材料	Copper	总长度	0.918" (23.32mm)
包装数量	Loose Piece	筒径	Standard
绝缘高度	Non-Insulation Support	端接样式	Crimp
材料厚度	.99 mm [ .039 in ]	绝缘材料 - 类型	No
位数	1	外缘宽度	0.500" (12.70mm)
螺纹/螺钉/孔尺寸	5 mm [ .197 in ]	供应商器件封装	SOLISTRAND
线规或范围 - AWG	13,100 â 20,800	线规或范围 - mm²	8.00Â² [8]
非扩张内径	4.57 mm [ .18 in ]

产品信息

类型	Ring Tongue Terminal	连接器性别	Female
系列	321	产品特性	Brazed Seam, Serrated Termination
可密封	否	制造商全称	AMP

环境参数

工作温度

170
