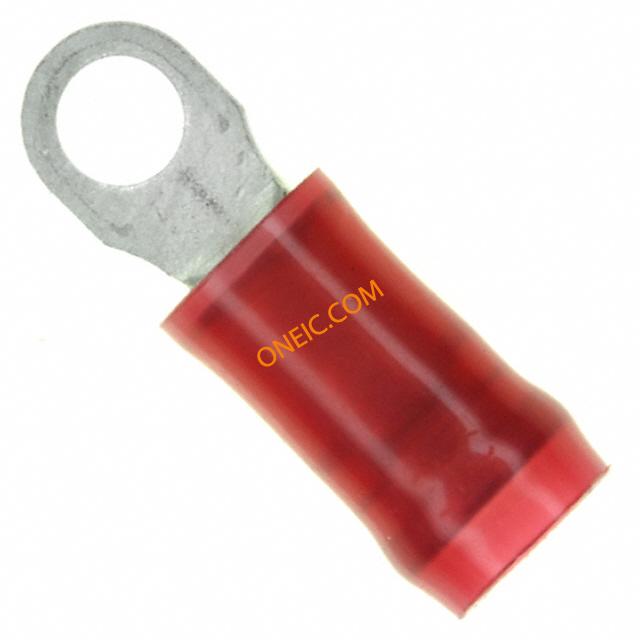

320882
| 制造商 | TE Connectivity Ltd. |
| 描述 | PIDG Ring Tongue Terminal 16-22AWG 16.99mm 4.62mm Tin Loose Piece Terminals PIDG R 22-16 COMM 22 Ring and Spade Tongue Terminals CONN RING 16-22 AWG #4 RED PIDG PIDG Ring Tongue Terminal 16-22AWG 16.99mm 4.62mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = PIDGBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B TERMINAL, RING TONGUE, #4, CRIMP, RED TERMINAL,RINGTONGUE,PIDG,22-16AWG(MIL4),STRAIGHT,CLOSEDBARREL PIDG R 22-16 COmm 22-18 MIL 4 PIDG R 22-16 COMM 22-18 MIL 4 |
| 分类 |
商业参数
| 产品 | Ring Terminals | 产品类别 | Terminals |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366910 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | No | ||
电气参数
| 额定电压 | 300 VAC | 供电电压 | 300 |
机械参数
| 颜色 | Red | 形状 | RING-041 |
| 表面处理 | Tin | 长度 | 16.99 mm |
| 重量 | 0.00068 | 材料（通用） | Copper |
| 包装方式 | Bulk | 厚度 | 0.031" (0.79mm) |
| 电缆类型 | Regular Wire | 重型 | No |
| 绝缘类型 | Insulated | 螺钉尺寸 | 4 |
| 导线线规 | 16-22 AWG | 端接方式 | Crimp |
| 触点形状 | Ring Tongue | 安装类型 | Free Hanging (In-Line) |
| 螺柱/焊片尺寸 | 2.5 mm | 端子类型 | Circular |
| 行程角度 | Straight | 连接器类型 | :Ring Tongue |
| 接触镀层 | Tin | 连接器样式 | Straight |
| 总宽度 | 0.182" | 触头材料 | Copper |
| 绝缘颜色 | :Red | 总长度 | 16.99 [0.668] |
| 包装数量 | Loose Piece | 主要材料 | Ring |
| 绝缘高度 | Insulation Support | 接触件尾部长度 | 0.79 [0.031] |
| 绝缘直径 | 2.67-3.56 [.105-.140] | 绝缘材料 - 类型 | Nylon |
| 外缘宽度 | 0.182" (4.62mm) | 绝缘材料 - 材质 | Polyamide (PA), Nylon |
| 供应商器件封装 | PIDG | 线规或范围 - AWG | 509 â 3,260 |
| 线规或范围 - mm² | 0.30-1.40² [22-16] | ||
产品信息
| 类型 | PIDG Ring Tongue Terminal | 连接器性别 | Female |
| 系列 | 320 | 产品特性 | Serrated Termination |
| 制造商全称 | AMP | ||
文档与媒体
相关型号
217202-1
te connectivity / amp
Terminals Tool Die Set Pneumatic Crimping Head Crimpers 626 T HD CRIMPER Hand Tools 626 T HD CRIMPER T-HEAD CRIMPER NORM CLOSED 626 T HD CRIMPER,NORM CLOSED
47386
te connectivity / amp
General Hand Tool Used In The Aircraft And Military Industries Crimpers DAHT PIDG CRIMPER 22-16 AWG Hand Tools DAHT PIDG CRIMPER 22-16 AWG HAND TOOL PIDG 16-26AWG Connector Accessories PIDG Terminal and Splice Hand Tool (16-22)AWG CRIMP TOOL CERTI-CRIMP PIDG 22-16 DAHT

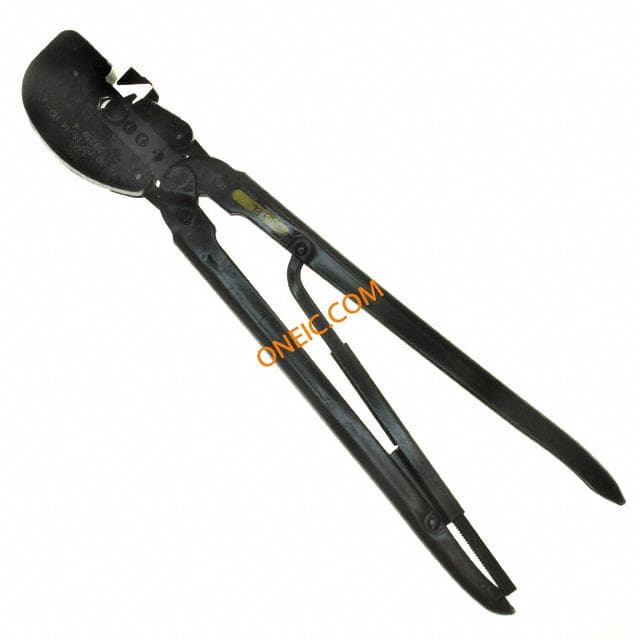

59239-4
