320765
| 制造商 | TE Connectivity Ltd. |

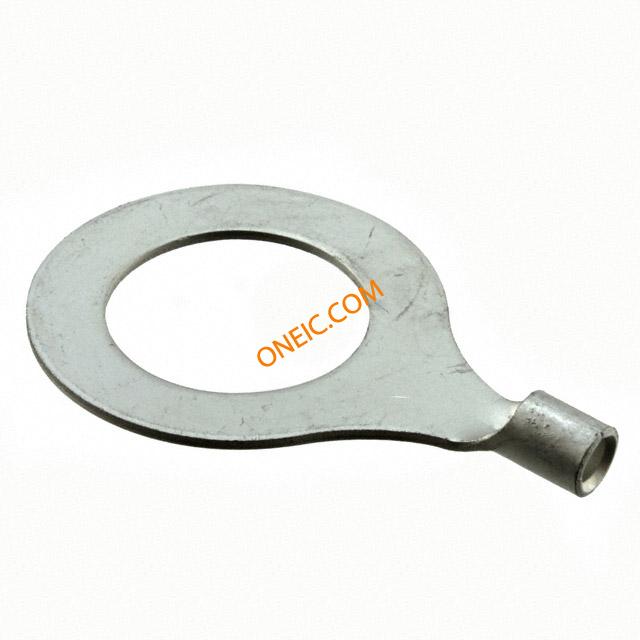

| 描述 | Ring Tongue Terminal 10-12AWG 48.16mm 31.75mm Tin Loose Piece Terminals RING 12-10 AWG #3/4 Ring and Spade Tongue Terminals CONN RING 12-10AWG #3/4 SOLIS Ring Tongue Terminal 10-12AWG 48.16mm 31.75mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = SOLISTRANDBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B TERMINAL,SOLISR12-103/4 RING TONGUE TERMINAL 10-12 AWG 3/4" STUD SOLISTRAND ROHS TE Connectivity SOLISTRAND 系列 非绝缘 镀锡触芯 环形压接端子 , M18 (3/4) 螺栓, 19.84mm内环直径, 48.16mm总长 TERMINAL,SOLIS R 12-10 3/4 |
| 分类 |
商业参数
| 产品 | Ring Terminals | 产品类别 | Terminals |
| 标准包装数量 | Bulk | 工厂包装数量 | 500 |
合规参数
| RoHS | RoHS Compliant | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | No | ||
电气参数
| 核心类型 | Closed Barrel | ||
机械参数
| 颜色 | Not Required | 深度 | 31.75 mm |
| 形状 | RING-048 | 表面处理 | Tin |
| 重量 | 8.049 | 材料（通用） | Copper |
| 包装方式 | Bulk | 厚度 | 1.07 [0.042] |
| 电缆类型 | Regular Wire | 重型 | No |
| 绝缘类型 | Not Insulated | 螺钉尺寸 | 3/4 |
| 导线线规 | 10-12 AWG | 端接方式 | Crimp |
| 基体材料 | Copper | 触点形状 | Ring Tongue |
| 安装类型 | Free Hanging (In-Line) | 螺柱/焊片尺寸 | 19.05 mm |
| 端子类型 | Circular | 电缆直径 | 6.6mm² |
| 电缆材料 | Solid or Stranded | 接触镀层 | Tin |
| 壳体镀层 | Tin | 线束直径 | 3.28 mm |
| 连接器样式 | Straight | 触头材料 | Copper |
| 总长度 | 1.896" (48.16mm) | 包装数量 | Loose Piece |
| 筒径 | Standard | 绝缘高度 | Non-Insulation Support |
| 端接样式 | 环形端子 | 材料厚度 | 1.07 mm [ .042 in ] |
| 绝缘材料 - 类型 | No | 位数 | 1 |
| 镀层厚度（通用） | 2.54 | 外缘宽度 | 1.250" (31.75mm) |
| 筒体内径 | 3.28 mm [ .129 in ] | 螺纹/螺钉/孔尺寸 | M18 (3/4) |
| 供应商器件封装 | SOLISTRAND | 线规或范围 - AWG | 5,180 â 13,100 |
| 线规或范围 - mm² | 3.00-6.00² [12-10] | 外管直径（最大） | 31.75mm |
| 非扩张内径 | 3.28 mm [ .129 in ] | ||
产品信息
| 类型 | Ring Tongue Terminal | 系列 | SOLISTRAND |
| 覆盖范围 | 无覆盖 | 产品特性 | Brazed Seam, Serrated Termination |
| 可密封 | 否 | UNSPSC代码 | 31163100 |
| 制造商全称 | AMP | 其他规格 | 19.84mm |
环境参数
| 工作温度 | 170 | ||
