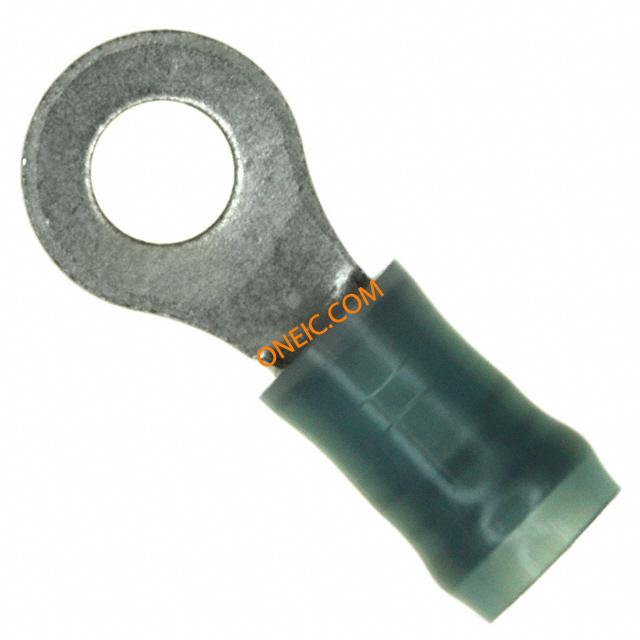

点击放大查看
320565
| 制造商 | TE Connectivity Ltd. |
| 描述 | Ring Tongue Terminal 14-16AWG 21.82mm 8.71mm Tin Loose Piece Terminals NYLON RING 16-14 8 Ring and Spade Tongue Terminals CONN RING 14-16 AWG #8 BLUE PIDG Ring terminal, PIDG, blue, AWG 16-14, M4 Ring Tongue Terminal 14-16AWG 21.82mm 8.71mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = PIDGBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B CRIMP TERMINAL, RING, PIDG, M4, BLUE TERMINAL, RING TONGUE, #8, CRIMP, BLUE AMP;TERMINAL;RINGTONGUE;16-14AWG;BLUE;STUDSIZE8 Ring terminal; M4; Ø:4.34mm; 1.25÷2mm2; crimped; for cable; tinned PIDG 16-14 AWG Straight Closed Barrel Ring Tongue Terminal Ring cable lug blue 4.3 mm, 320565, TE Connectivity TE Connectivity PIDG 系列, 蓝色 镀锡触芯 环形压接端子 , M4 螺栓, 0.171in内环直径, 21.82mm总长 TERMINAL,PIDG R 16-14 8 |
| 分类 |
商业参数
| 产品 | Ring Terminals | 产品类别 | Terminals |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | No |
电气参数
| 驱动类型 | ring terminal | 额定电压 | 300 VAC |
| 供电电压 | 300 | ||
机械参数
| 颜色 | Blue | 深度 | 8.71 mm |
| 形状 | RING-041 | 表面处理 | Tin |
| 重量 | 0.002 | 材料（通用） | Copper |
| 包装方式 | Bulk | 厚度 | 0.031" (0.79mm) |
| 电缆类型 | Regular Wire | 重型 | No |
| 绝缘类型 | Insulated | 螺钉尺寸 | 8 |
| 导线线规 | 14-16 AWG | 端接方式 | Crimp |
| 基体材料 | Copper | 触点形状 | Ring Tongue |
| 安装类型 | Free Hanging (In-Line) | 螺柱/焊片尺寸 | 4.17 mm |
| 端子类型 | Circular | 行程角度 | Straight |
| 连接器类型 | :Ring Tongue | 接触镀层 | Tin |
| 安装样式 | for cable | 壳体镀层 | Tin |
| 连接器样式 | Straight | 总宽度 | 0.343" |
| 触头材料 | Copper | 套圈材料 | insulated |
| 绝缘颜色 | :Blue | 总长度 | 0.859" (21.82mm) |
| 包装数量 | Loose Piece | 主要材料 | Ring |
| 内径（直径） | 4.34mm | 绝缘高度 | Insulation Support |
| 连接器颜色 | Blue | 接触件尾部长度 | 0.79 [0.031] |
| 绝缘直径 | 2.92-4.32 [.115-.170] | 绝缘材料 - 类型 | Nylon |
| 外缘宽度 | 0.343" (8.71mm) | 绝缘材料 - 材质 | Polyamide (PA), Nylon |
| 安装孔直径 | M4 | 供应商器件封装 | PIDG |
| 线规或范围 - AWG | 2,050 â 5,180 | 线规或范围 - mm² | 1.25-2.00² [16-14] |
| 触点材料 - 镀层 | tinned | ||
产品信息
| SPG | 1 | 备注 | Available On-Tape for Automatic Termination. |
| 类型 | Ring Tongue Terminal | 连接器性别 | Female |
| 系列 | 320 | 产品特性 | Serrated Termination |
| CAD图纸 | 3D CAD Model | 制造商全称 | AMP |
| 单元数量 | 1 | ||
环境参数
| 温度范围 | 105 | 工作温度 | + 105 C |
