320138
| 制造商 | TE Connectivity Ltd. |

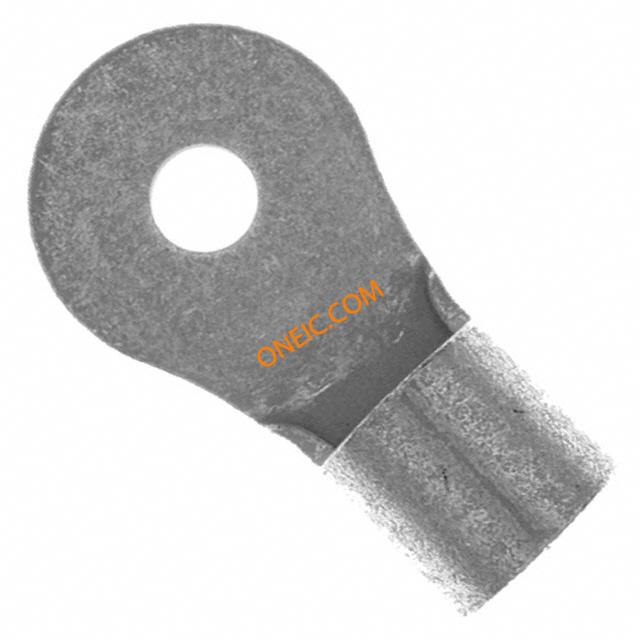

| 描述 | Ring Tongue Terminal 2AWG 42.09mm 22.61mm Tin Loose Piece Terminals SOLISTRAND RING 2 Ring and Spade Tongue Terminals CONN RING 2 AWG #1/4 SOLIS Ring Tongue Terminal 2AWG 42.09mm 22.61mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = SOLISTRANDBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B TERMINAL,RINGROUNGE,SOLISTRAND,2,1/4,STRAIGHT,CLOSEDBARREL TE Connectivity SOLISTRAND 系列 非绝缘 镀锡触芯 环形压接端子 , M6 (1/4) 螺栓, 0.265in内环直径, 1.657in总长 TERMINAL,SOLIS R 2 1/4 |
| 分类 |
商业参数
| 产品 | Ring Terminals | 产品类别 | Terminals |
| 标准包装数量 | Bulk | 工厂包装数量 | 50 |
合规参数
| RoHS | RoHS Compliant | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | No | ||
电气参数
| 核心类型 | Closed Barrel | ||
机械参数
| 颜色 | Not Required | 深度 | 22.61 mm |
| 形状 | RING-050 | 表面处理 | Tin |
| 材料（通用） | Copper | 最大负载 | 否 |
| 包装方式 | Bulk | 厚度 | 1.85 [0.073] |
| 电缆类型 | Regular Wire | 重型 | No |
| 绝缘类型 | Not Insulated | 导线线规 | 2 AWG |
| 本体表面处理 | SOLISTRAND | 端接方式 | Crimp |
| 重量（g） | 17.121 | 基体材料 | Copper |
| 触点形状 | Ring Tongue | 安装类型 | Free Hanging (In-Line) |
| 螺柱/焊片尺寸 | 6 mm | 端子类型 | Circular |
| 线径 | 9.39 mm [ .37 in ] | 行程角度 | Straight |
| 电缆直径 | 42.4mm² | 接触镀层 | Tin |
| 壳体镀层 | Tin | 线束直径 | 9.39 mm |
| 连接器样式 | Straight | 触头材料 | Copper |
| 总长度 | 1.657" (42.09mm) | 包装数量 | Loose Piece |
| 主要材料 | Ring | 电缆端接方式 | 标准 |
| 绝缘高度 | Non-Insulation Support | 端接样式 | Crimp |
| 材料厚度 | 1.85 mm [ .073 in ] | 绝缘材料 - 类型 | 否 |
| 位数 | 1 | 外缘宽度 | 0.890" (22.61mm) |
| 螺纹/螺钉/孔尺寸 | M6 (1/4) | 供应商器件封装 | SOLISTRAND |
| 端子柱长度 | 9.39 mm [ .369 in ] | 小外径 | 6.73 mm [ .265 in ] |
| 线规或范围 - AWG | 52,600 â 83,700 | 线规或范围 - mm² | 34.00-35.00² [2] |
| 外管直径（最大） | 0.89in | ||
产品信息
| 类型 | Ring Tongue Terminal | 连接器性别 | Female |
| 系列 | 320 | 覆盖范围 | 无覆盖 |
| 产品特性 | Serrated Termination | 可密封 | 否 |
| 制造商全称 | AMP | 其他规格 | 0.265in |
环境参数
| 工作温度 | 170 | ||
