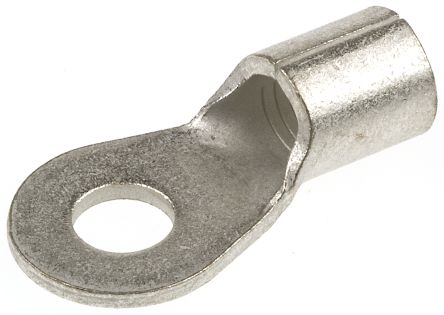

160013
| 制造商 | TE Connectivity Ltd. |
| 描述 | Ring Tongue Terminal 8AWG 23.7mm 11.9mm Tin Loose Piece Terminals N/I-RING 08AWG #5 Ring and Spade Tongue Terminals TERM RING TONGUE STR 8AWG Ring terminal, SOLISTRAND, M5, 8 AWG Ring Tongue Terminal 8AWG 23.7mm 11.9mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = SOLISTRANDBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B CRIMP TERMINAL, RING, M5, PK50 TE Connectivity SOLISTRAND 系列 非绝缘 镀锡触芯 环形压接端子 , M5 螺栓 SOLIS 8 R M5 |
| 分类 |
商业参数
| 产品 | Ring Terminals | 产品类别 | Terminals |
| 标准包装数量 | Bulk | 工厂包装数量 | 500 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | No | ||
机械参数
| 形状 | RING-080 | 表面处理 | Tin |
| 重量 | 0.14 | 材料（通用） | Copper |
| 包装方式 | Bulk | 厚度 | 0.048" (1.22mm) |
| 电缆类型 | Regular Wire | 重型 | No |
| 绝缘类型 | Not Insulated | 导线线规 | 8 AWG |
| 端接方式 | Crimp | 触点形状 | Ring Tongue |
| 安装类型 | Free Hanging (In-Line) | 螺柱/焊片尺寸 | 5 mm |
| 端子类型 | Circular | 连接器类型 | :Ring Tongue |
| 接触镀层 | Tin | 连接器样式 | Straight |
| 厚度（最大） | 1.20 [0.047] | 触头材料 | Copper |
| 绝缘颜色 | :(Not Available) | 总长度 | 0.933" (23.70mm) |
| 包装数量 | Loose Piece | 绝缘高度 | Non-Insulation Support |
| 连接器颜色 | :Tin | 外缘宽度 | 0.469" (11.91mm) |
| 绝缘材料 - 材质 | :(Not Available) | 供应商器件封装 | SOLISTRAND |
| 线规或范围 - AWG | :10AWG | 线规或范围 - mm² | 8.00² [8] |
| 外径-未扩张 | :4.2mm | ||
产品信息
| 类型 | Ring Tongue Terminal | 系列 | :SOLISTRAND |
| 产品特性 | Brazed Seam, Serrated Termination | 制造商全称 | AMP |
环境参数
| 工作温度 | :170°C | ||
