点击放大查看

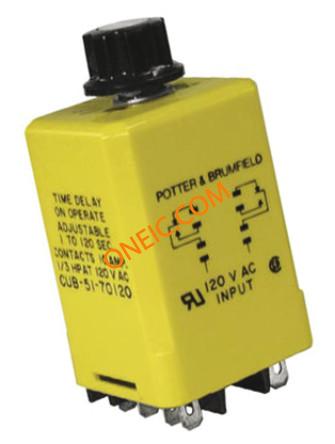

CLB-51-70120
| 制造商 | TE Connectivity Ltd. |
| 描述 | Time Delay & Timing Relays KNOB ADJ 120 VAC RELAY TIME DELAY DPDT 10A 120VAC Relay,E-Mech,Timing,OnDelay,DPDT,Cur-Rtg Relay;E-Mech;Timing;On Delay;DPDT;Cur-Rtg 10A;Ctrl-V 120AC;1.2-120 sec Electromechanical Relay DPDT 10A 120VAC 1Ohm Plain Case Electromechanical Relay DPDT 10A 120VAC 1Ohm Plain Case Product Highlights:CL SeriesTime Delay RelayInput Voltage = 120 VACContact Arrangement = 2 Form C, DPDT, 2 C/OContact Rating = 10A @ 30 VDC or 277 VAC TIME DELAY RELAY, DPDT, 120SEC, 120VAC Relay;E-Mech;Timing;OnDelay;DPDT;Cur-Rtg10A;Ctrl-V120AC;1.2-120sec CLB-51-70120=TIME DELAY REL |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 交货时间 | 84 Days | 其他名称 | 7-1393137-5 |
| 子类别 | Electromechanical Relay | 零件号别名 | 7-1393137-5 |
| 产品类别 | Time Delay & Timing Relays | 标准包装数量 | 6 |
| 工厂包装数量 | 20 | ||
合规参数
| RoHS | No | 海关税号 | 00000000 |
电气参数
| 电路 | DPDT (2 Form C) | 延迟时间 | 1.2 Sec ~ 120 Sec |
| 输出类型 | Mechanical Relay | 量程（°/s） | 1.2 s to 120 s |
| 最大电压 | 277 V ac, 30 V dc | 工作模式 | Delay on Operate |
| 开通延迟时间 | :1.2s | 极数 | :2 |
| 功率 - 冷却 | :3VA | 供电电压 | 120 VAC |
| 最大额定电流 | 10 A | 输入电压（最大） | :120VAC |
| 开关功能/额定值 | DPDT | 启动定时方式 | Input Voltage |
| 触点额定值 @ 电压 | 10 A at 30 VDC, 277 VAC | ||
机械参数
| 重量 | 0.095 | 触点形式 | 2 Form C (DPDT-BM) |
| 安装类型 | Socket | 端子类型 | Quick Connect |
| 触头材料 | Silver Cadmium Oxide Alloy | 端接样式 | Quick Disconnect |
| 典型触点布局 | :DPDT | ||
产品信息
| 功能 | On-Delay | 继电器类型 | Integrated |
| 行业别名 | 7-1393137-5, CLB-51-70120 | 其他规格 | :120s |
| 定时调节方式 | Hand Dial | ||
环境参数
| 工作范围 | 1.2 → 120 s | ||
文档与媒体
PDF 文档
