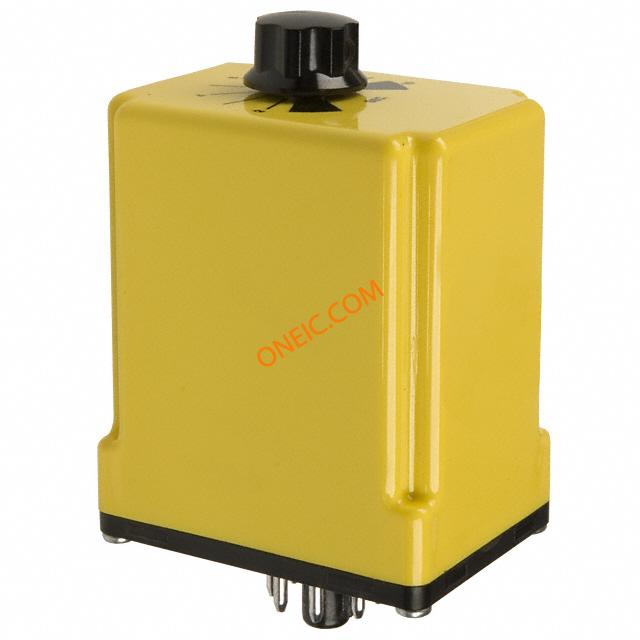

CDB-38-70091
| 制造商 | TE Connectivity Ltd. |
| 描述 | Time Delay & Timing Relays DPDT 120VAC 10A 0.1-5sec.DELAY RELAY RELAY TIME DELAY DPDT 120VAC 11 Electromechanical Relay DPDT 10A 120VAC Socket Electromechanical Relay DPDT 10A 120VAC Socket Product Highlights:CD SeriesInput Voltage = 120 VACContact Arrangement = 2 Form C, DPDT, 2 C/OContact Rating = 10A @ 30 VDC or 277 VACMounting Options = Socket CDB-38-70091=TIME DELAY REL |
| 分类 |
商业参数
| 交货时间 | 84 Days | 其他名称 | 5-1393136-2 |
| 子类别 | Electromechanical Relay | 零件号别名 | 5-1393136-2 |
| 产品类别 | Time Delay & Timing Relays | 标准包装数量 | 6 |
合规参数
| RoHS | Lead free / RoHS non-compliant | ||
电气参数
| 电路 | DPDT (2 Form C) | 操作方式 | 释放延迟 |
| 延迟时间 | 0.1 Sec ~ 5 Sec | 输出类型 | Mechanical Relay |
| 量程（°/s） | 0.1 s to 5 s | 工作模式 | Delay on Release |
| 供电电压 | 120 VAC | 连接器阻抗 | 2 Form C，DPDT，2 C/O |
| 最大额定电流 | 10 | 输入电压（最大） | 120 |
| 启动定时方式 | Input Voltage | 触点额定值 @ 电压 | 10 A at 30 VDC, 277 VAC |
| 开关时间（Ton, Toff）（最大） | .1 – 5 | ||
机械参数
| 触点形式 | 2 Form C (DPDT-BM) | 致动器类型 | 交流 |
| 安装类型 | Socket | 外壳材料（壳体） | Yellow Plastic Case |
| 插入件材料 | 银氧化镉 | 端接样式 | 11 Pin Octal Plug |
| 面板尺寸 | 61.1 x 45.2 x 91.9 mm [ 2.407 x 1.78 x 3.55 in ] | ||
产品信息
| 功能 | Off-Delay | 继电器类型 | Integrated |
| 产品子类型 | 机电式继电器 | 控制方式 | 旋钮 |
| 行业别名 | 5-1393136-2, CDB-38-70091 | 其他规格 | ±1% |
| 定时调节方式 | Hand Dial | ||
环境参数
| 工作温度 | -40 – 55 | ||
