点击放大查看

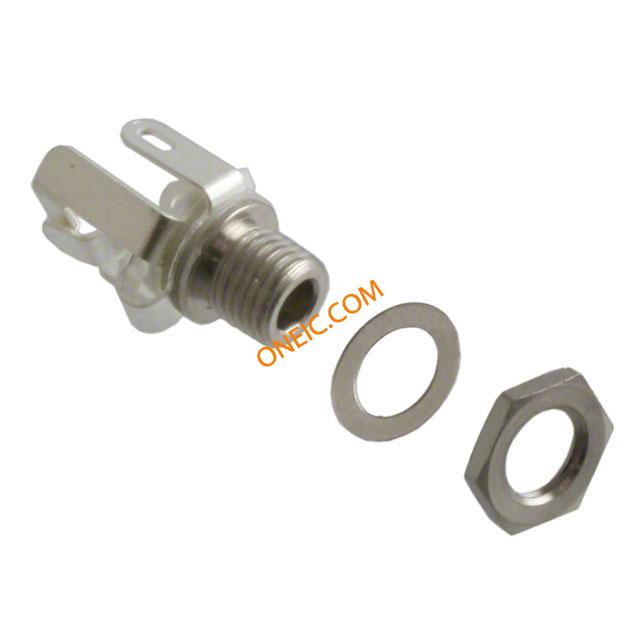

TR2A
| 制造商 | |
| 描述 | Phone Connectors 2C 2.5MM PNL JAX Conn Audio F 2 POS Solder ST Panel Mount 3 Terminal 1 Port PHONO JACK .101 SUBMINI 2COND Jack; Phone; 2; 2; Nickel Plated Copper Alloy; 0.19 in. SOCKET, 2.5MM JACK, 2POLE Jack,Phone;2;2;NickelPlatedCopperAlloy;0.19in. |
| 分类 |
商业参数
| 交货时间 | 44 Days | 商标名 | Micro-Jax |
| 子类别 | Connector Audio and Video | 产品类别 | Phone Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85369010 |
电气参数
| 信号线数 | Mono | 额定电压 | 250 V |
| 供电电压 | 2.5 mm | 最大额定电流 | 0.12 |
| 最小输入电压 | 125VAC | 开关功能/额定值 | Switched |
| 最小供电电压 | 125VAC | ||
机械参数
| 重量 | 0.1 | 屏蔽 | Unshielded |
| 端接方式 | Solder | 重量（g） | 2.20000 |
| 引脚直径 | :2.5mm | 外壳颜色 | Black |
| 安装类型 | Panel Mount | 连接器类型 | Phone Jack |
| 接触镀层 | Silver | 安装样式 | Chassis (Panel) |
| 本体材料 | :Metal | 面板厚度 | :2.3mm |
| 触头材料 | Copper Alloy | 壳体材料 | Plastic |
| 端接样式 | Screw | 触点数 | 2 |
| 接触件端接 | :Solder | 按钮/帽颜色 | Silver |
| 法兰下方引脚尺寸 | :2.5mm | 插头/配合插头直径（类型） | 2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone |
| 触点材料 - 镀层 | Silver | 第一连接器安装类型 | :Panel |
产品信息
| 类型 | Audio | 连接器性别 | F |
| 系列 | Micro-Jax | 产品特性 | Mounting Hardware, Thread Lock |
| 端口数 | 1 | 内部开关 | Single Switch |
| 位置/触点数量 | 2 Conductors, 3 Contacts | ||
环境参数
| 工作温度 | -20°C ~ 65°C | 结工作温度 | -20C |
