点击放大查看

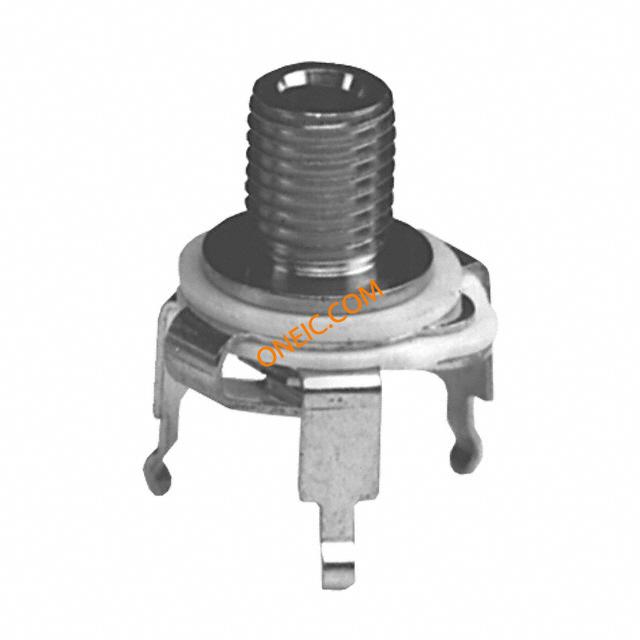

TR1PC
| 制造商 | |
| 描述 | Phone Connectors MICRO JAX ASSEMBLY-P Conn Audio F 2 POS Solder ST Thru-Hole 3 Terminal 1 Port PHONO JACK .101 SUBMINI 2COND MICROJAXASSEMBLYP |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 交货时间 | 44 Days | 子类别 | Connector Audio and Video |
| 产品类别 | Phone Connectors | 标准包装数量 | 1 |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 信号线数 | Mono | 最大额定电流 | 0.12 |
| 最小输入电压 | 125VAC | 开关功能/额定值 | Switched |
机械参数
| 屏蔽 | Unshielded | 端接方式 | Solder |
| 外壳颜色 | Silver | 安装类型 | Through Hole |
| 连接器类型 | Phone Jack | 接触镀层 | Tin |
| 触头材料 | Copper Alloy | 壳体材料 | Brass |
| 触点数 | 2 | 按钮/帽颜色 | Silver |
| 插头/配合插头直径（类型） | 2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone | 触点材料 - 镀层 | Tin |
产品信息
| 类型 | Audio | 连接器性别 | F |
| 产品特性 | Thread Lock | 端口数 | 1 |
| 内部开关 | Single Switch | 位置/触点数量 | 2 Conductors, 3 Contacts |
环境参数
| 工作温度 | -20°C ~ 65°C | ||
