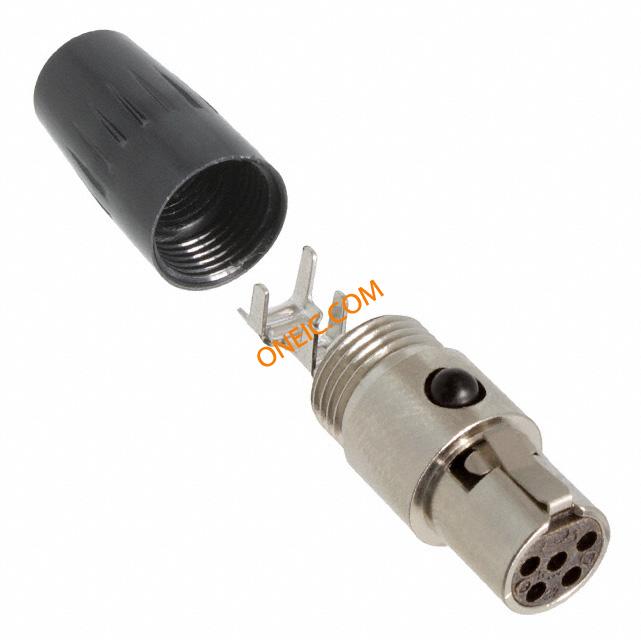

TA5FLX
| 制造商 | |
| 描述 | XLR Connectors 5P PLUG FEMALE Conn Mini XLR Connector F 5 POS Solder ST Cable Mount 5 Terminal 1 Port CONN PLUG CORD MINI 5POS FEMALE DIN Plug; Straight Female Cord Plug; 510000 Megohms (Min.) @ 500 VDC; 5 A DINPlug;StraightFemaleCordPlug;510000Megohms(Min.)@500VDC;5A |
| 分类 |
商业参数
| 产品类别 | XLR Connectors | 标准包装数量 | 1 |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 额定电压 | 125VAC | 供电电压 | Mini (Tiny) XLR |
| 最大额定电流 | 4A | 最小输入电压 | 125VAC |
机械参数
| 直径 | 10.5 | 包装方式 | Bulk |
| 方向 | Keyed | 端接方式 | Solder |
| 安装类型 | Cable Mount | 外壳镀层 | Nickel |
| 连接器类型 | Plug, Female Sockets | 接触镀层 | Silver |
| 紧固类型 | Latch Lock | 安装样式 | Cable |
| 触头材料 | Copper Alloy | 壳体材料 | Zinc Die Cast |
| 总长度 | 48 | 端接样式 | Solder |
| 触点数 | 5 | 位数 | 5 |
| 外壳尺寸-插件 | Mini XLR | 外壳材料及表面处理 | Copper, Nickel Plated |
产品信息
| 类型 | Mini XLR Connector | 连接器性别 | F |
| 系列 | TA | 产品特性 | Strain Relief |
| 产品子类型 | Connectors | 端口数 | 1 |
环境参数
| 工作温度 | -55°C ~ 85°C | ||
