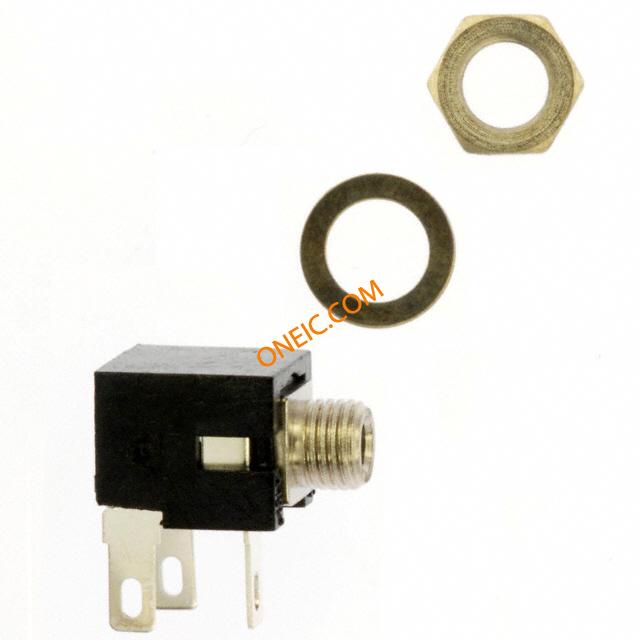

MDSL2ARA
| 制造商 | |
| 描述 | Conn Audio F 2 POS Solder Lug RA Panel Mount 3 Terminal 1 Port CONN JACK PHONEMINI RA 2POS .101inMICROJACK,2-conductor,right-anglesolderlugsand#10-48threadedbush |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 交货时间 | 44 Days | 其他名称 | SC1045 |
| 子类别 | Connector Audio and Video | 标准包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 信号线数 | Mono | 最大额定电流 | 0.12 |
| 最小输入电压 | 125VAC | 最小供电电压 | 125VAC |
机械参数
| 包装方式 | Bulk | 屏蔽 | Unshielded |
| 端接方式 | Solder Lug | 外壳颜色 | Black |
| 安装类型 | Panel Mount | 连接器类型 | Phone Jack |
| 接触镀层 | Silver | 安装样式 | Panel |
| 触头材料 | Copper Alloy | 壳体材料 | Plastic |
| 触点数 | 2 | 按钮/帽颜色 | Silver |
| 插头/配合插头直径（类型） | 2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone | 触点材料 - 镀层 | Nickel |
产品信息
| 类型 | Audio | 连接器性别 | F |
| 产品特性 | Mounting Hardware, Thread Lock | 端口数 | 1 |
| 内部开关 | Single Switch | 位置/触点数量 | 2 Conductors, 3 Contacts |
环境参数
| 工作温度 | -20°C ~ 65°C | 结工作温度 | -20C |
文档与媒体
PDF 文档
PDF 文档
