点击放大查看

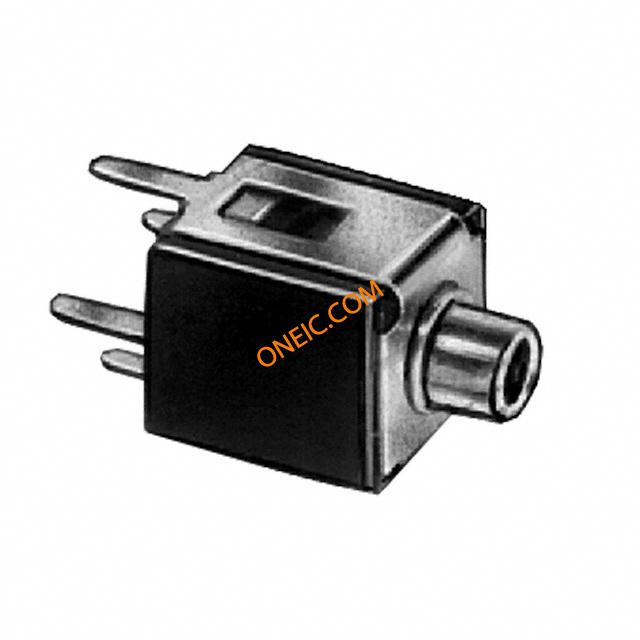

MDPC2A
| 制造商 | |
| 描述 | Phone Connectors 2.5mm PC MICRO JACK Conn Audio F 2 POS Solder ST Thru-Hole 3 Terminal 1 Port CONN JACK PHONE MINI 2POS .101inMICROJACK,2-conductorclosedcircuitjackwithPCterminals Socket; Jack 2.5 mm; female; mono, with on/off switch; THT |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 交货时间 | 44 Days | 商标名 | Micro-Jax |
| 其他名称 | SC1044 | 子类别 | Connector Audio and Video |
| 产品类别 | Phone Connectors | 标准包装数量 | 100 |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 信号线数 | Mono | 最大额定电流 | 0.12 |
| 最小输入电压 | 125VAC | 开关功能/额定值 | Not Switched |
机械参数
| 颜色 | Black | 重量 | 2.1 g |
| 包装方式 | Bulk | 屏蔽 | Unshielded |
| 方向 | Vertical | 端接方式 | Solder |
| 外壳颜色 | Black | 安装类型 | Through Hole |
| 连接器类型 | Phone Jack | 接触镀层 | Silver |
| 触头材料 | Copper Alloy | 壳体材料 | Plastic |
| 包装数量 | 1 | 连接器 - 电缆 | socket |
| 端接样式 | Through Hole | 触点数 | 2 |
| 按钮/帽颜色 | Silver | 插头/配合插头直径（类型） | 2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone |
| 触点材料 - 镀层 | Nickel | ||
产品信息
| SPG | 1 | 类型 | Audio |
| 连接器性别 | F | 系列 | Micro-Jax |
| 端口数 | 1 | 单元数量 | 1 |
| 内部开关 | Single Switch | 位置/触点数量 | 2 Conductors, 3 Contacts |
环境参数
| 工作温度 | -20°C ~ 65°C | ||
文档与媒体
相关型号
850X
Switchcraft
Phone Connectors 2 COND 2.5MM BLK Conn Phone Plug PL 2 POS Solder Lug ST Cable Mount 2 Terminal 1 Port CONN MICROPLUG PHONE BLACK Plug; Phone; Solder Lug; 1.106; Nickel-Plated Copper Alloy; 0.125 in. PLUG, 2.5MM JACK, 2POLE Plug,Phone;SolderLug;1.106;Nickel-PlatedCopperAlloy;0.125in.
¥17.0000
详情

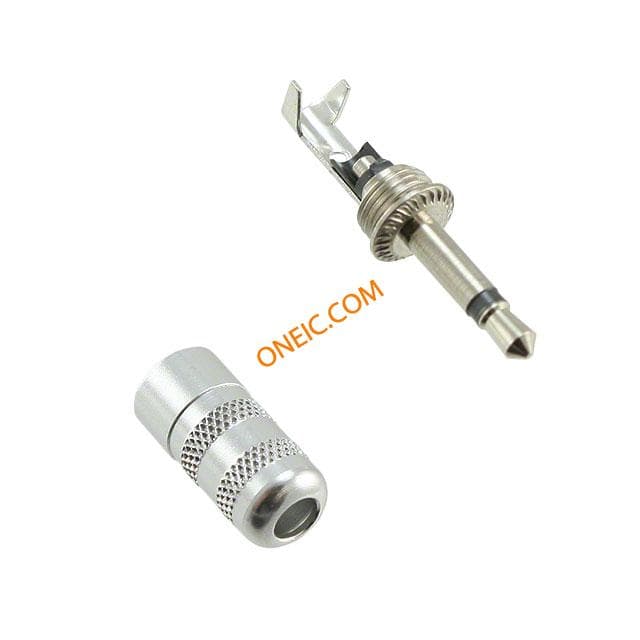

880X
