点击放大查看

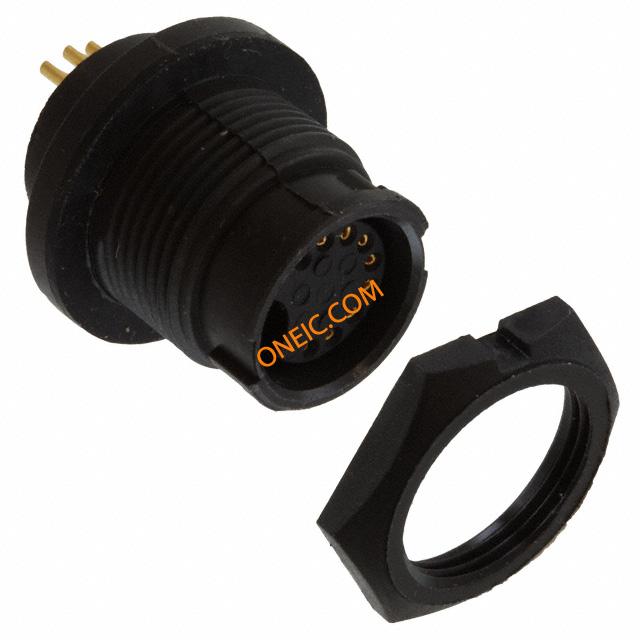

EN3P9F26X
| 制造商 | |
| 描述 | Standard Circular Connector 9P FEMALE PANEL Conn Weathertight F 9 POS Solder Cup ST Panel Mount 9 Terminal 1 Port Bulk CONN RCPT 9POS FEMALE PANEL #26 9PINPANELFEMALER |
| 分类 |
商业参数
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 3A | ||
机械参数
| 直径 | 20.62 | 包装方式 | Bulk |
| 出线方向 | No | 方向 | Keyed |
| 端接方式 | Solder Cup | 触头类型 | 9Signal |
| 安装类型 | Panel Mount | 连接器类型 | Receptacle, Female Sockets |
| 接触镀层 | Gold Over Nickel | 紧固类型 | Bayonet Lock |
| 触头材料 | Copper Alloy | 总长度 | 25.32 |
| 第一触头极性 | F | 触点数 | 9 |
| 位数 | 9 | 外壳材料及表面处理 | Thermoplastic Polymer, Glass Fiber |
产品信息
| 类型 | Weathertight | 连接器性别 | RCP |
环境参数
| 防护等级 | IP66/68 - Dust Tight, Water Resistant, Waterproof | ||
