点击放大查看

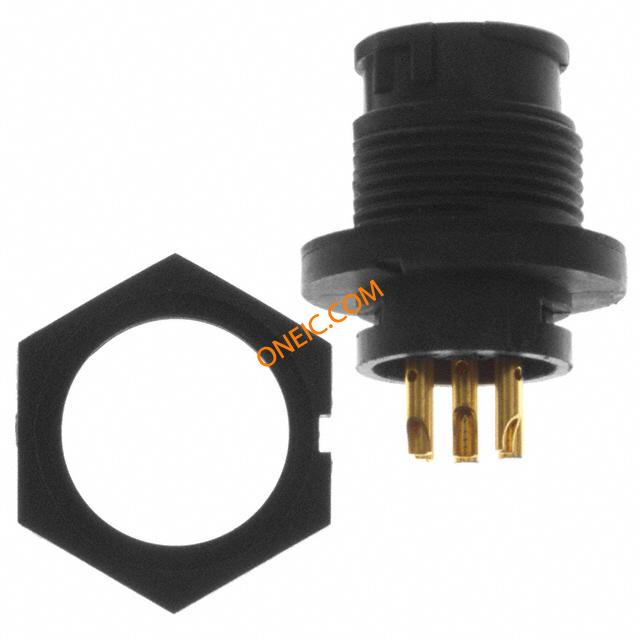

EN3P6MX
| 制造商 | |
| 描述 | Standard Circular Connector 6P MALE TYPE CONN RCPT 6POS MALE PANEL #20 Conn Mini Weathertight M 6 POS Solder Cup ST Panel Mount 6 Terminal 1 Port Bulk PANELCONNECTOR,MALE,WEATHERTIGHT,#20CONTACTS,6PIN |
| 分类 |
商业参数
| 商标名 | EN3 | 其他名称 | SC267 |
| 产品类别 | Standard Circular Connector | 标准包装数量 | 1 |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant | 材料阻燃等级 | UL94-V0 |
电气参数
| 额定电压 | 600V | 最大额定电流 | 7.5A |
机械参数
| 包装方式 | Bulk | 导线线规 | 20 |
| 方向 | Keyed | 外壳样式 | Receptacle |
| 端接方式 | Solder Cup | 安装类型 | Panel Mount, Bulkhead - Front Side Nut |
| 外壳镀层 | Gold over Nickel | 行程角度 | Straight |
| 连接器类型 | Receptacle, Male Pins | 接触镀层 | Gold |
| 紧固类型 | Bayonet Lock | 壳体材料 | ThermoplasticRubber |
| 主要材料 | Sealed | 端接样式 | Solder Cup |
| 第一触头极性 | Pin (Male) | 触点数 | 6 |
| 位数 | 6 | 外壳材料及表面处理 | Thermoplastic Polymer, Glass Fiber |
产品信息
| 类型 | PanelPlug | 系列 | EN3 |
| 制造商全称 | EN3Series | 产品子类型 | Connectors |
| 应用细节 | Commercial | ||
环境参数
| 防护等级 | IP66/68 - Dust Tight, Water Resistant, Waterproof | ||
