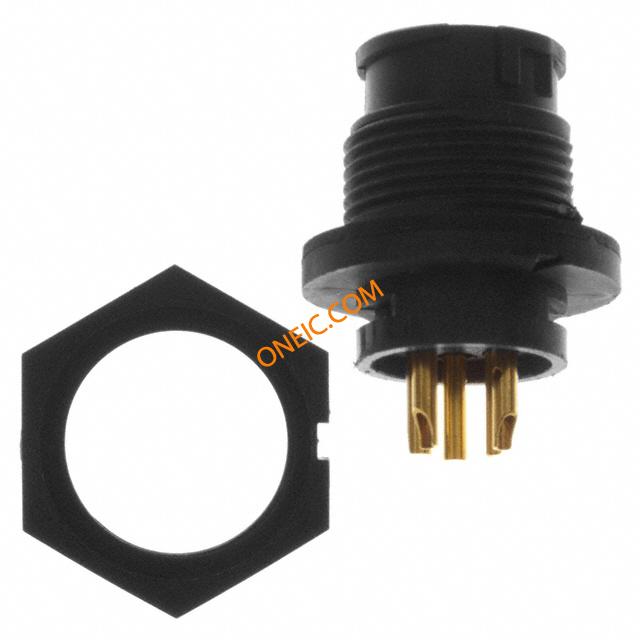

EN3P5FX
| 制造商 | |
| 描述 | Standard Circular Connector 5P FEMALE PANEL TYPE Conn Circular F 5 POS Solder Cup ST Panel Mount 5 Terminal 1 Port Bulk CONN RCPT 5POS FEMALE PANEL #20 PANELCONNECTOR,FEMALE,WEATHERTIGHT,#20CONTACTS,5PIN |
| 分类 |
商业参数
| 商标名 | EN3 | 其他名称 | SC264 |
| 产品类别 | Standard Circular Connector | 标准包装数量 | 1 |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94-V0 | ||
电气参数
| 额定电压 | 600V | 最大额定电流 | 7.5A |
机械参数
| 包装方式 | Bulk | 导线线规 | 20 |
| 方向 | Keyed | 外壳样式 | Receptacle |
| 端接方式 | Solder Cup | 触头类型 | 5Signal |
| 安装类型 | Panel Mount | 外壳镀层 | Gold over Nickel |
| 行程角度 | Straight | 连接器类型 | Receptacle, Female Sockets |
| 接触镀层 | Gold Over Nickel | 紧固类型 | Bayonet Lock |
| 触头材料 | Copper Alloy | 壳体材料 | ThermoplasticRubber |
| 总长度 | 24.2 | 主要材料 | Sealed |
| 端接样式 | Solder Cup | 第一触头极性 | F |
| 触点数 | 5 | 位数 | 5 |
| 外壳材料及表面处理 | Thermoplastic Polymer, Glass Fiber | ||
产品信息
| 类型 | Circular | 连接器性别 | RCP |
| 系列 | EN3 | 制造商全称 | EN3Series |
| 产品子类型 | Connectors | 应用细节 | Commercial |
环境参数
| 防护等级 | IP66/68 - Dust Tight, Water Resistant, Waterproof | ||
