点击放大查看
EN3P5FRAPCX
| 制造商 | |
| 描述 | Standard Circular Connector 5P R/A RCB Conn Circular SKT 5 POS Solder RA Thru-Hole 5 Terminal 1 Port Bulk CONN RCPT 5POS FEM R/A PANEL #20 EN3 R/A PCB PANEL MOUNT 5way socket EN3R/APCBPANELMOUNT5waysocket Switchcraft EN3 系列 5路 面板安装 直角 连接器 插头 , 母触点, 卡口式接合 |
| 分类 |
商业参数
| 商标名 | EN3 | 产品类别 | Standard Circular Connector |
| 标准包装数量 | 100 | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS non-compliant | 欧盟RoHS | Compliant |
| 抗辐射加固 | No | ||
电气参数
| 额定电压 | 600 V ac | 最大额定电流 | 4A |
机械参数
| 深度 | 31.73 mm | 外形尺寸(长x宽) | 20.62mm |
| 直径 | 20.62 mm | 包装方式 | Bulk |
| 出线方向 | No | 外壳尺寸 | 20.62mm |
| 方向 | Keyed | 外壳样式 | Receptacle |
| 端接方式 | Solder | 触点形式 | 5Signal |
| 触头类型 | 5Signal | 安装类型 | Through Hole |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Gold |
| 紧固类型 | Bayonet Lock | 安装样式 | Panel |
| 外壳材料（壳体） | Plastic | 连接器用途 | Bayonet |
| 触头材料 | Copper Alloy | 壳体材料 | Thermoplastic |
| 端接排数 | 焊接 | 端接样式 | Crimp / Solder |
| 第一触头极性 | SKT | 配接方向 | Bayonet |
| 触点数 | 5 | 位数 | 5 |
| 外壳材料及表面处理 | Thermoplastic Polymer, Glass Fiber | ||
产品信息
| 类型 | Circular | 连接器性别 | PL |
| 系列 | EN3 | 已删除 | Compliant |
| 产品子类型 | Connectors | 射频系列/标准 | EN3 |
| 输出配置 | Panel Mount, Bulkhead; Through Hole, Right Angle | ||
环境参数
| 密封等级 | IP66, IP68 | 防护等级 | IP66/68 - Dust Tight, Water Resistant, Waterproof |
文档与媒体
相关型号
EN3C5MCKX
Switchcraft
Standard Circular Connector 5 PIN CRIMP CORD PLU CONN PLUG 5POS MALE CORD #20
EN3PQCA
Switchcraft
Standard Circular Connector EN3 PANEL ADAPTER EN3 QUICK DISCONNECT EN3QUICKDISCONNECT
EN3CAP
Switchcraft
Standard Circular Connector PROTECTIVE CAP Connector Accessories Cap CAP DUST WEATHRTIGHT FOR EN3 SRS SEALING CAP CapforEN3miniweathertightconnectorseries Protection cover; EN3 Protective cap, EN3CAP, Switchcraft

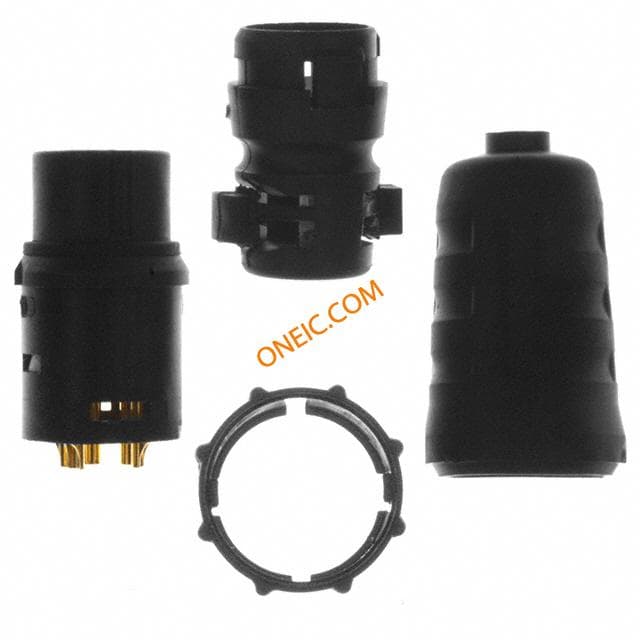

EN3C5MX
