点击放大查看

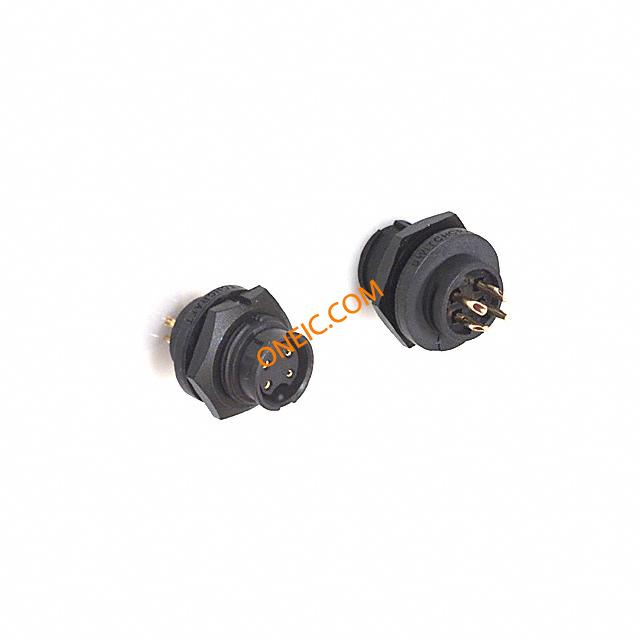

EN3P4F
| 制造商 | |
| 描述 | Standard Circular Connector 4P FEMALE PANEL TYPE Conn Mini Weathertight F 4 POS Solder Cup ST Panel Mount 4 Terminal 1 Port Bulk CONN RCPT 4POS FEMALE PANEL #20 Socket; Connector: circular; EN3; female; PIN:4; external bayonet Device bushing EN3, 4-pin 4, EN3P4F, Switchcraft |
| 分类 |
商业参数
| 交货时间 | 44 Days | 其他名称 | SC1167 |
| 子类别 | Connector Circular | 产品类别 | Standard Circular Connector |
| 标准包装数量 | 100 | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Not Compliant |
电气参数
| 额定电压 | 600V AC | 极数 | 4 |
| 最大额定电流 | 7.5A | 额定电流 - 设备输入口 | 7.5 |
| 保护电压（VP）（2416） | IP 68 | ||
机械参数
| 重量 | 7.2 g | 包装方式 | Bulk |
| 出线方向 | No | 方向 | Keyed |
| 外壳样式 | Receptacle | 端接方式 | Solder Cup |
| 触头类型 | 4Signal | 安装类型 | Panel Mount |
| 外壳镀层 | Gold over Nickel | 连接器类型 | Receptacle, Female Sockets |
| 接触镀层 | Gold Over Nickel | 紧固类型 | Bayonet Lock |
| 安装样式 | for panel mounting | 锁定特性 | external bayonet |
| 触头材料 | Copper Alloy | 壳体材料 | Plastic |
| 总长度 | 25.77 | 包装数量 | 5 |
| 连接器 - 电缆 | socket | 端接样式 | Solder Cup |
| 第一触头极性 | Socket (Female) | 触点数 | 4 |
| 位数 | 4 | 第一连接器极性 | Female |
| 外壳材料及表面处理 | Thermoplastic Polymer, Glass Fiber | 触点材料 - 镀层 | gold plated |
产品信息
| SPG | 5 | 类型 | Mini Weathertight |
| 系列 | EN3 | 产品子类型 | Connectors |
| 适配器系列 | EN3 | 单元数量 | 1 |
| 适用产品/相关产品 | EN3P4FK | ||
环境参数
| 机械寿命 | Obsolete | 防护等级 | IP66/68 - Dust Tight, Water Resistant, Waterproof |
| 工作温度 | -40...+65 °C | ||
