点击放大查看

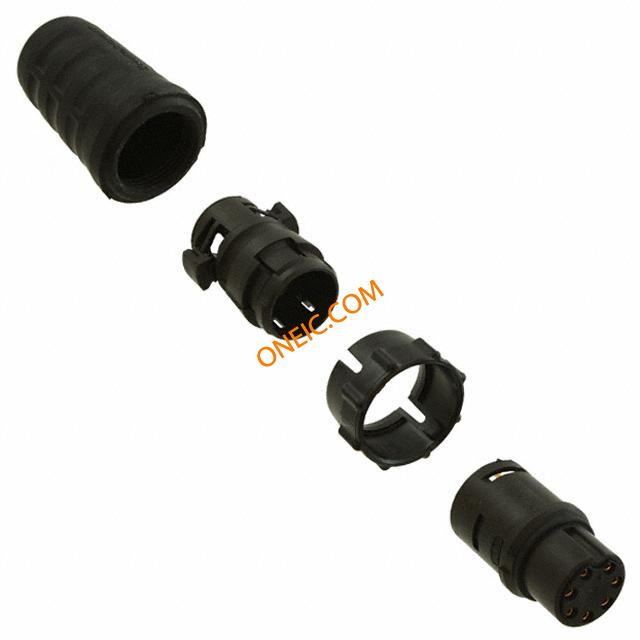

EN3C7FX

制造商	Switchcraft, Inc.
描述	Standard Circular Connector 7P FEMALE CORD TYPE Conn Mini Weathertight F 7 POS Solder Cup ST Cable Mount 7 Terminal 1 Port Bulk CONN PLUG 7POS FEMALE CORD #20 CORDCONNECTOR,FEMALE,WEATHERTIGHT,#20CONTACTS,7PIN
分类	连接器解决方案圆形连接器标准圆形连接器

对参数有疑问？问 AI 助手

商业参数

商标名	EN3	产品类别	Standard Circular Connector
标准包装数量	100	工厂包装数量	100

合规参数

RoHS	Lead free / RoHS Compliant	欧盟RoHS	Compliant
材料阻燃等级	UL94-V0

电气参数

额定电压

600V

最大额定电流

6.5A

机械参数

包装方式	Bulk	导线线规	20
方向	Keyed	外壳样式	Plug
端接方式	Solder Cup	触头类型	7Signal
安装类型	Cable Mount	外壳镀层	Gold over Nickel
行程角度	Straight	连接器类型	Plug, Female Sockets
接触镀层	Gold	紧固类型	Bayonet Lock
壳体材料	ThermoplasticRubber	主要材料	Sealed
端接样式	Solder Cup	第一触头极性	F
触点数	7	位数	7
外壳材料及表面处理	Thermoplastic Polymer, Glass Fiber

产品信息

类型	Mini Weathertight	连接器性别	F
系列	EN3	产品特性	Cable Clamp
制造商全称	EN3Series	产品子类型	Connectors
应用细节	Commercial

环境参数

防护等级

IP66/68 - Dust Tight, Water Resistant, Waterproof

文档与媒体

PDF 文档

EN3 Series Bulletin

PDF 文档

EN3 Series Part Numbering
