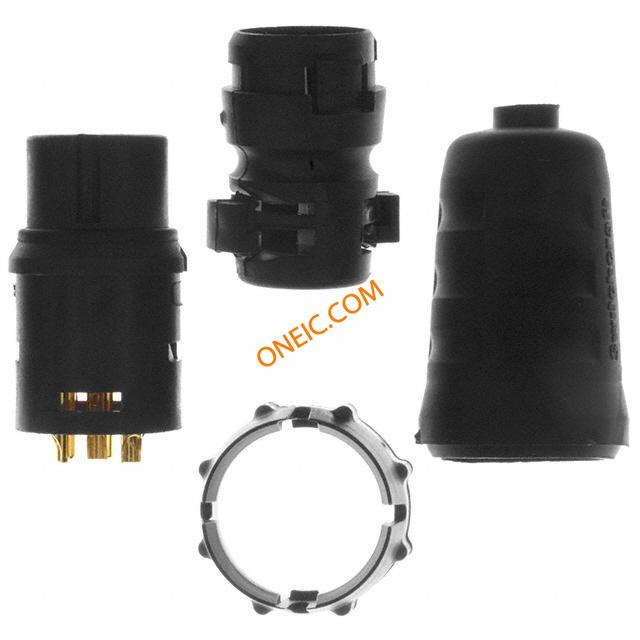

EN3C6MX
| 制造商 | |
| 描述 | Standard Circular Connector 6P MALE CORD TYPE Conn Mini Weathertight M 6 POS Solder Cup ST Cable Mount 6 Terminal 1 Port Bulk CONN PLUG 6POS MALE CORD #20 CORDCONNECTOR,MALE,WEATHERTIGHT,#20CONTACTS,6PIN |
| 分类 |
商业参数
| 商标名 | EN3 | 其他名称 | SC258 |
| 产品类别 | Standard Circular Connector | 标准包装数量 | 1 |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94-V0 | ||
电气参数
| 额定电压 | 600V | 最大额定电流 | 7.5A |
机械参数
| 包装方式 | Bulk | 导线线规 | 20 |
| 方向 | Keyed | 外壳样式 | Plug |
| 端接方式 | Solder Cup | 触头类型 | 6Signal |
| 安装类型 | Cable Mount | 外壳镀层 | Gold over Nickel |
| 行程角度 | Straight | 连接器类型 | Plug, Male Pins |
| 接触镀层 | Gold | 紧固类型 | Bayonet Lock |
| 壳体材料 | ThermoplasticRubber | 主要材料 | Sealed |
| 端接样式 | Solder Cup | 第一触头极性 | M |
| 触点数 | 6 | 位数 | 6 |
| 外壳材料及表面处理 | Thermoplastic Polymer, Glass Fiber | ||
产品信息
| 类型 | Mini Weathertight | 连接器性别 | M |
| 系列 | EN3 | 产品特性 | Cable Clamp |
| 制造商全称 | EN3Series | 产品子类型 | Connectors |
| 应用细节 | Commercial | ||
环境参数
| 防护等级 | IP66/68 - Dust Tight, Water Resistant, Waterproof | ||
文档与媒体
相关型号
EN3P6FPX
Switchcraft
Standard Circular Connector 6 PIN MINI FEM.PANEL Conn Circular F 6 POS Solder ST Panel Mount 6 Terminal 1 Port Bulk CONN RCPT 6POS FEMALE PANEL #20 Conn;Cir;CPC;Plastic;Straight;6Pos;PCTail;Socket;IP67/IP68w/cover
EN3CLAMPL
Switchcraft
Cable Mounting & Accessories LARGE CABLE CLAMP CABLE CLAMP, LARGE, CABLE CLAMP LARGE CABLECLAMP,LARGE,
EN3L6FKX
Switchcraft
Standard Circular Connector EN3 INLINE 6PIN FEM. CONN RCPT 6POS FEM IN-LINE #20
EN3PH6F20X
Switchcraft
Standard Circular Connector 6 PIN PANEL FEMALE # CONN FEMALE HOUSING 6PIN #20
EN3P6FKX
Switchcraft
Standard Circular Connector SOLDER PANEL MOUNT K CONN RCPT 6POS FEMALE PANEL #20
EN3P6FX
Switchcraft
Standard Circular Connector 6P FEMALE TYPE Conn Circular F 6 POS Solder Cup ST Panel Mount 6 Terminal 1 Port Bulk CONN RCPT 6POS FEMALE PANEL #20 PANELCONNECTOR,FEMALE,WEATHERTIGHT,#20CONTACTS,6PIN
EN3L6FX
Switchcraft
Standard Circular Connector 6P FEM IN-LINE TYPE Conn Circular F 6 POS Solder Cup ST Cable Mount 6 Terminal 1 Port Bulk CONN RCPT 6POS FEM IN-LINE #20 IN-LINECONNECTOR,FEMALE,WEATHERTIGHT,#20CONTACTS,6PIN

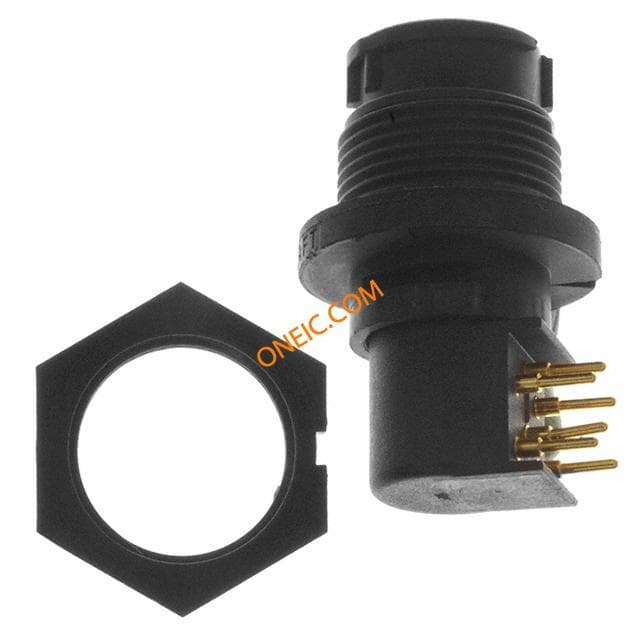

EN3P6FRAPCX
Switchcraft
Standard Circular Connector 6P R/A PCB CONN RCPT 6POS FEM R/A PANEL #20 6POSR/APCBEN3
EN3CLAMPX
Switchcraft
Standard Circular Connector CLAMP FOR EN3 SERIES CONNECTORS CONN CLAMP FOR EN3 SERIES
EN3L6FCKX
Switchcraft
Standard Circular Connector EN3 INLINE 6PIN FEM CONN RCPT 6POS FEM IN-LINE #20
EN3P6FCKX
Switchcraft
Standard Circular Connector 6 PIN CRIMP PANEL MT CONN RCPT 6POS FEMALE PANEL #20
EN3L6FCX
Switchcraft
Standard Circular Connector EN3 INLINE 6PIN FEMA CONN RCPT 6POS FEM IN-LINE #20
EN3P6FCX
Switchcraft
Standard Circular Connector EN3 6 PIN PANEL FEMA CONN RCPT 6POS FEMALE PANEL #20 Conn Mini Weathertight F 6 POS Crimp ST Panel Mount 6 Terminal 1 Port Bulk

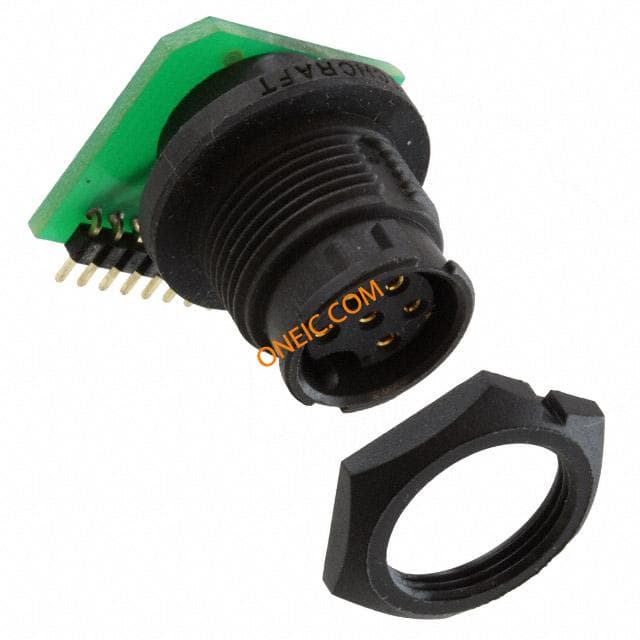

EN3P6FRAPCBN
Switchcraft Inc.
CONN RCPT 6POS PNL MNT RA SKT Standard Circular Connector FEML 6 PIN RA PCB NARROW IP68 CONNECTOR, CIRCULAR, 6POS, PCB

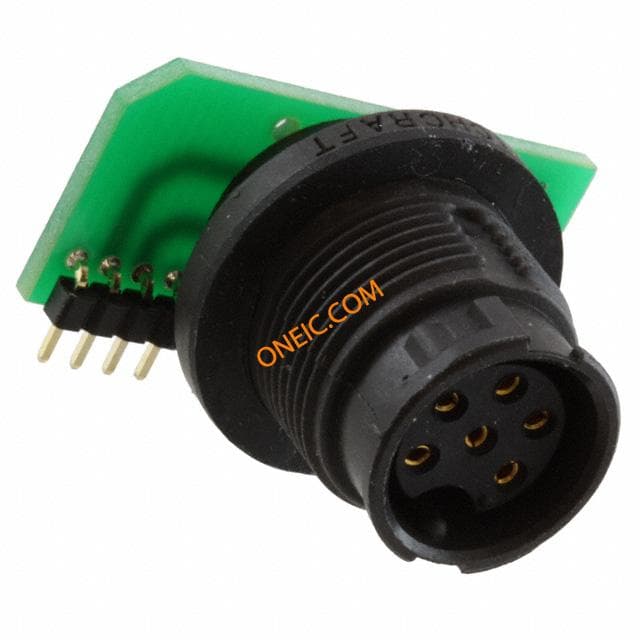

EN3P6FRAPCBW
