点击放大查看

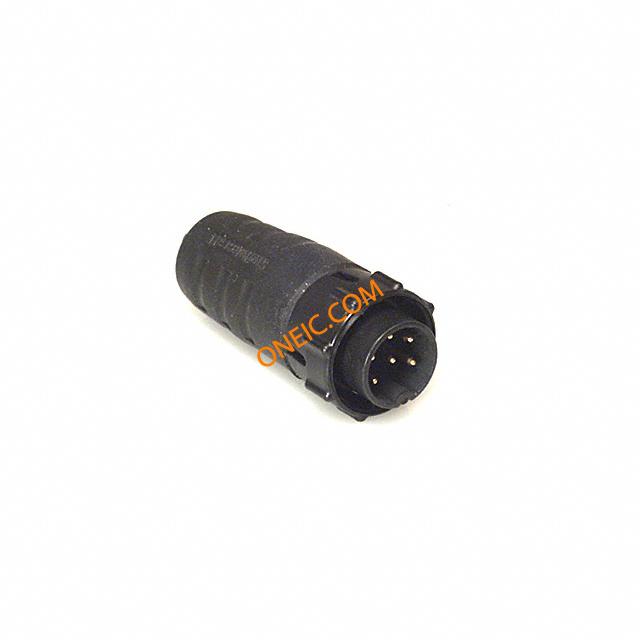

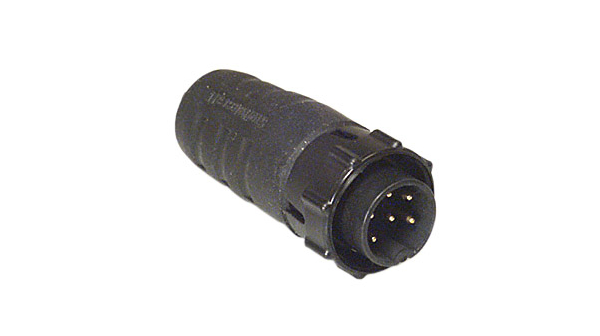

EN3C6M
| 制造商 | |
| 描述 | Conn Mini Weathertight M 6 POS Solder Cup ST Cable Mount 6 Terminal 1 Port Bulk CONN PLUG 6POS MALE CORD #20 PLUG, FREE, 6WAY Cable plug EN3, 6-pin 6, EN3C6M, Switchcraft |
| 分类 |
商业参数
| 交货时间 | 365 Days | 其他名称 | SC1163 |
| 子类别 | Connector Circular | 标准包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS non-compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Not Compliant | 海关税号 | 85369010 |
| 认证机构 | :UL | 材料阻燃等级 | :UL94V-0 |
电气参数
| 额定电压 | :600V | 接触电阻 | :3.1mohm |
| 介电强度 | :600V/m | 最大额定电流 | 7.5A |
| 绝缘电阻 | :100Mohm | ||
机械参数
| 重量 | 0.005 | 直径 | 17.86 |
| 包装方式 | Bulk | 出线方向 | Yes |
| 方向 | Keyed | 端接方式 | Solder Cup |
| 触头类型 | 6Signal | 安装类型 | Cable Mount |
| 连接器类型 | Plug, Male Pins | 接触镀层 | Gold Over Nickel |
| 紧固类型 | Bayonet Lock | 插入角度 | :- |
| 本体材料 | :Thermoplastic Rubber | 触头材料 | Copper Alloy |
| 总长度 | 39.83 | 第一触头极性 | M |
| 触点数 | 6 | 接触件端接 | :Solder |
| 位数 | 6 | 外壳尺寸-插件 | :- |
| 外壳材料及表面处理 | Thermoplastic Polymer, Glass Fiber | 第一连接器安装类型 | :Cable |
| 外径-未扩张 | :7mm | ||
产品信息
| 类型 | Mini Weathertight | 连接器性别 | :Plug |
| 系列 | :EN3 | 产品特性 | Cable Clamp |
| 适用产品/相关产品 | EN3C6MK | ||
环境参数
| 插拔次数 | :600 | NEMA 机架尺寸 | :IP68 |
| 防护等级 | IP66/68 - Dust Tight, Water Resistant, Waterproof | 工作温度 | :65°C |
