EN3C6FCX
| 制造商 | |
| 描述 | Standard Circular Connector 6 PIN CORD FEMALE Conn Circular F 6 POS Crimp ST Cable Mount 6 Terminal 1 Port Bulk CONN PLUG 6POS FEMALE CORD #20 EN3,6PIN,CORD,FEMAL |
| 分类 |
商业参数
| 商标名 | EN3 | 产品类别 | Standard Circular Connector |
| 标准包装数量 | 1 | 工厂包装数量 | 100 |
合规参数
| RoHS | No | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 7.5A | ||
机械参数
| 直径 | 18 | 包装方式 | Bulk |
| 出线方向 | Yes | 方向 | Keyed |
| 外壳样式 | Plug | 端接方式 | Crimp |
| 触头类型 | 6Signal | 安装类型 | Cable Mount |
| 外壳镀层 | Gold over Nickel | 连接器类型 | Plug, Female Sockets |
| 接触镀层 | Gold Over Nickel | 紧固类型 | Bayonet Lock |
| 触头材料 | Copper Alloy | 总长度 | 55.9 |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 6 | 位数 | 6 |
| 外壳材料及表面处理 | Thermoplastic Polymer, Glass Fiber | ||
产品信息
| 类型 | Circular | 连接器性别 | RCP |
| 系列 | EN3 | 产品特性 | Cable Clamp |
| 产品子类型 | Connectors | ||
环境参数
| 防护等级 | IP66/68 - Dust Tight, Water Resistant, Waterproof | ||
文档与媒体
相关型号
EN3L6MKX
Switchcraft
Standard Circular Connector EN3 INLINE 6PIN MLE. CONN RCPT 6POS MALE IN-LINE #20
EN3P6MKX
Switchcraft
Standard Circular Connector SOLDER PANEL MOUNT K CONN RCPT 6POS MALE PANEL #20
EN3L6MCKX
Switchcraft
Standard Circular Connector EN3 INLINE 6PIN MALE CONN RCPT 6POS MALE IN-LINE #20
EN3CLAMPL
Switchcraft
Cable Mounting & Accessories LARGE CABLE CLAMP CABLE CLAMP, LARGE, CABLE CLAMP LARGE CABLECLAMP,LARGE,
EN3P6MCKX
Switchcraft
Standard Circular Connector 6 PIN CRIMP PANEL MT CONN RCPT 6POS MALE PANEL #20
EN3PH6M20X
Switchcraft
Standard Circular Connector 3 PIN PANEL #20 MALE CONN MALE HOUSING 6PIN #20
EN3CAPC
Switchcraft
Standard Circular Connector Connector Cap EN3 Connector Accessories Weather Tight Cap Thermoplastic Elastomer Black WEATHERTIGHT CABLE C EN3 DUST CAP, FOR IN-LINE CONNECTOR WEATHERTIGHT EN3C CAP WITH THERMOPLASTIC ELASTOMER, BLACK COLOR MATERIAL EN3DUSTCAP,FORIN-LINECONNECTOR
EN3P6MPX
Switchcraft
Standard Circular Connector EN3 6 PIN MALE PC PA Conn Mini Weathertight M 6 POS Solder Cup ST Thru-Hole 6 Terminal 1 Port Bulk CONN RCPT 6POS MALE PANEL #20 EN36-positionpanelconnector;#20goldplatedsolder-cupstylemalepins
EN3P6MRAPCX
Switchcraft
Standard Circular Connector 6P R/A PANEL MT CONN RCPT 6POS MALE R/A PNL #20 6PINRAPANELCONN.
EN3CLAMPX
Switchcraft
Standard Circular Connector CLAMP FOR EN3 SERIES CONNECTORS CONN CLAMP FOR EN3 SERIES
EN3P6MCX
Switchcraft
Standard Circular Connector 6P MALE CRIMP PNL MT Conn Circular M 6 POS Crimp ST Panel Mount 6 Terminal 1 Port Bulk CONN RCPT 6POS MALE PANEL #20 6PINCRIMPPANELCO
EN3BOOTL
Switchcraft
Standard Circular Connector LARGE BOOT FOR CABLE DIAMETER 0.230-0.380 Connector Accessories Boot Thermoplastic Rubber Black BOOT FOR EN3 LARGE OD Cable Boots LARGE BOOT FOR CABLE DIAMETER 0.230-0.380 BOOT,LARGE,EN3,Ro
EN3P6M
Switchcraft
Conn Mini Weathertight M 6 POS Solder Cup ST Panel Mount 6 Terminal 1 Port Bulk CONN RCPT 6POS MALE PANEL #20 Device connector EN3, 6-pin 6, EN3P6M, Switchcraft
EN3L6MC
Switchcraft
Conn Mini Weathertight M 6 POS Crimp ST Cable Mount 6 Terminal 1 Port Bulk CONN RCPT 6POS MALE IN-LINE #20
EN3L6M
Switchcraft
Conn Mini Weathertight M 6 POS Solder ST Cable Mount 6 Terminal 1 Port Bulk CONN RCPT 6POS MALE IN-LINE #20

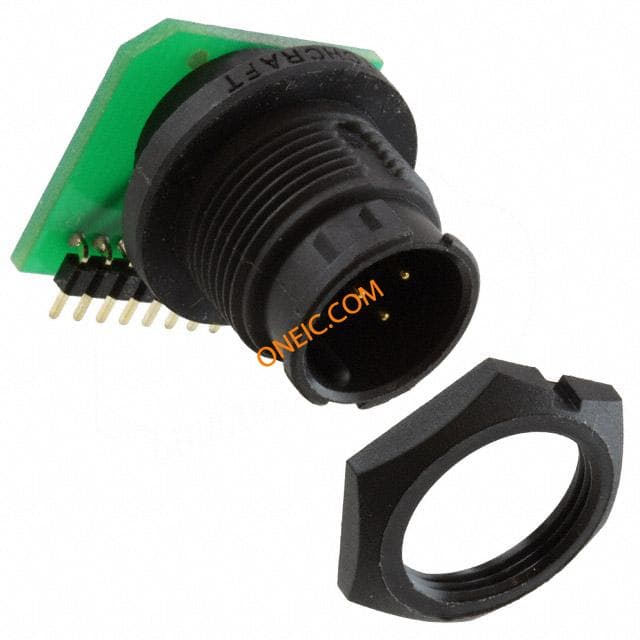

EN3P6MRAPCBN
Switchcraft Inc.
CONN RCPT 6POS PNL MNT RA PIN Standard Circular Connector MALE 6 PIN RA PCB NARROW IP68 CONNECTOR, CIRCULAR, 6POS, PCB

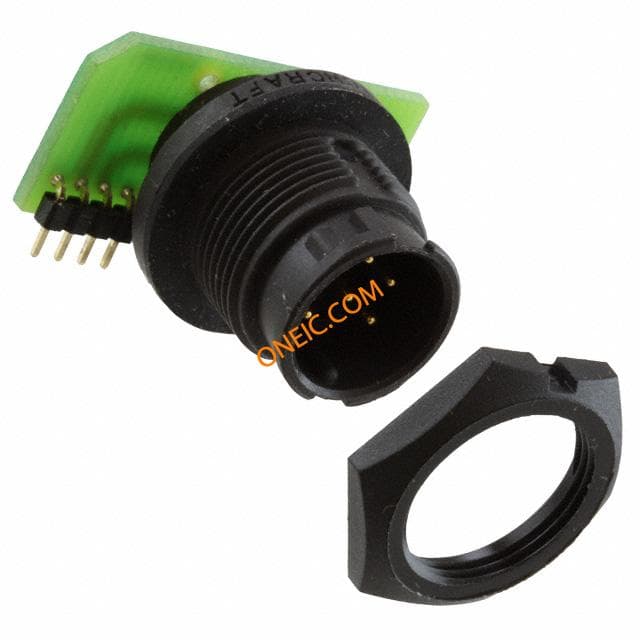

EN3P6MRAPCBW
