点击放大查看

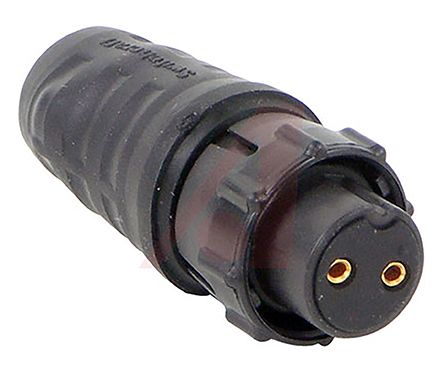

EN3C2F16X
| 制造商 | |
| 描述 | Standard Circular Connector 2 PIN CORD MT FEMALE Conn Circular F 2 POS Solder Cup ST Cable Mount 2 Terminal 1 Port Bulk CONN PLUG 2POS FEMALE CORD #16 CORDCONNECTOR,FEMALE,WEATHERTIGHT,#16CONTACTS,2PIN Switchcraft EN3 系列 2路 电缆安装 直向 连接器 插座 , 母触点, 卡口式接合 |
| 分类 |
商业参数
| 商标名 | EN3 | 产品类别 | Standard Circular Connector |
| 标准包装数量 | 1 | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 抗辐射加固 | No | 材料阻燃等级 | UL94-V0 |
电气参数
| 额定电压 | 600 V | 连接器阻抗 | 标准 |
| 最大额定电流 | 13A | ||
机械参数
| 深度 | Not Required mm | 高度 | Not Required mm |
| 直径 | 18 mm | 包装方式 | Bulk |
| 出线方向 | Yes | 外壳尺寸 | 16 |
| 导线线规 | 16 | 方向 | Keyed |
| 外壳样式 | Plug | 端接方式 | Solder Cup |
| 触点形式 | 2Signal | 触头类型 | 2Signal |
| 安装类型 | Cable Mount | 行程角度 | Straight |
| 连接器类型 | Plug, Female Sockets | 接触镀层 | Gold Over Nickel |
| 紧固类型 | Bayonet Lock | 安装样式 | Wire |
| 外壳材料（壳体） | Plastic | 触头材料 | Copper Alloy |
| 壳体材料 | ThermoplasticRubber | 总长度 | 55.9 mm |
| 主要材料 | Sealed | 端接排数 | 焊杯 |
| 端接样式 | Solder | 第一触头极性 | F |
| 触点数 | 2 | 位数 | 2 |
| 外壳材料及表面处理 | Thermoplastic Polymer, Glass Fiber | ||
产品信息
| 类型 | Circular | 连接器性别 | RCP |
| 系列 | EN3 | 已删除 | Compliant |
| 产品特性 | Cable Clamp | 主要用途 | Cable Clamp |
| 制造商全称 | EN3Series | 产品子类型 | Connectors |
| 射频系列/标准 | EN3 | 输出配置 | Free Hanging (In-Line) |
| 应用细节 | Commercial | ||
环境参数
| 防护等级 | IP66/68 - Dust Tight, Water Resistant, Waterproof | 工作温度 | +65°C |
文档与媒体
相关型号
EN3L2M16KX
Switchcraft
Standard Circular Connector EN3 INLINE 2PIN MLE CONN RCPT 2POS MALE IN-LINE #16
EN3P2M16KX
Switchcraft
Standard Circular Connector SOLDER PANEL MOUNT K CONN RCPT 2POS MALE PANEL #16
EN3CLAMPL
Switchcraft
Cable Mounting & Accessories LARGE CABLE CLAMP CABLE CLAMP, LARGE, CABLE CLAMP LARGE CABLECLAMP,LARGE,
EN3L2M16CX
Switchcraft
Standard Circular Connector EN3 INLINE 2 PIN MAL CONN RCPT 2POS MALE IN-LINE #16
EN3P2M16CX
Switchcraft
Standard Circular Connector EN3 2PIN PANEL MALE CONN RCPT 2POS MALE PANEL #16
EN3P2M16CKX
Switchcraft
Standard Circular Connector 16AWG 2 PIN CRIMP PA CONN RCPT 2POS MALE PANEL #16
EN3L2M16X
Switchcraft
Standard Circular Connector EN3 INLINE 2 PIN MAL Conn Mini Weathertight M 2 POS Solder ST Cable Mount 2 Terminal 1 Port Bulk CONN RCPT 2POS MALE IN-LINE #16 PANELCONNECTOR,MALE,WEATHERTIGHT,#16CONTACTS,2PIN
EN3CAPC
Switchcraft
Standard Circular Connector Connector Cap EN3 Connector Accessories Weather Tight Cap Thermoplastic Elastomer Black WEATHERTIGHT CABLE C EN3 DUST CAP, FOR IN-LINE CONNECTOR WEATHERTIGHT EN3C CAP WITH THERMOPLASTIC ELASTOMER, BLACK COLOR MATERIAL EN3DUSTCAP,FORIN-LINECONNECTOR
EN3BOOT
Switchcraft
Standard Circular Connector PROTECTIVE BOOT Connector Accessories Boot Thermoplastic Rubber Black CONN BOOT FOR EN3 boot for en3 series Cable Boots PROTECTIVE BOOT bootforen3series

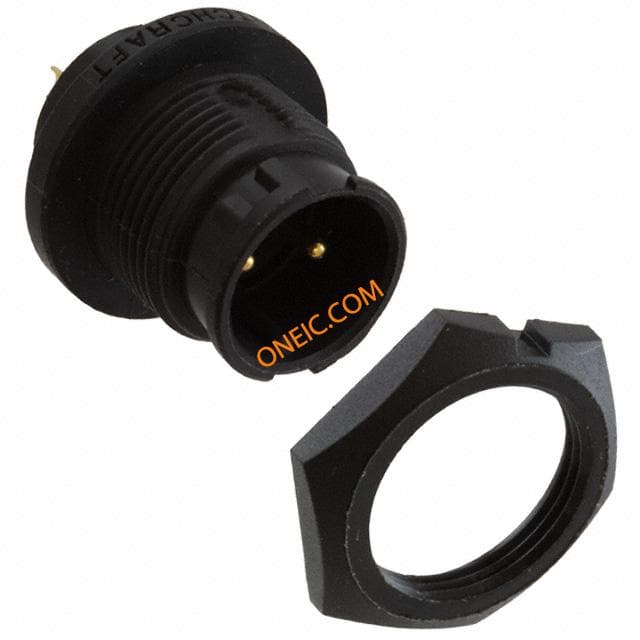

EN3P2M16X
