点击放大查看

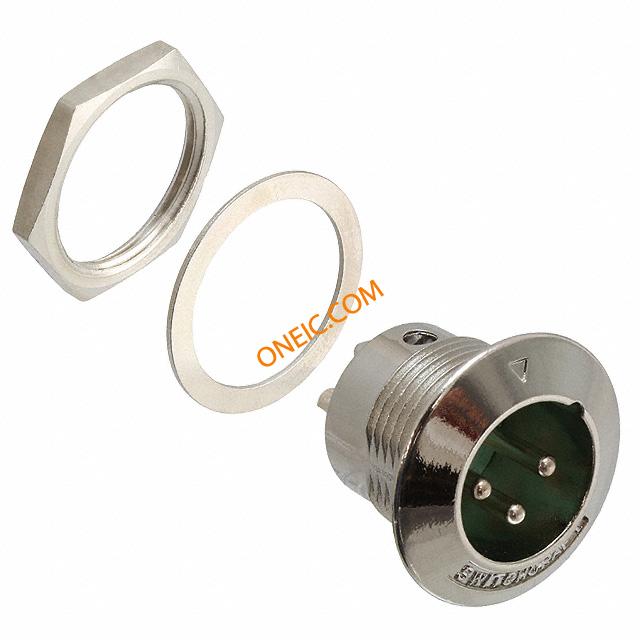

B3M
| 制造商 | |
| 描述 | XLR Connectors 3 PIN MALE RECEPT Conn XLR Connector M 3 POS ST Panel Mount 3 Terminal 1 Port CONN AUDIO 3POS MALE PANEL MOUNT XLR Receptacle; Male; 0.813 in.; 1.109 in. XLRReceptacle;Male;0.813in.;1.109in. |
| 分类 |
商业参数
| 交货时间 | 30 Days | 其他名称 | SC1006 |
| 子类别 | Connector Audio and Video | 产品类别 | XLR Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 25 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 额定电压 | 125VAC | 供电电压 | Standard XLR |
| 最大额定电流 | 15A | ||
机械参数
| 直径 | 28.18 | 包装方式 | Bulk |
| 方向 | Keyed | 端接方式 | Solder Cup |
| 安装类型 | Panel Mount | 外壳镀层 | Nickel |
| 连接器类型 | Receptacle, Male Pins | 接触镀层 | Silver |
| 紧固类型 | Push-Pull | 安装样式 | Chassis (Panel) |
| 总长度 | 27.78 | 端接样式 | Solder |
| 触点数 | 3 | 位数 | 3 |
| 外壳尺寸-插件 | XLR | 外壳材料及表面处理 | Zinc Die Cast, Nickel Plated |
产品信息
| 类型 | XLR Connector | 连接器性别 | M |
| 系列 | B | 产品子类型 | Connectors |
| 端口数 | 1 | ||
