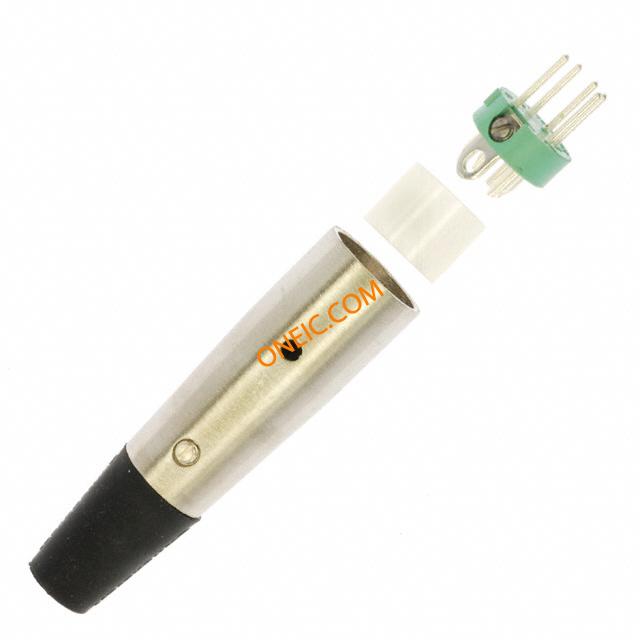

A5M
| 制造商 | |
| 描述 | XLR Connectors 5 PIN MALE PLUG Conn XLR Connector M 5 POS ST Cable Mount 5 Terminal 1 Port CONN RCPT AUDIO 5POS MALE XLR Plug; Plug; 5; Zinc; Nickel Plated; 0.74 in. CONNECTOR, XLR, PLUG, 5POS XLRPlug;Plug;5;Zinc,NickelPlated;0.74in. |
| 分类 |
商业参数
| 交货时间 | 44 Days | 其他名称 | SC1022 |
| 子类别 | Connector Audio and Video | 产品类别 | XLR Connectors |
| 标准包装数量 | 100 | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85369010 | ||
电气参数
| 额定电压 | 125VAC | 供电电压 | Standard XLR |
| 最大额定电流 | 7.5A | ||
机械参数
| 颜色 | :Black | 重量 | 0.027 |
| 直径 | 18.8 | 包装方式 | Bulk |
| 方向 | Keyed | 端接方式 | Solder |
| 安装类型 | Cable Mount | 外壳镀层 | Nickel |
| 连接器类型 | Receptacle, Male Pins | 接触镀层 | Silver |
| 紧固类型 | Latch Holder | 安装样式 | Cable |
| 本体材料 | :Metal | 触头材料 | Brass |
| 壳体材料 | Zinc Die Cast | 总长度 | 70.61 |
| 端接样式 | Solder | 触点数 | 5 |
| 接触件端接 | :Solder | 位数 | 5 |
| 外壳尺寸-插件 | XLR | 外壳材料及表面处理 | Zinc Die Cast, Nickel Plated |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 类型 | XLR Connector | 连接器性别 | M |
| 系列 | A | 产品特性 | Cable Clamp, Strain Relief |
| 产品子类型 | Connectors | 端口数 | 1 |
文档与媒体
相关型号

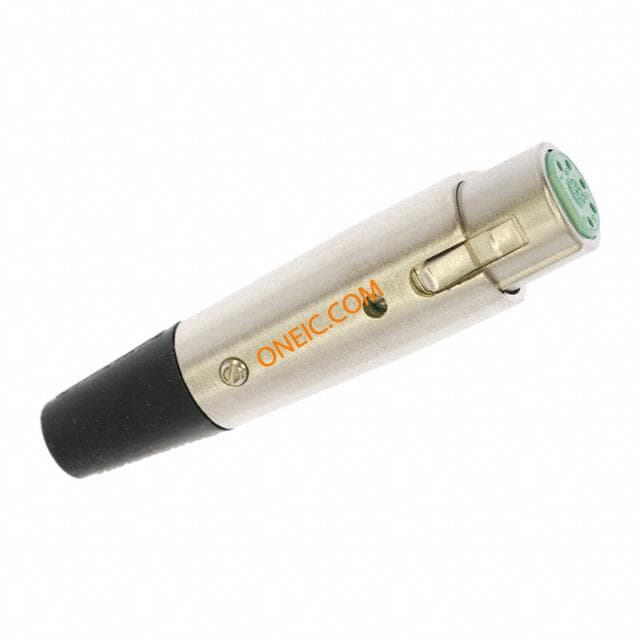

A5F
