点击放大查看
A4M
| 制造商 | |
| 描述 | XLR Connectors 4 PIN MALE PLUG Conn XLR Connector M 4 POS ST Cable Mount 4 Terminal 1 Port CONN RCPT AUDIO 4POS MALE XLR Plug; Straight Male Cord; 4; Zinc; Nickel Plated; Brass; Silver Plated XLRPlug;StraightMaleCord;4;Zinc,NickelPlated;Brass,SilverPlated |
| 分类 |
商业参数
| 交货时间 | 44 Days | 其他名称 | SC1014 |
| 子类别 | Connector Audio and Video | 产品类别 | XLR Connectors |
| 标准包装数量 | 100 | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 额定电压 | 125VAC | 供电电压 | Standard XLR |
| 最大额定电流 | 10A | ||
机械参数
| 直径 | 18.8 mm | 包装方式 | Bulk |
| 方向 | Keyed | 端接方式 | Solder |
| 安装类型 | Cable Mount | 外壳镀层 | Nickel |
| 连接器类型 | Receptacle, Male Pins | 接触镀层 | Silver |
| 紧固类型 | Latch Holder | 安装样式 | Cable |
| 触头材料 | Brass | 壳体材料 | Zinc Die Cast |
| 总长度 | 70.61 mm | 端接样式 | Solder |
| 触点数 | 4 | 位数 | 4 |
| 外壳尺寸-插件 | XLR | 外壳材料及表面处理 | Zinc Die Cast, Nickel Plated |
产品信息
| 类型 | XLR Connector | 连接器性别 | M |
| 系列 | A | 产品特性 | Cable Clamp, Strain Relief |
| 主要用途 | Cable Clamp, Strain Relief | 产品子类型 | Connectors |
| 端口数 | 1 | 输出配置 | Free Hanging (In-Line) |
文档与媒体
相关型号
R4FZ
Switchcraft
XLR Connectors RA FEMALE 4P CAB Conn XLR Connector F 4 POS RA Cable Mount 4 Terminal 1 Port CONN PLUG CORD 4POS FEMALE R/A CONNECTOR, XLR, JACK, 4POS R/AFEMALE4PINCAB
C4F
Switchcraft
XLR Connectors 4 PIN FEMALE RECEPT Conn XLR Connector F 4 POS ST Panel Mount 4 Terminal 1 Port CONN PLUG 4POS PNL MNT SKT XLR XLR Receptacle; Female; 1.109 in.; 1.43 in. XLRReceptacle;Female;1.109in.;1.43in.
B4F
Switchcraft
XLR Connectors QG CONNECTOR CONN AUDIO 4POS FEMALE PANEL MNT QGCONNECTOR
A4F
Switchcraft
XLR Connectors 4 PIN FEMALE PLUG Conn XLR Connector F 4 POS ST Cable Mount 4 Terminal 1 Port CONN PLUG AUDIO 4POS FEMALE XLR Plug; Straight Female Cord; 4; Zinc; Nickel Plated; Brass; Silver Plated CONNECTOR, XLR, JACK, 4POS XLRPlug;StraightFemaleCord;4;Zinc,NickelPlated;Brass,SilverPlated

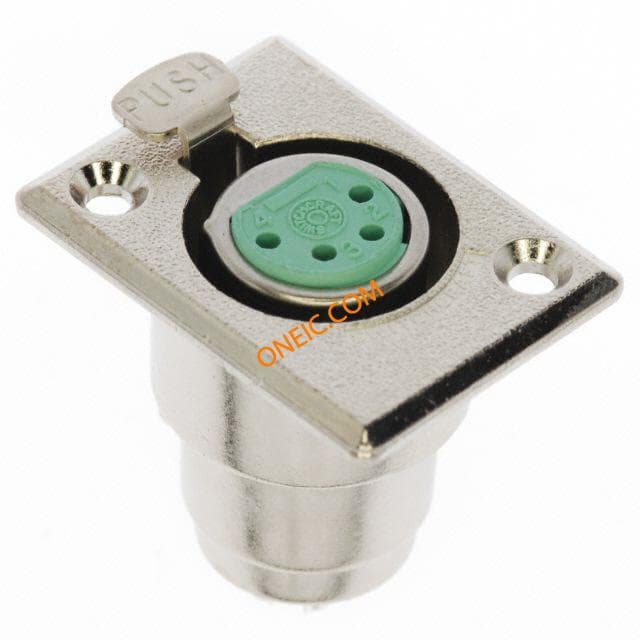

D4F
