点击放大查看

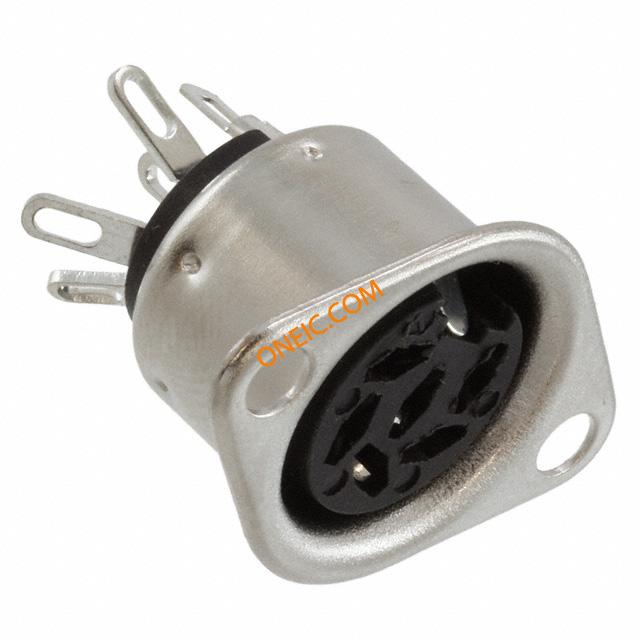

61GB6FX
| 制造商 | |
| 描述 | DIN Connectors 6P CHASSIS RECPT Conn Circular DIN F 6 POS Solder Lug ST Panel Mount 6 Terminal 1 Port CONN RCPT 6CONT DIN SLD PNL MNT DINReceptacle;Straight;MetalRecessed |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 产品类别 | DIN Connectors | 标准包装数量 | 100 |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 额定电压 | 34VDC | 供电电压 | DIN |
| 最大额定电流 | 3A | ||
机械参数
| 深度 | 20.1 | 高度 | 19 |
| 包装方式 | Bulk | 出线方向 | No |
| 方向 | G | 端接方式 | Solder Lug |
| 触头类型 | 6Signal | 安装类型 | Panel Mount |
| 外壳镀层 | Nickel | 行程角度 | 240 |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Tin |
| 紧固类型 | Push-Pull | 安装样式 | Chassis (Panel) |
| 总长度 | 29 | 第一触头极性 | F |
| 触点数 | 6 | 位数 | 6 |
| 外壳尺寸-插件 | DIN (240 Degree) | 外壳材料及表面处理 | Drawn Metal |
产品信息
| 类型 | Circular DIN | 连接器性别 | RCP |
| 系列 | DIN | ||
相关型号

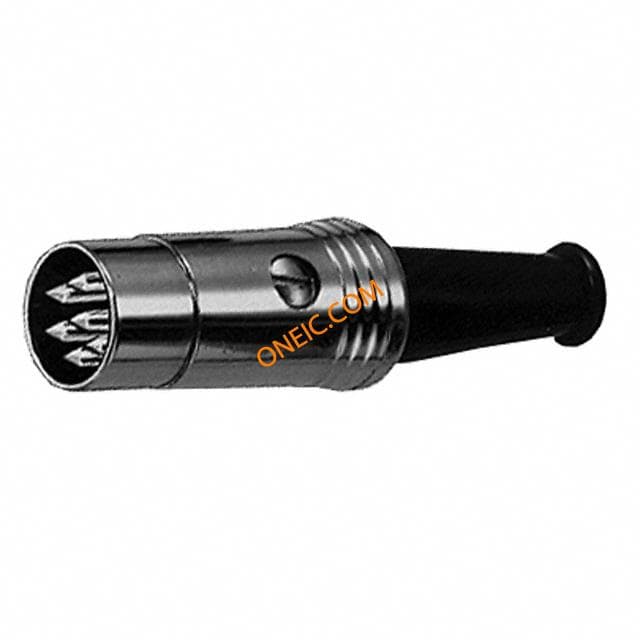

12BL6MX
Switchcraft
DIN Connectors MALE 6 PIN METAL DIN Conn Circular DIN M 6 POS ST Cable Mount 6 Terminal 1 Port Bulk CONN DIN MALE PLUG 6POS STR DIN Plug; Plug; 6; Male; Nickel CONNECTOR, DIN, PLUG, 6POS DINPlug;Plug;6;Male;Nickel
¥24.3739
详情

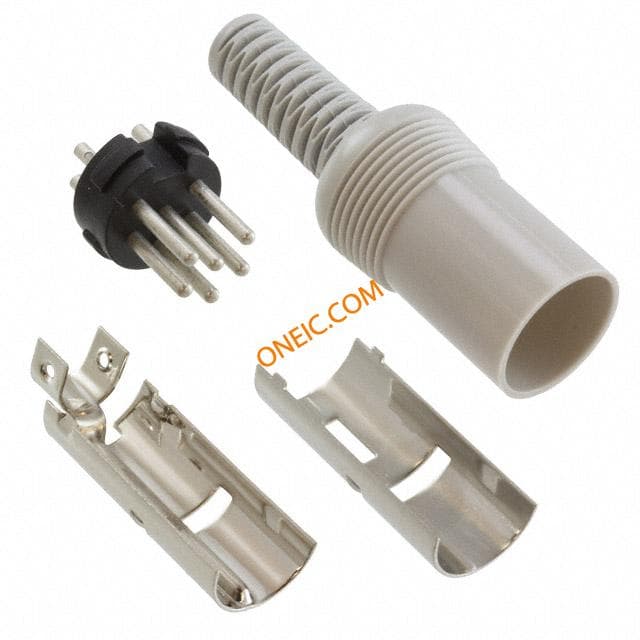

12GM6MX
