57GB3FX
| 制造商 | |
| 描述 | DIN Connectors 3 PIN FEMALE RECEPT Conn Circular DIN F 3 POS Solder Lug ST Panel Mount 3 Terminal 1 Port CONN RCPT 3CONT DIN SLD PNL MNT DIN Receptacle; Straight; Metal Recessed DINReceptacle;Straight;MetalRecessed |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 产品类别 | DIN Connectors | 标准包装数量 | 1 |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 额定电压 | 34VDC | 供电电压 | DIN |
| 最大额定电流 | 3A | ||
机械参数
| 深度 | 20.1 | 高度 | 19 |
| 包装方式 | Bulk | 出线方向 | No |
| 方向 | B | 外壳样式 | Metal |
| 端接方式 | Solder Lug | 触头类型 | 3Signal |
| 安装类型 | Panel Mount | 外壳镀层 | Nickel |
| 行程角度 | 180 | 连接器类型 | Receptacle, Female Sockets |
| 接触镀层 | Tin | 紧固类型 | Push-Pull |
| 安装样式 | Chassis (Panel) | 面板厚度 | 0.039" |
| 壳体材料 | Metal | 总长度 | 29 |
| 主要材料 | DIN | 端接样式 | Screw |
| 第一触头极性 | F | 触点数 | 3 |
| 位数 | 3 | 外壳尺寸-插件 | DIN (180 Degree) |
| 安装孔直径 | 0.126" | 外壳材料及表面处理 | Drawn Metal |
产品信息
| 类型 | Circular DIN | 连接器性别 | RCP |
| 系列 | DIN | 产品特性 | Shielded&ExtendedBarrelPlugs |
| 排列方式 | B | ||
文档与媒体
相关型号

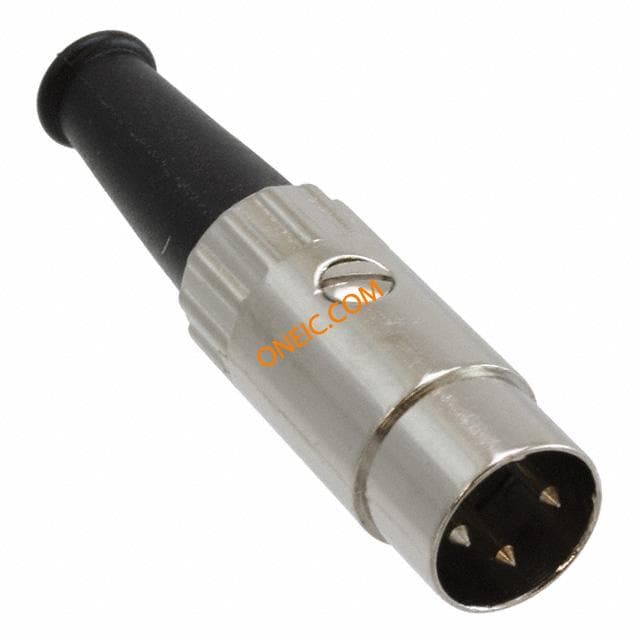

05BL3MX
Switchcraft
DIN Connectors 3 PIN MALE PLUG Conn Circular DIN M 3 POS ST Cable Mount 3 Terminal 1 Port CONN DIN MALE PLUG 3POS STR DINPlug;StraightCordPlug
¥20.1960
详情
630-0300
Deltron
DIN Connectors SOCKET NICKEL 3 PIN SOCKET, DIN, FLANGED, 3POLE Socket; DIN; female; PIN:3; Pin layout:180°; soldering; 34V; 10mΩ Female panel connector nickel-plated 3P 3 'C', 630-0300, Deltron Components
¥81.2721
详情

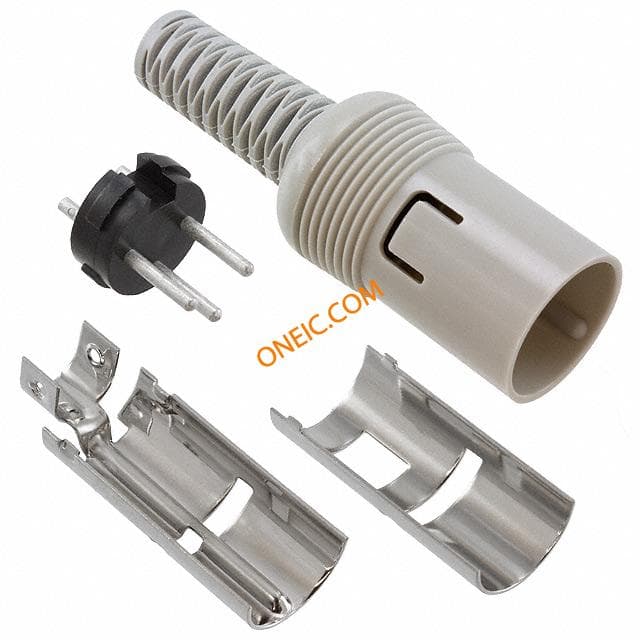

05GM3MX
