点击放大查看

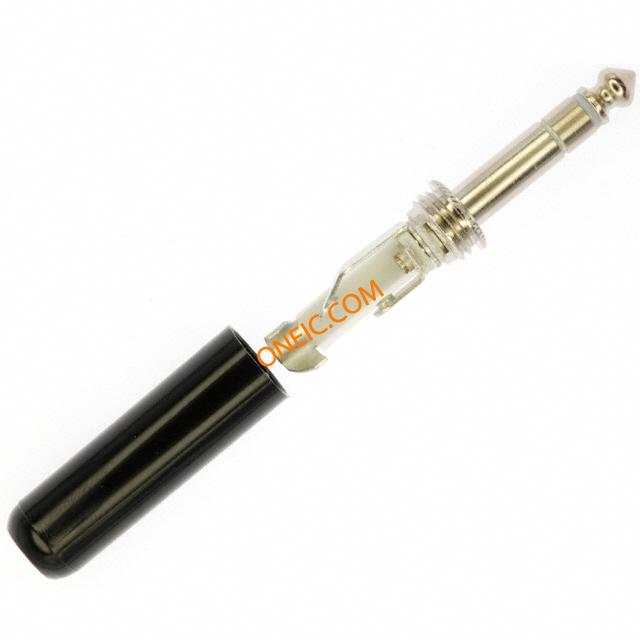

267
| 制造商 | |
| 描述 | Phone Connectors 3 COND 1/4 BLACK Conn 1/4" Phone Plug PL 3 POS Solder ST Cable Mount 3 Terminal 1 Port CONN PLUG PHONE 1/4" 3POS BLACK Plug; Phone; Solder Lug and Cable Clamp; 0.290 in. (Max.); Copper Alloy Plug,Phone;SolderLugandCableClamp;0.290in.(Max.);CopperAlloy |
| 分类 |
商业参数
| 交货时间 | 20 Days | 其他名称 | SC1081 |
| 子类别 | Connector Audio and Video | 产品类别 | Phone Connectors |
| 标准包装数量 | 100 | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 信号线数 | Stereo | 供电电压 | 1/4 in |
| 开关功能/额定值 | Not Switched | ||
机械参数
| 颜色 | Black | 直径 | 6.35mm (0.250", 1/4") - Headphone |
| 包装方式 | Bulk | 屏蔽 | Unshielded |
| 导线类型 | Stereo | 端接方式 | Solder |
| 外壳颜色 | Black | 安装类型 | Cable Mount |
| 连接器类型 | Phone Plug | 接触镀层 | Tin |
| 安装样式 | Cable | 触头材料 | Copper Alloy |
| 壳体材料 | Polyamide (PA), Nylon | 端接样式 | Solder, Crimp |
| 触点数 | 3 | 按钮/帽颜色 | Silver |
| 插头/配合插头直径（类型） | 6.35mm (0.250", 1/4") - Headphone | 触点材料 - 镀层 | Nickel |
产品信息
| 类型 | 1/4" Phone Plug | 连接器性别 | PL |
| 系列 | 1/4" 3 Conductor Plastic Handle Plug | 产品特性 | Cable Clamp |
| 主要用途 | Cable Clamp | 端口数 | 1 |
| 内部开关 | Does Not Contain Switch | 内部连接 | Does Not Contain Switch |
| 输出配置 | Free Hanging (In-Line) | 位置/触点数量 | 3 Conductors, 3 Contacts |
文档与媒体
相关型号
SN37A14B
Switchcraft
Phone Connectors 1/4 R/A PH JACK Conn 1/4" Phone Jack F 3 POS 7.62mm Solder RA Thru-Hole 6 Terminal 1 Port CONN PHONE JACK 3COND DBL CLOSED PHONEJACK
838
Switchcraft
Phone Connectors 1/4 EXTENSION JACK Conn 1/4" Extension Jack F 3 POS Solder ST Cable Mount 3 Terminal 1 Port CONN JACK EXTEN 3COND SLD LUGS EXTENSIONJAX
N114BPCX
Switchcraft
Phone Connectors 3C ENCLOSED 1/4 JCK Conn Audio F 3 POS Solder ST Thru-Hole 5 Terminal 1 Port CONN JACK 1/4" PHONE ENCLOSE PC HIDJAX,RoHS
NL112BX
Switchcraft
Phone Connectors 3C ENCLOSED 1/4 Conn Audio F 3 POS Solder Lug ST Panel Mount 3 Terminal 1 Port CONN JACK 1/4" PHONE ENCLOSE SLD HIDJAX,RoHS
RN114BPC
Switchcraft
Phone Connectors 3C ENCLOSED 1/4 Conn 1/4" Phone Jack F 3 POS 7.62mm Solder RA Thru-Hole 5 Terminal 1 Port CONN JACK PHONE 1/4"3POS RA CLSD 1/4 in. Right Angle Phone Jack; PC Mount; 3 Conductor; Double closed circuit 1/4in.RightAnglePhoneJack,PCMount,3Conductor,Doubleclosedcircuit

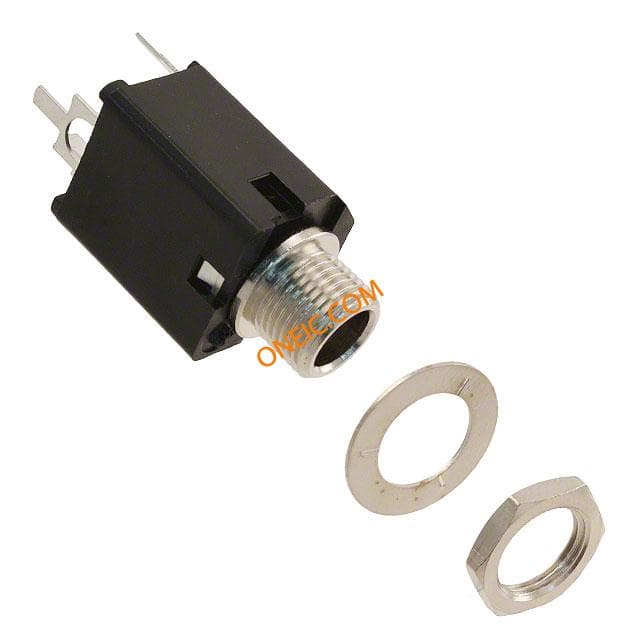

N112BPCX
Switchcraft
Phone Connectors 3C ENCLOSED 1/4 Conn 1/4" Phone Jack F 3 POS Solder ST Thru-Hole 5 Terminal 1 Port CONN JACK 1/4" PHONE ENCLOSE PC HIDJAX,RoHS
SN49A14B
Switchcraft
Phone Connectors PHONE JACK Conn 1/4" Phone Jack F 3 POS Solder RA Thru-Hole 3 Terminal 1 Port CONN PHONE JACK 3COND DBL CLOSED PHONEJACK

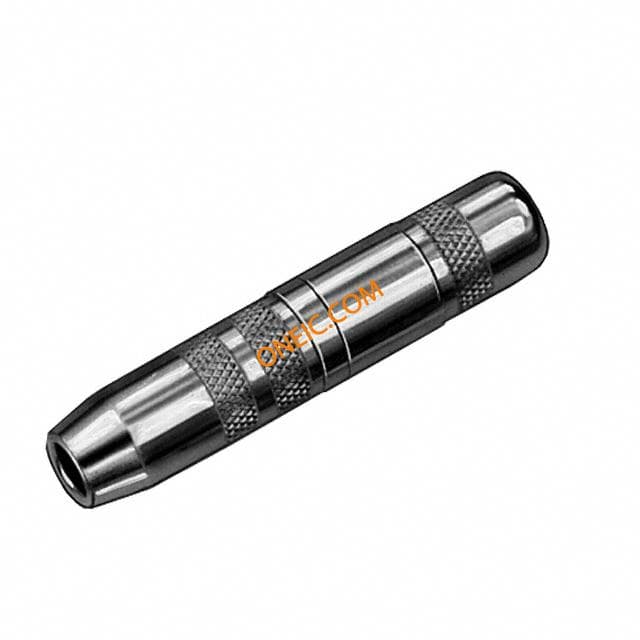

131
