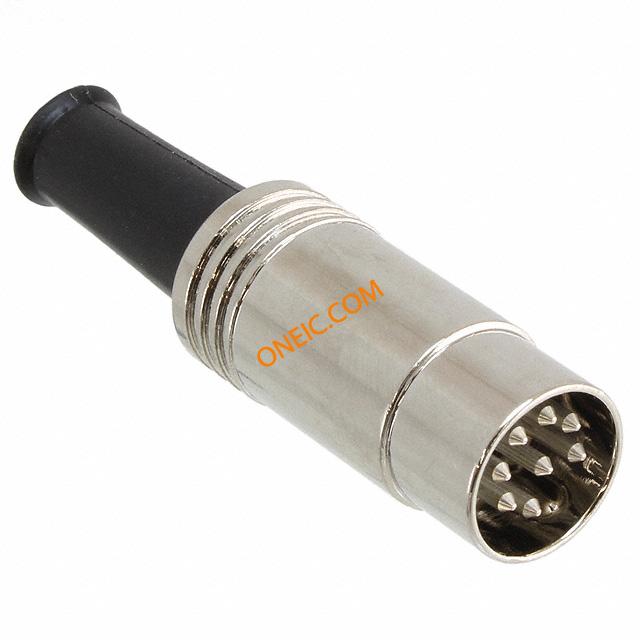

15BL8MX
| 制造商 | |
| 描述 | DIN コネクタ 8 PIN DIN MAL CORD P Conn Audio PIN 8 POS Solder ST Cable Mount 8 Terminal 1 Port CONN PLUG DIN STR 8POS STRAIGHT CORD PLUG;EXTENDED BARREL;8 PINS @ 270 DEGREES (ROHS) DIN Connectors BARREL 8 PIN DIN RND CONNECTOR, DIN, PLUG, 8POS STRAIGHTCORDPLUG;EXTENDEDBARREL;8PINS@270DEGREES(ROHS) |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 标准包装数量 | 1 | 工厂包装数量 | 75 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85366910 | ||
电气参数
| 额定电压 | 34VDC | 供电电压 | DIN |
| 最大额定电流 | 3A | ||
机械参数
| 重量 | 0 | 直径 | 16 mm |
| 包装方式 | Bulk | 方向 | 8 |
| 端接方式 | Solder | 重量（g） | 16.00000 |
| 安装类型 | Cable Mount | 行程角度 | 270 |
| 连接器类型 | Plug, Male Pins | 接触镀层 | Tin |
| 紧固类型 | Push-Pull | 安装样式 | Cable |
| 本体材料 | :Metal | 总长度 | 59.2 mm |
| 触点数 | 8 | 接触件端接 | :- |
| 位数 | 8 | 外壳尺寸-插件 | DIN (270 Degree) |
| 外壳材料及表面处理 | Zinc Die Cast, Nickel Plated | 第一连接器安装类型 | :Cable |
产品信息
| 类型 | Audio | 连接器性别 | PIN |
| 系列 | :- | 产品特性 | Cable Clamp, Strain Relief |
| 端口数 | 1 | ||
相关型号
62PC8F
Switchcraft
DIN Connectors DIN CONNECTOR Conn Circular DIN F 8 POS Solder RA Thru-Hole 8 Terminal 1 Port CONN RCPT 8CONT DIN RT ANG PCB DIN Receptacle; Receptacle; 8; Female; PCB Mount CONNECTOR, DIN, JACK, 8POS DINReceptacle;Receptacle;8;Female;PCBMount
¥15.3680
详情

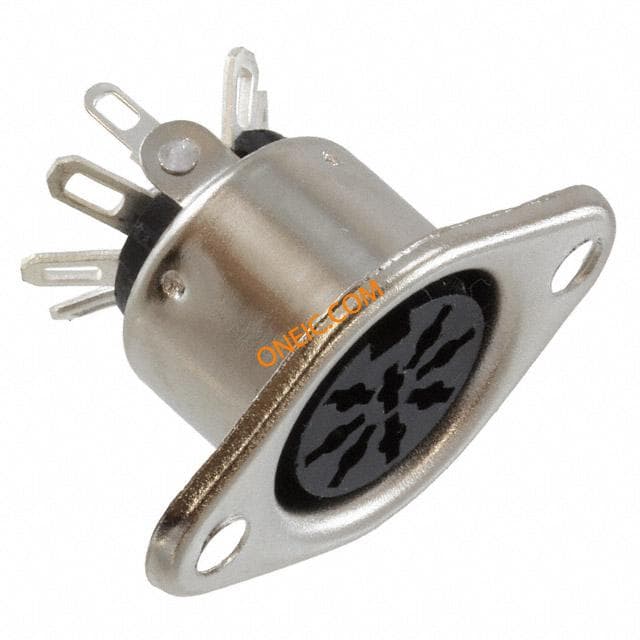

62GB8FX
