点击放大查看
11
| 制造商 | |
| 描述 | Phone Connectors 2 CONDUCTOR 1/4 Conn 1/4" Phone Jack F 2 POS Solder Lug ST Panel Mount 2 Terminal 1 Port CONN JACK PHONE 1/4" 2POS OPEN Jack,Phone;PanelMount;2;NickelPlatedCopperAlloy;0.437in.;1/4in. |
| 分类 |
商业参数
| 交货时间 | 20 Days | 商标名 | Littel-Jax |
| 其他名称 | SC1085 | 子类别 | Connector Audio and Video |
| 产品类别 | Phone Connectors | 标准包装数量 | 100 |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 信号线数 | Mono | 额定电压 | 25 V |
| 供电电压 | 1/4 in | 最大额定电流 | 1 |
| 最小输入电压 | 25VDC | 触点额定值 @ 电压 | 1 A |
机械参数
| 颜色 | Metal | 深度 | 32.41 |
| 包装方式 | Bulk | 屏蔽 | Unshielded |
| 端接方式 | Solder Lug | 外壳颜色 | Silver |
| 安装类型 | Panel Mount | 连接器类型 | Phone Jack |
| 接触镀层 | Nickel | 安装样式 | Chassis (Panel) |
| 触头材料 | Copper Alloy | 壳体材料 | Plastic |
| 总长度 | 19.05 | 端接样式 | Solder Lug |
| 触点数 | 2 | 按钮/帽颜色 | Silver |
| 插头/配合插头直径（类型） | 6.35mm (0.250", 1/4") - Headphone | 触点材料 - 镀层 | Tin |
产品信息
| 类型 | 1/4" Phone Jack | 连接器性别 | F |
| 系列 | Littel-Jax | 产品特性 | Mounting Hardware, Thread Lock |
| 端口数 | 1 | 内部开关 | Does Not Contain Switch |
| 位置/触点数量 | 2 Conductors, 2 Contacts | ||
环境参数
| 工作温度 | 65 | ||
文档与媒体
相关型号

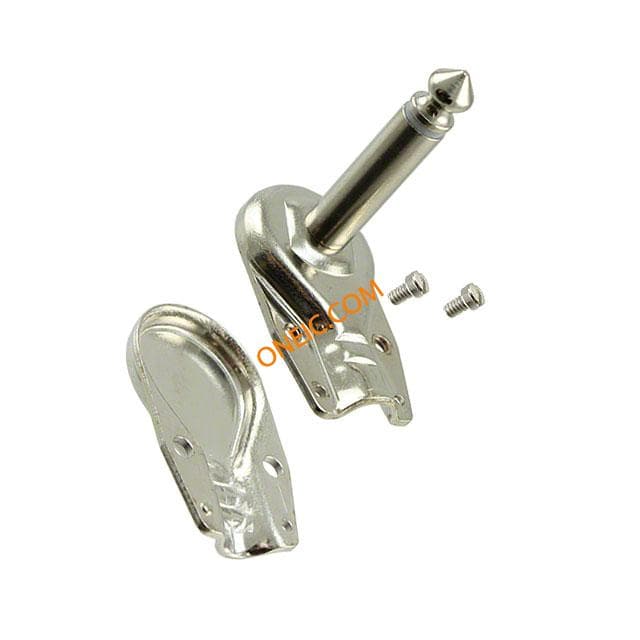

228
Switchcraft
Phone Connectors 2C FLAT PLUG 1/4 Conn 1/4" Mono Plug M 2 POS Solder RA Cable Mount 2 Terminal 1 Port CONN PLUG FLAT 2COND SOLDER LUG CONNECTOR, PHONE AUD, PLUG, 2POS Plug,Phone;SolderLug;0.219to0.250;NickelPlatedCopperAlloy

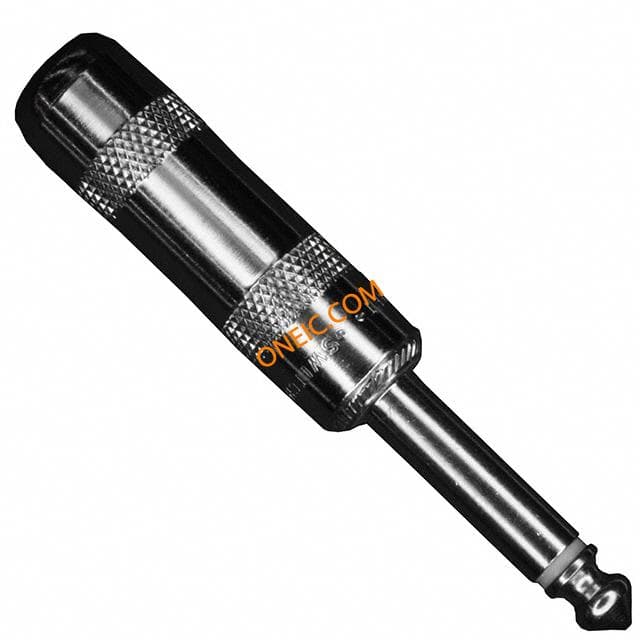

280
