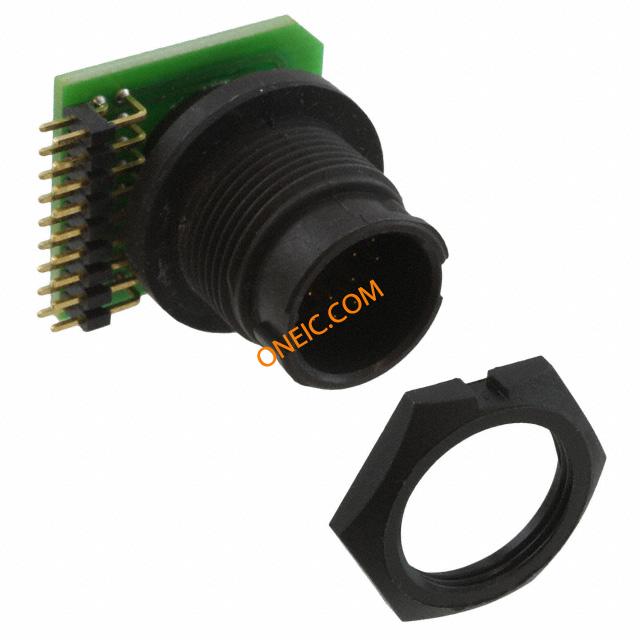

EN3P17MRAPCBN
| 制造商 | |
| 描述 | CONN RCPT 17POS PNL MNT RA PIN Standard Circular Connector MALE 17 PIN RA PCB NARROW IP68 CONNECTOR, CIRCULAR, 17POS, PCB |
| 分类 |
商业参数
| 商标名 | EN3 | 其他名称 | SC1762 |
| 标准包装数量 | 25 | ||
合规参数
| 海关税号 | 85366930 | ||
电气参数
| 最大额定电流 | 2A | ||
机械参数
| 重量 | 0 | 包装方式 | Bulk |
| 方向 | Keyed | 端接方式 | Circuit Board, Solder |
| 安装类型 | Panel Mount, Bulkhead; Through Hole, Right Angle | 连接器类型 | Receptacle, Male Pins |
| 接触镀层 | Gold | 紧固类型 | Bayonet Lock |
| 安装样式 | Panel | 外壳材料（壳体） | Thermoplastic |
| 插入角度 | :- | 本体材料 | :Thermoplastic |
| 第一触头极性 | Pin (Male) | 触点数 | 17 |
| 位数 | 17 | 外壳尺寸-插件 | :- |
| 外壳材料及表面处理 | Thermoplastic Polymer, Glass Fiber | 第一连接器安装类型 | :PCB |
产品信息
| 连接器性别 | :- | 系列 | EN3 |
| 产品子类型 | Connectors | ||
环境参数
| 防护等级 | IP66/68 - Dust Tight, Water Resistant, Waterproof | ||
