点击放大查看
EN3P13MRAPCBN
| 制造商 | |

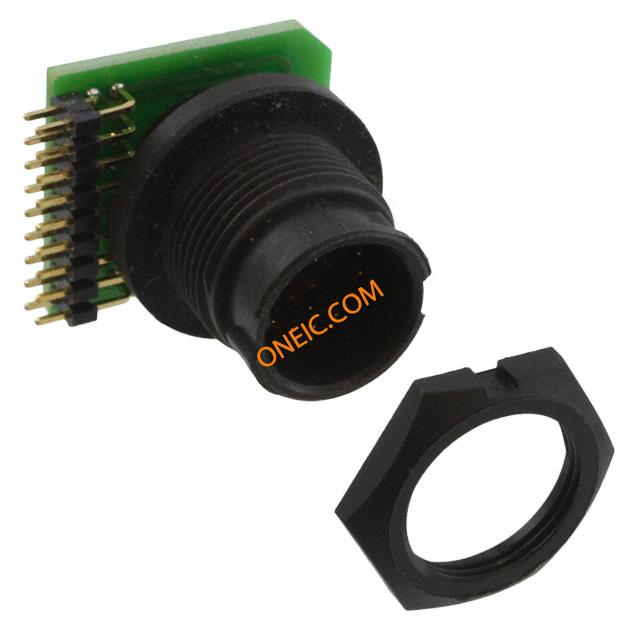

| 描述 | CONN RCPT 13POS PNL MNT RA PIN Standard Circular Connector MALE 13 PIN RA PCB NARROW IP68 |
| 分类 |
商业参数
| 商标名 | EN3 | 其他名称 | SC1746 |
| 标准包装数量 | 25 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 最大额定电流 | 2A | ||
机械参数
| 包装方式 | Bulk | 方向 | Keyed |
| 端接方式 | Circuit Board, Solder | 安装类型 | Panel Mount, Bulkhead; Through Hole, Right Angle |
| 连接器类型 | Receptacle, Male Pins | 接触镀层 | Gold |
| 紧固类型 | Bayonet Lock | 安装样式 | Panel |
| 外壳材料（壳体） | Thermoplastic | 第一触头极性 | Pin (Male) |
| 触点数 | 13 | 位数 | 13 |
| 外壳材料及表面处理 | Thermoplastic Polymer, Glass Fiber | ||
产品信息
| 系列 | EN3 | 产品子类型 | Connectors |
环境参数
| 防护等级 | IP66/68 - Dust Tight, Water Resistant, Waterproof | ||
