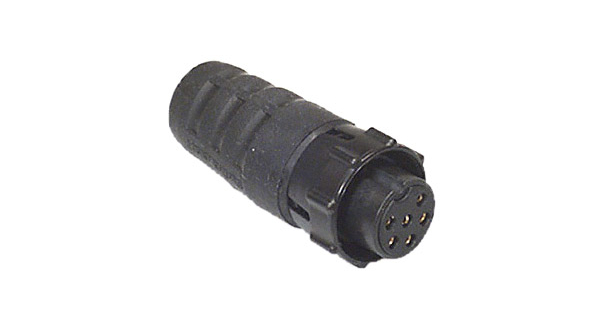

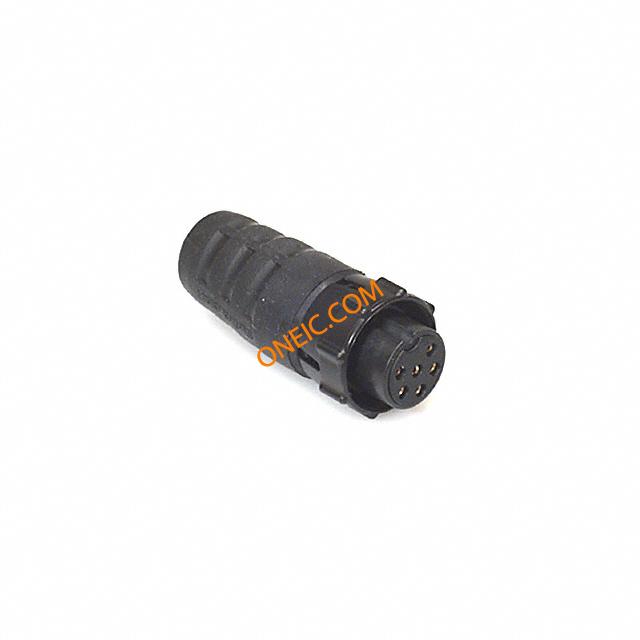

EN3C6F
| 制造商 | |
| 描述 | CONN PLUG 6POS FEMALE CORD #20 Conn Mini Weathertight F 6 POS Solder Cup ST Cable Mount 6 Terminal 1 Port Bulk SOCKET, FREE, 6WAY Cable socket EN3, 6-pin 6, EN3C6F, Switchcraft |
| 分类 |
商业参数
| 交货时间 | 44 Days | 其他名称 | SC1162 |
| 子类别 | Connector Circular | 标准包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS non-compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85369010 | 认证机构 | :UL |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 额定电压 | :600V | 接触电阻 | :3.1mohm |
| 介电强度 | :600V/m | 最大额定电流 | 7.5A |
| 绝缘电阻 | :100Mohm | ||
机械参数
| 重量 | 0.005 | 包装方式 | Bulk |
| 方向 | Keyed | 端接方式 | Solder Cup |
| 重量（g） | 6.80000 | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Plug, Female Sockets | 接触镀层 | Gold |
| 紧固类型 | Bayonet Lock | 插入角度 | :- |
| 本体材料 | :Thermoplastic Rubber | 触头材料 | :Copper |
| 第一触头极性 | :Socket | 触点数 | :6 |
| 接触件端接 | :Solder | 位数 | 6 |
| 外壳尺寸-插件 | :- | 外壳材料及表面处理 | Thermoplastic Polymer, Glass Fiber |
| 第一连接器安装类型 | :Cable | 外径-未扩张 | :7mm |
产品信息
| 连接器性别 | :Socket | 系列 | :EN3 |
| 产品特性 | Cable Clamp | 适用产品/相关产品 | EN3C6FK |
环境参数
| 插拔次数 | :600 | NEMA 机架尺寸 | :IP68 |
| 防护等级 | IP66/68 - Dust Tight, Water Resistant, Waterproof | 工作温度 | :65°C |
