点击放大查看
EN3C4F
| 制造商 | |

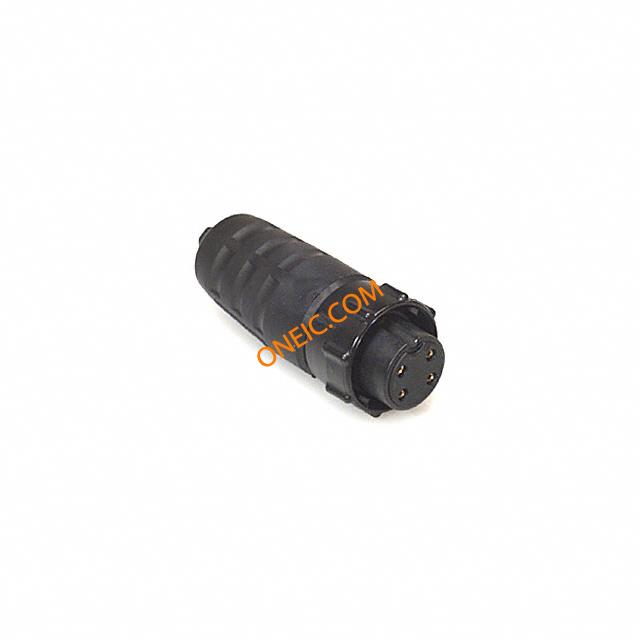

| 描述 | CONN PLUG 4POS FEMALE CORD #20 Cable socket EN3, 4-pin 4, EN3C4F, Switchcraft |
商业参数
| 交货时间 | 44 Days | 其他名称 | SC1158 |
| 子类别 | Connector Circular | 标准包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS non-compliant | ||
电气参数
| 额定电压 | 250 | 极数 | 4 |
| 最大额定电流 | 7.5A | 额定电流 - 设备输入口 | 7.5 |
| 保护电压（VP）（2416） | IP 68 | ||
机械参数
| 包装方式 | Bulk | 方向 | Keyed |
| 端接方式 | Solder Cup | 重量（g） | 6.63333 |
| 安装类型 | Free Hanging (In-Line) | 电缆端类型 | 5...7 mm |
| 连接器类型 | Plug, Female Sockets | 接触镀层 | Gold |
| 紧固类型 | Bayonet Lock | 连接器样式 | straight |
| 锁定特性 | Bayonet lock | 触头材料 | CuNi+Au |
| 壳体材料 | Plastic | 端接样式 | Soldering Connection |
| 位数 | 4 | 第一连接器极性 | Female |
| 外壳材料及表面处理 | Thermoplastic Polymer, Glass Fiber | ||
产品信息
| 系列 | EN3 | 产品特性 | Cable Clamp |
| 适用产品/相关产品 | EN3C4FK | ||
环境参数
| 防护等级 | IP66/68 - Dust Tight, Water Resistant, Waterproof | 工作温度 | -40...+65 °C |
