点击放大查看

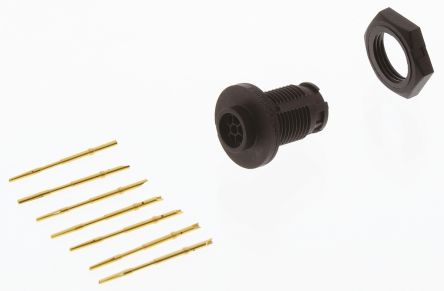

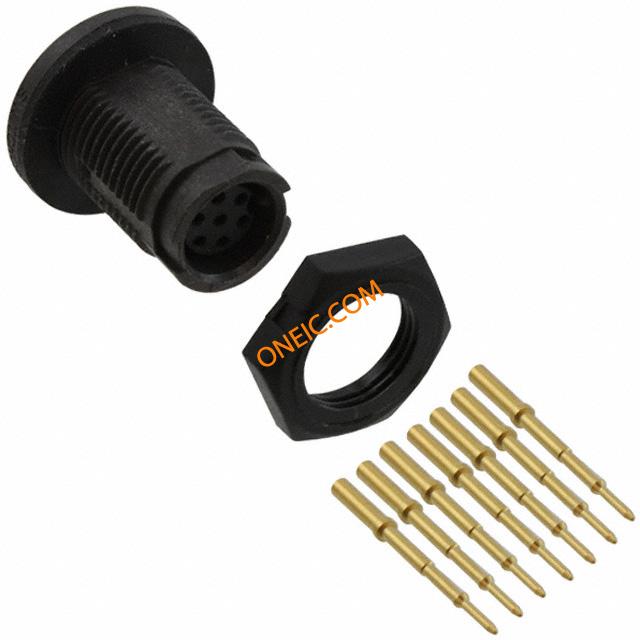

EN2P7F26
| 制造商 | |
| 描述 | CONN RCPT 7POS PANEL MOUNT SKT Standard Circular Connector 7-26 F S/C PANEL CON WEATHERTIGHT CONNECTORS 7-26FS/CPANELCONN,7contacts Socket; Connector: circular; EN2; female; PIN:7; external bayonet Switchcraft EN2 系列 EN2P7F 7路 面板安装 直向 连接器 插座 , 公触点, 卡口式接合 |
| 分类 |
商业参数
| 商标名 | EN2 | 其他名称 | SC1743 |
| 标准包装数量 | 25 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 125VAC/DC | 连接器阻抗 | 标准 |
| 最大额定电流 | 3 A | ||
机械参数
| 重量 | 6.93 g | 包装方式 | Bulk |
| 外壳尺寸 | 26 | 导线线规 | 26 |
| 方向 | Keyed | 外壳样式 | Receptacle |
| 端接方式 | Crimp or Solder Cup | 触头类型 | Socket |
| 安装类型 | Panel Mount, Bulkhead - Front Side Nut | 连接器类型 | Receptacle, Female Sockets |
| 接触镀层 | Gold | 紧固类型 | Bayonet Lock |
| 安装样式 | Panel | 外壳材料（壳体） | Plastic |
| 锁定特性 | external bayonet | 触头材料 | 铜合金 |
| 壳体材料 | 热塑性 | 包装数量 | 1 |
| 主要材料 | CircularPlasticConnector | 端接排数 | 压接，焊接 |
| 连接器 - 电缆 | socket | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 配接方向 | Bayonet |
| 触点数 | 7 | 位数 | 7 |
| 外壳材料及表面处理 | Thermoplastic | 触点材料 - 镀层 | gold plated |
产品信息
| SPG | 1 | 类型 | PanelSocket |
| 系列 | EN2 | 制造商全称 | EN2Series |
| 产品子类型 | Connectors | 适配器系列 | EN2 |
| 单元数量 | 1 | 基础产品编号 | EN2P7F |
| 输出配置 | Panel Mount, Bulkhead - Front Side Nut | ||
环境参数
| 防护等级 | IP68 - Dust Tight, Waterproof | 工作温度 | -40°C ~ 85°C |
文档与媒体
相关型号
16295
Conxall / Switchcraft
Standard Circular Connector PROTECTIVE CAP Connector Accessories Cap Receptacle DUST CAP MICRO-CON-X MICRO CON-X DUST CAP DUST CAP, RUBBER DUST CAP, MINI EN3 MICROCON-XRECEPCAP Switchcraft CON X 系列 IP67 防尘盖

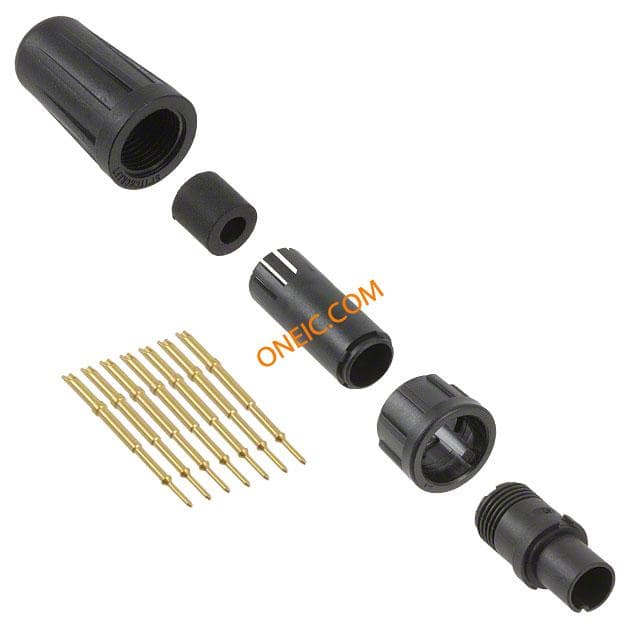

EN2C7M26G1
Switchcraft Inc.
CONN PLUG 7POS CORD PIN Plug; Connector: circular; EN2; male; PIN:7; internal bayonet; 3A

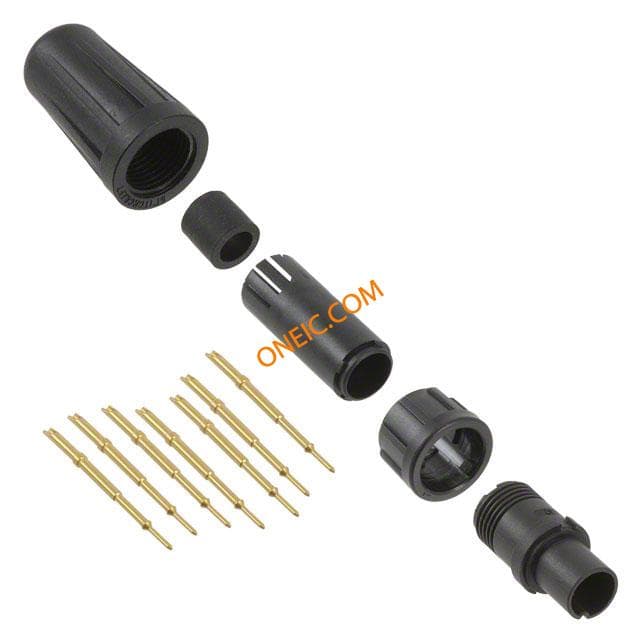

EN2C7M26G2
Switchcraft Inc.
CONN PLUG 7POS CORD PIN Plug; Connector: circular; EN2; male; PIN:7; internal bayonet; 3A

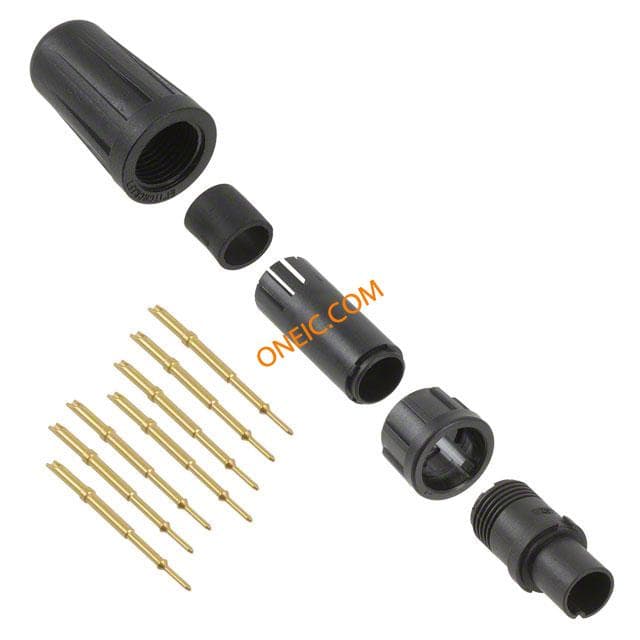

EN2C7M26G3
Switchcraft Inc.
CONN PLUG 7POS CORD PIN Plug; Connector: circular; EN2; male; PIN:7; internal bayonet; 3A

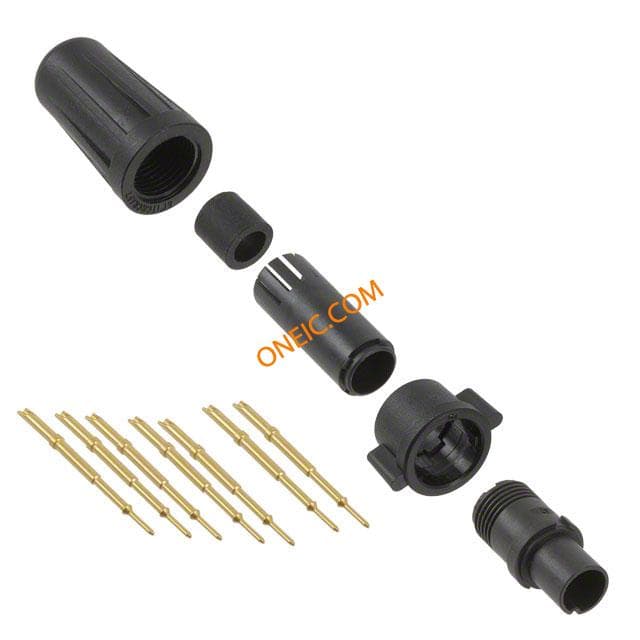

EN2C7M26G2W
Switchcraft Inc.
CONN PLUG 7POS CORD PIN Plug; Connector: circular; EN2; male; PIN:7; internal bayonet; 3A

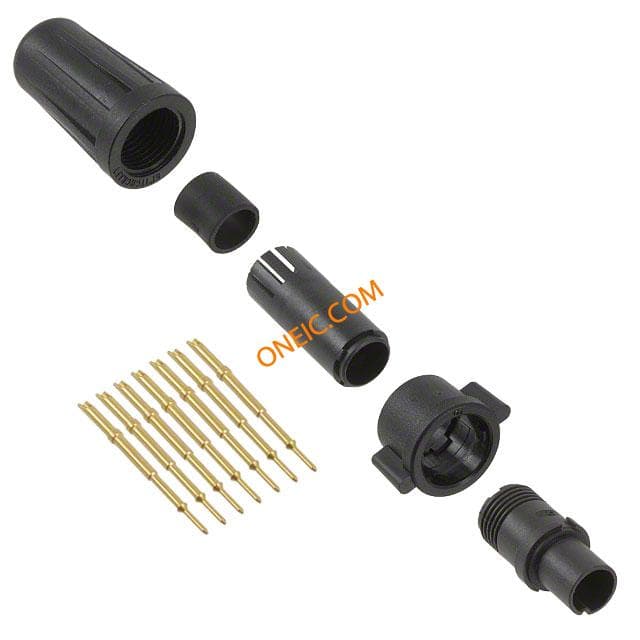

EN2C7M26G3W
Switchcraft Inc.
CONN PLUG 7POS CORD PIN Plug; Connector: circular; EN2; male; PIN:7; internal bayonet; 3A

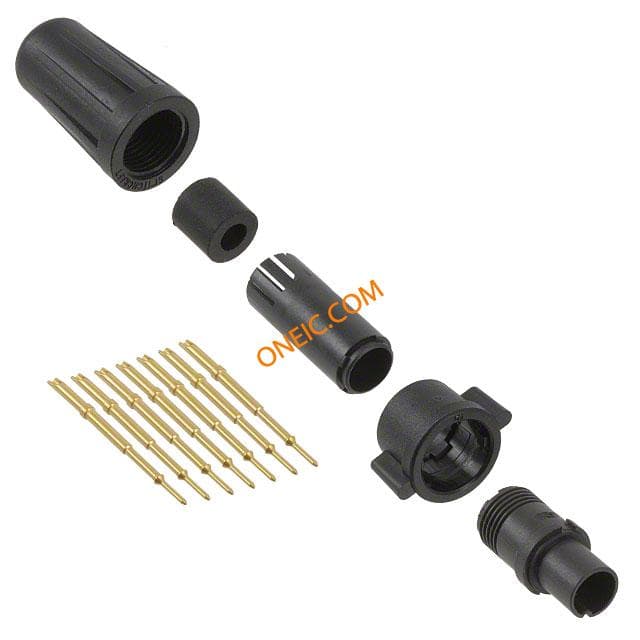

EN2C7M26G1W
Switchcraft Inc.
CONN PLUG 7POS CORD PIN Plug; Connector: circular; EN2; male; PIN:7; internal bayonet; 3A

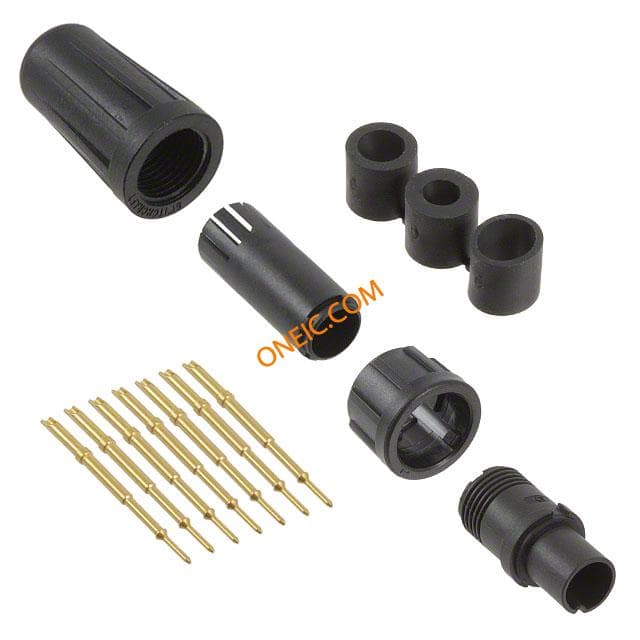

EN2C7M26DC
Switchcraft Inc.
CONN PLUG 7POS CORD PIN Standard Circular Connector 7-26 M S/C CORD CON 7-26MS/CCORDCONN,7contacts Plug; Connector: circular; EN2; male; PIN:7; internal bayonet; 3A

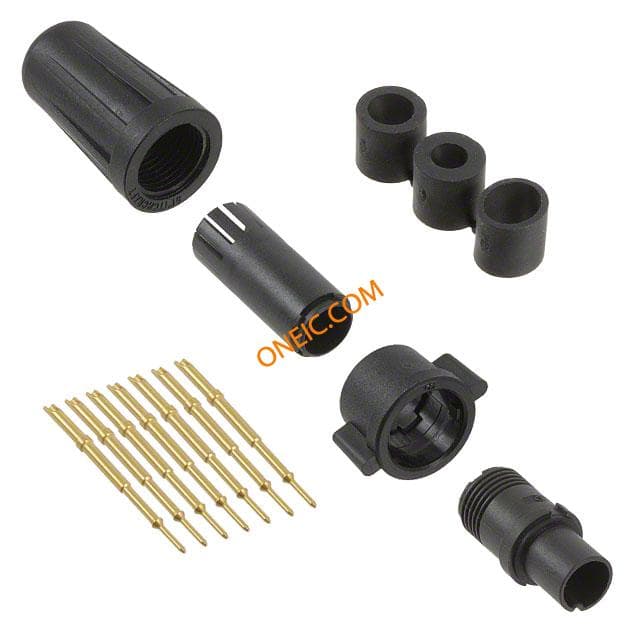

EN2C7M26DCW
