PBC36DFDN
| 制造商 | Sullins Connector Solutions, Inc. |
| 描述 | CONN HEADER .100 DUAL STR 72POS |
商业参数
| 其他名称 | S2241E-36 | 标准包装数量 | 50 |
机械参数
| 颜色 | Black | 间距 | 0.100" (2.54mm) |
| 包装方式 | Bulk | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole | 连接器类型 | Header, Unshrouded, Breakaway |
| 接触镀层 | Gold | 排数 | 2 |
| 位数 | 72 | 接触长度 - 配合 | 0.318" (8.08mm) |
| 接触镀层厚度 | 10µin (0.25µm) | ||
产品信息
| 加载位置数 | All | ||
相关型号

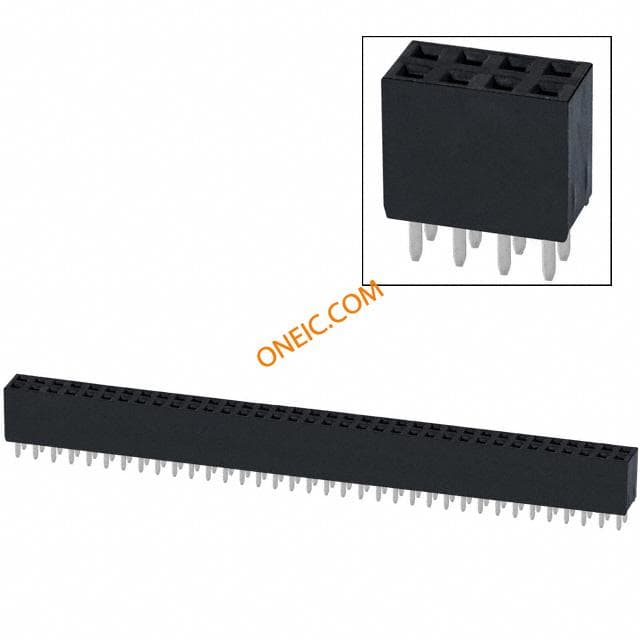

PPTC362LFBN-RC
Sullins Connector Solutions
CONN HEADER FMAL 72PS .1" DL TIN
PPPC362LFBN-RC
Sullins Connector Solutions
CONN HEADER FMAL 72PS.1" DL GOLD

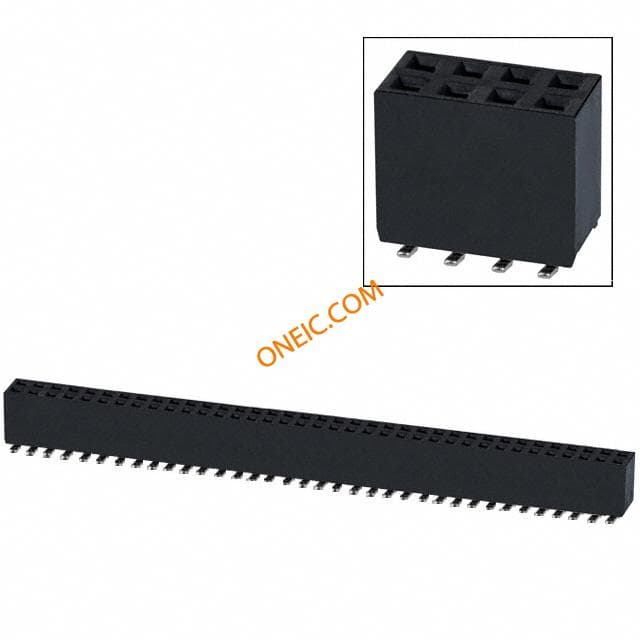

NPTC362KFMS-RC
Sullins Connector Solutions
CONN FEMALE 72POS DL .1" TIN SMD

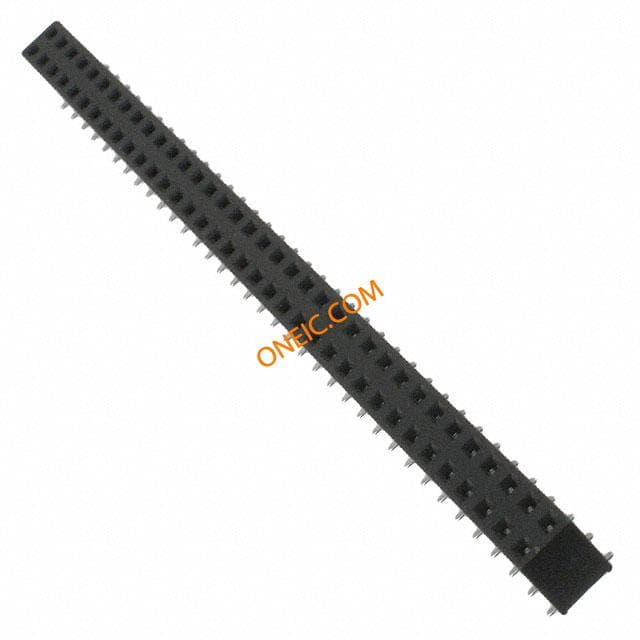

PPTC362KFMS
Sullins Connector Solutions
CONN FEMALE 72POS DL .1" TIN SMD
PPPC362KFMS
Sullins Connector Solutions
CONN FMALE 72POS DL .1" GOLD SMD
NPPC362KFMS-RC
Sullins Connector Solutions
CONN FMALE 72POS DL .1" GOLD SMD

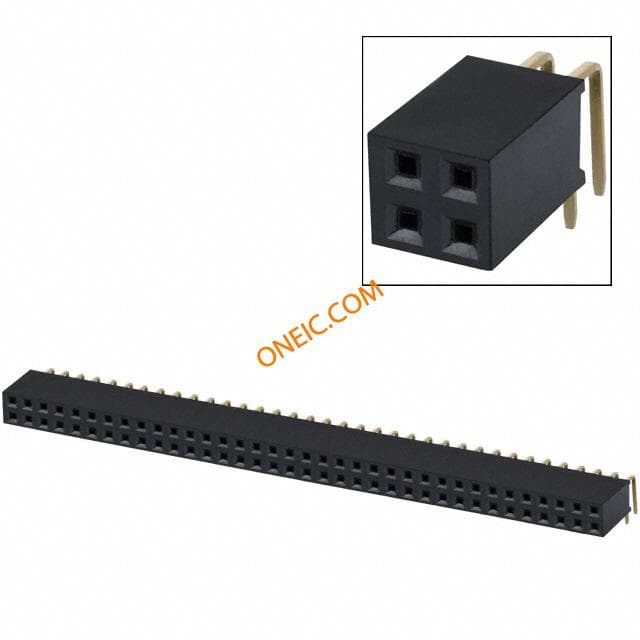

PPPC362LJBN
Sullins Connector Solutions
CONN FMALE 72POS DL .1" R/A GOLD
PPPC362LJBN-RC
Sullins Connector Solutions
CONN FMALE 72POS DL .1" R/A GOLD
NPPC362LFBN-RC
Sullins Connector Solutions
CONN HEADER FMAL 72PS.1" DL GOLD
PPTC362LJBN-RC
Sullins Connector Solutions
CONN FEMALE 72POS DL .1" R/A TIN
PPTC362LFBN
Sullins Connector Solutions
CONN HEADER FEM 72POS .1" DL TIN
PPPC362LFBN
Sullins Connector Solutions
CONN HEADER FEM 72POS.1" DL GOLD
PPTC362LJBN
Sullins Connector Solutions
CONN FEMALE 72POS DL .1" R/A TIN
