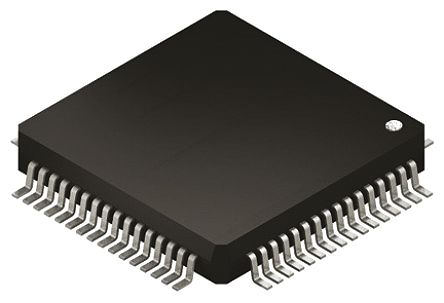

STM32F100RCT6
| 制造商 | STMicroelectronics N.V. |
| 描述 | LQFP 64 10X10X1.4 1 Cortex M3 256K LQFP64 85°C IC ARM CORTEX MCU 256KB 64LQFP ARM Microcontrollers - MCU 32BIT CORTEX M3 256K Flash 6KB RAM STM32F100RCT6 MCU, 32BIT, CORTEX-M3, 24MHZ, LQFP-64 STMicroelectronics STM32F 系列 32 bit ARM Cortex M3 MCU, 24MHz, 256 kB ROM 闪存, 24 kB RAM, 64针 LQFP封装 |
| 分类 |
商业参数
| 最小起订量 | 1 | 单位包装 | 960 |
| 产品类别 | ARM Microcontrollers - MCU | 标准包装数量 | 160 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85423190 | 无铅定义 | RoHS-conform |
电气参数
| 转速 | 24MHz | RAM 大小 | 8192Byte |
| 内核大小 | 32-Bit | 核心类型 | ARM Cortex M3 |
| 接口 | :I2C, SPI, UART, USART | 存储器容量 | 256KByte |
| 存储器类型 | FLASH | I/O 数量 | 51 |
| 时钟频率 | :24MHz | 数据转换器 | A/D 16x12b; D/A 2x12b |
| 最大频率 | 24MHz | DAC数量 | 12 |
| 振荡器类型 | Internal | 供电电压 | :2V |
| 数字I/O线数 | 51pins | 分辨率（位） | 12Bit |
| 通道数量 | 2 | 程序存储器大小 | 256KB (256K x 8) |
| 程序存储器类型 | FLASH | ADC/DAC 数量 | 16channels |
| 最小输入电压 | 3.6V | 供电电压 (Vcc/Vdd) | 2 V ~ 3.6 V |
机械参数
| 重量 | 0.00026 | 包装方式 | TRAY |
| 引脚数 | :64 | 封装形式 | LQFP64 |
| 材料表面处理 | :MSL 3 - 168 hours | 核心数/总线宽度 | 32Bit |
产品信息
| 匹配码 | STM32F100RCT6 | SPI编号 | 2 |
| 外设 | DMA, PDR, POR, PVD, PWM, Temp Sensor, WDT | 架构 | :ARM Cortex-M3 |
| 连接性 | I²C, IrDA, LIN, SPI, UART/USART | 核心处理器 | ARM® Cortex™-M3 |
| 定时器数量 | 7 | 控制器系列 | :STM32F |
| 标准交期 | 16 weeks | ||
环境参数
| 测试温度 | -40°C | 工作温度 | -40°C ~ 85°C |
文档与媒体
相关型号

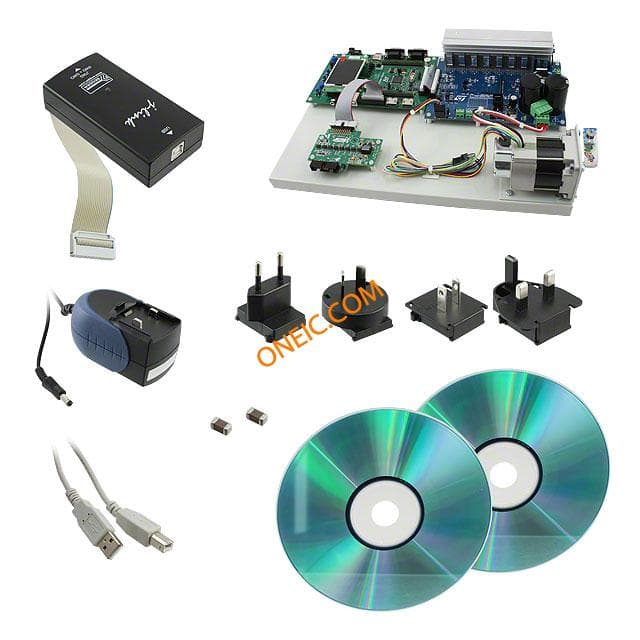

STM32100B-MCKIT
