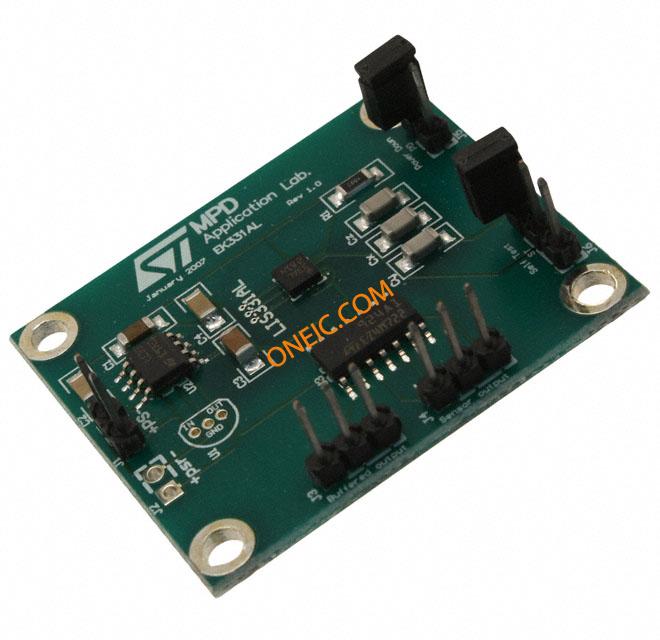

STEVAL-MKI021V1
| 制造商 | STMicroelectronics N.V. |
| 描述 | BOARD & REF DESIGN Acceleration Sensor Development Tools LIS302SG 3-Axis BRD 2g Analog Output Getting Started With The STEVAL-MKI032V1, S32-MEMS Demonstration Board Demo Board LIS331AL Analog BOARD EVALUATION LIS331AL MEMS, LIS331AL, LINEAR ACCEL, 3 AXIS, DEMO BOARD MEMS, LIS331AL, ACCEL, DEMO BOARD |
| 分类 |
商业参数
| 最小起订量 | 5 | 单位包装 | 1 |
| 产品类别 | Acceleration Sensor Development Tools | 标准包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423190 |
| 汽车级 | NO | 无铅定义 | RoHS-conform |
电气参数
| 核心类型 | :Sensor | 接口 | Analog |
| 输出类型 | Analog | 灵敏度 | 0.145 x Vdd = V/g |
| 传感器类型 | Accelerometer, 3 Axis | 感应角度 | Triple Axis |
| 感应范围 | ±2g | 供电电压 | 3 V ~ 3.6 V |
| 元件数量 | :LIS331AL | 最小供电电压 | 3.7 V to 18 V |
| 平均整流电流 Io | 6 mA | ||
机械参数
| 重量 | 0 | 包装方式 | Bulk |
| 加速度 | 2 g | 封装形式 | PCB |
产品信息
| 类型 | :Linear Capacitive Accelerometer | 内容 | Board |
| 嵌入式 | No | 产品特性 | :High Shock Survivability, Provides an Easy Means to Control Power-down |
| 套件类型 | :Sensing - Motion, Vibration, Shock | 匹配码 | LIS331AL DEMO BOARD |
| 套件内容 | :Board | 轴数 | 3 |
| 标准交期 | 18 weeks | 工具类型/特性 | LIS331AL |
| 使用的IC/零件 | LIS331AL | 芯片组制造商 | :STMicroelectronics |
| 应用细节 | :Accelerometer | 支持MCU系列 | :LIS331AL |
文档与媒体
相关型号
LE33CD-TR
stmicroelectronics
LDO Regulator Pos 3.3V 0.1A 8-Pin SO N T/R LDO.VREG POS 3,3V 0,1A SO8 IC REG LDO 3.3V 0.1A 8SO LE33CD-TR, Low Dropout Voltage Regulator, 0.1A, 3.3V ±2%, 8-Pin SO LDO Voltage Regulators 3.3V 100mA Positive IC, LINEAR VOLTAGE REGULATOR LDOREGULATOR,LE33CD-TR Voltage stabiliser; LDO, fixed; 3.3V; 0.1A; SMD; SO8; Package: roll STMicroelectronics , LDO 调节器, 100mA, 3.3 V输出 ±2%, 8针 SOIC封装
TS924AID
stmicroelectronics
OP AMP QUAD GP R-R I/O 12V 14SOP OP Amp Quad GP R-R I/O 12V 14-Pin SOIC Tube IC OPAMP GP 4MHZ RRO 14SO

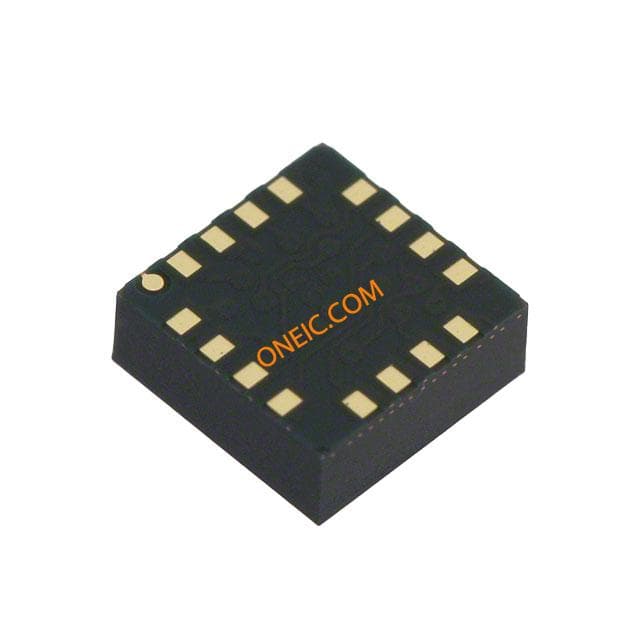

LIS331DLH
