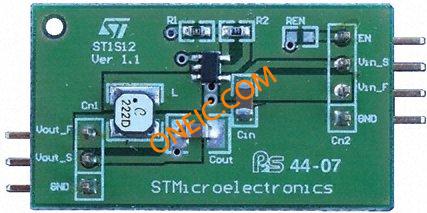

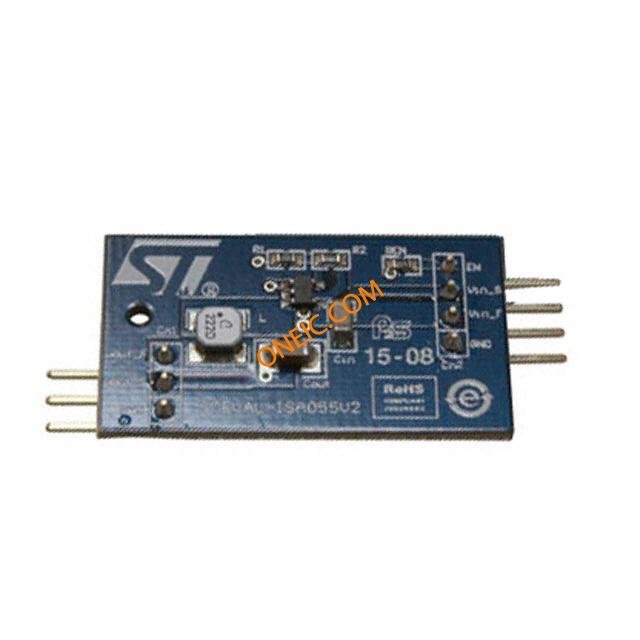

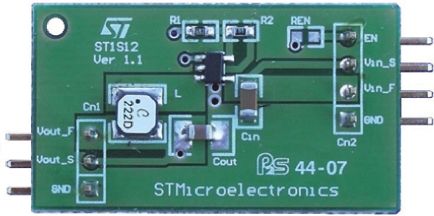

STEVAL-ISA055V2
| 制造商 | |
| 描述 | Evaluation Board For 0.7 A / 3.3 V Synchronous Buck Converter Power Management IC Development Tools 0.7A/3.3V SYNC BUCK W/ ENABLE ST1S12 BOARD EVAL BASED ON ST1S12 STEVAL-ISA055V2, Development Kit, Power Management, Demonstration Board ST1S12xx0.7A3.3VSynchBuckConverter STMicroelectronics 同步降压转换器 电源管理 处理器和微控制器开发套件 |
| 分类 |
商业参数
| 产品 | Power Management Modules | 其他名称 | 497-8220 |
| 产品类别 | Power Management IC Development Tools | 标准包装数量 | Bulk |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 2.5 V to 5.5 V | 输出电流 | 700mA |
| 稳压器拓扑 | Buck | 开关频率 | 1.7MHz |
| 最小输入电压 | 3.3V | ||
机械参数
| 包装方式 | Bulk | 电路板厚度 | Fully Populated |
产品信息
| 名称 | 同步降压转换器 | 类型 | Development Kit |
| 内容 | Board | 技术 | Power Management |
| 套件内容 | Demonstration Board | 主要用途 | DC/DC, Step Down |
| 卡标准 | Development Kit | 输出及类型 | 1, Non-Isolated |
| 工具类型/特性 | ST1S12x | 使用的IC/零件 | ST1S12 |
环境参数
| 机械寿命 | NRND: Not recommended for new designs. | ||
文档与媒体
相关型号
ST1S12G12R
stmicroelectronics
Conv DC-DC Single Step Down 2.5V to 5.5V 5-Pin TSOT-23 T/R DC-DC 1.2V 0.7A D SOT23-5L SMD DC-DC 1.8V 0.7A D SOT23-5L SMD IC REG BUCK SYNC 1.2V .7A TSOT23 Voltage Regulators - Switching Regulators STEP-DOWN SWITCH REG W/ENABLE 1.7MHZ Switching Voltage Regulators STEP-DOWN SWITCH REG W/ENABLE 1.7MHZ
ST1S12G18R
stmicroelectronics
Conv DC-DC Single Step Down 2.5V to 5.5V 5-Pin TSOT-23 T/R SYNC. RECTIF. W IC REG BUCK SYNC 1.8V .7A TSOT23 Voltage Regulators - Switching Regulators STEP-DOWN SWITCH REG W/ENABLE 1.7MHZ IC REG BCK SYNC 1.8V 0.7A TSOT23 Switching Voltage Regulators STEP-DOWN SWITCH REG W/ENABLE 1.7MHZ
ST1S12GR
STMicroelectronics
DC/DC Switching Regulators SYNCH RECT W/ENABLE STEP-DOWN REG 1.7 Conv DC-DC Single Step Down 2.5V to 5.5V 5-Pin TSOT-23 T/R DC-DC 6.5V 0.7A D SOT23-5L SMD IC REG BUCK SYNC ADJ 0.7A TSOT23 Voltage Regulators - Switching Regulators SYNCH RECT W/ENABLE STEP-DOWN REG 1.7 Conv DC-DC Single-OUT Step Down 5-Pin TSOT-23 T/R Switching Voltage Regulators SYNCH RECT W/ENABLE STEP-DOWN REG 1.7
