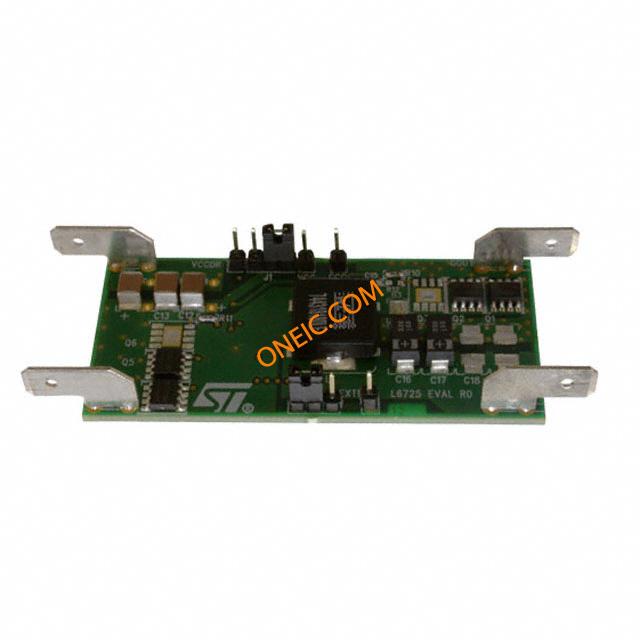

STEVAL-ISA024V1
| 制造商 | |
| 描述 | Step Down DC-DC Converter Demonstration Board With 3.3 Vout And 250 KHz Switching Frequency Power Management IC Development Tools StepDwn DCDC Cnvertr 3.3Vout/20A 250Khz EVAL BOARD 20A 250KHZ L6725 |
| 分类 |
商业参数
| 产品 | Power Management Modules | 其他名称 | 497-5867 |
| 产品类别 | Power Management IC Development Tools | 标准包装数量 | Bulk |
合规参数
| RoHS | No | ||
电气参数
| 额定电压 | 4.5 V to 14 V | 输出电流 | 20A |
| 稳压器拓扑 | Buck | 开关频率 | 250kHz |
| 最小输入电压 | 3.3V | ||
机械参数
| 电路板厚度 | Fully Populated | ||
产品信息
| 类型 | Development Kit | 内容 | Board |
| 主要用途 | DC/DC, Step Down | 输出及类型 | 1, Non-Isolated |
| 工具类型/特性 | L6725 | 使用的IC/零件 | L6725 |
文档与媒体
相关型号
L6725A
stmicroelectronics
DC DC Cntrlr Single-OUT Step Down 1.8V to 18V Input 16-Pin SO N Tube DC-DC 0.6V 20A D SO-16N SMD IC REG CTRLR BUCK PWM VM SO-16N L6725A, PWM Voltage Mode Controller, 30000mA, 16-Pin SO N Switching Controllers Vltg Mode PWM Controller VOLTAGEMODEPWMCONT.
L6725
stmicroelectronics
DC DC Cntrlr Single-OUT Step Down 1.8V to 18V Input 16-Pin SO N Tube DC-DC 0.6V 20A D SO-16N SMD IC REG CTRLR BUCK PWM VM SO-16N L6725, PWM Voltage Mode Controller, 30000mA, 16-Pin SO N Switching Controllers Vltg Mode PWM Controller
L6725TR
stmicroelectronics
DC DC Cntrlr Single-OUT Step Down 1.8V to 18V Input 16-Pin SO N T/R DC-DC 0.6V 20A D SO-16N SMD IC REG CTRLR BUCK PWM VM 16SOICN Switching Controllers Adjustable Step Down Controller
L6725ATR
stmicroelectronics
DC DC Cntrlr Single-OUT Step Down 1.8V to 18V Input 16-Pin SO N T/R Switching Converters, Regulators & Controllers Step-Down Controller DC-DC 0.6V 20A D SO-16N SMD IC REG CTRLR BUCK PWM VM 16-SOIC Switching Controllers Step-Down Controller
