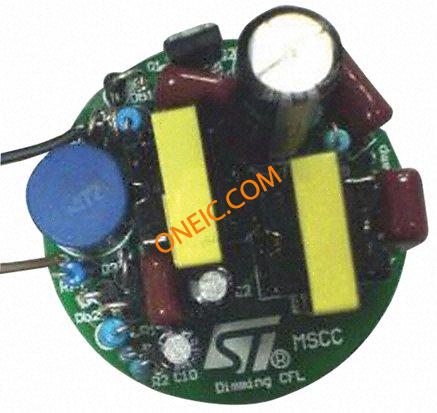

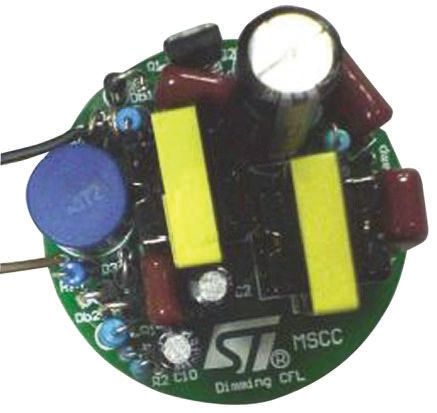

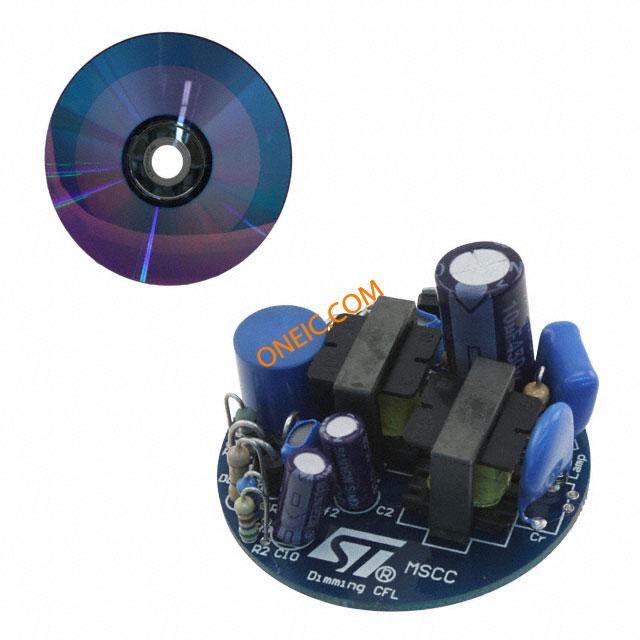

STEVAL-ILD002V1
| 制造商 | |
| 描述 | BOARD & REF DESIGN Power Management IC Development Tools DIMMABLE CFL BALLAST SOLUT BASED ON L6574 BOARD EVAL BASED ON L6574 20W Dimmable CFL ballast based on L6574 L6574, CFL BALLAST SOLUTION, DIMMABLE, DEMO BOARD |
| 分类 |
商业参数
| 产品 | Power Management Modules | 其他名称 | STEVAL-ILD002V1-ND |
| 产品类别 | Power Management IC Development Tools | 标准包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85049018 |
电气参数
| 调光方式 | Yes | 功耗（瓦） | 20 W |
| 核心类型 | :- | 频率 | No |
| 灯类型 | Compact Fluorescent | 额定电压 | 264 Vac |
| 元件数量 | :L6574 | ||
机械参数
| 形状 | Tubular | 重量 | 0.01 |
| 底座类型 | Electronic | 包装方式 | Bulk |
产品信息
| 内容 | Board | 嵌入式 | No |
| 套件类型 | :Lighting | 主要用途 | Lighting, Ballast Control |
| LED数量 | 1 | 主要特性 | 20 W (3U T3 Lamp), 180 ~ 264 VAC, Dimmable |
| 使用的IC/零件 | L6574 | 芯片组制造商 | :STMicroelectronics |
| 次要特性 | Preheating Ignition | 应用细节 | :CFL Dimming Ballast |
环境参数
| 机械寿命 | NRND: Not recommended for new designs. | ||
文档与媒体
相关型号
L6574D013TR
stmicroelectronics
MOSFET DRVR 600V 0.45A 2-OUT Hi/Lo Side Half Brdg Inv/Non-Inv 16-Pin SO T/R HaBr MOSvIGBTDr 600V SO-16N SMD IC DRIVER BALLAST CFL/TL 16SOIC Gate Drivers CFL/TL Ballast
L6574
stmicroelectronics
MOSFET DRVR 600V 0.45A 2-OUT Hi/Lo Side Half Brdg Inv/Non-Inv 16-Pin PDIP Tube HaBr MOSvIGBTDr 600V DIP-16 THT IC DRIVER CFL/TL BALLAST 16-DIP L6574, Lighting Ballast Driver Half Bridge, 16.6V, 16-Pin, PDIP Gate Drivers CFL/TL Ballast DIMMABLE LAMP BALLAST, 6574, DIP16 照明镇流器驱动器, 半桥, 16.6V, 16针 PDIP封装
LD1086D2M33TR
stmicroelectronics
LDO Regulator Pos 3.3V 1.5A 4-Pin(3+Tab) D2PAK/A T/R 1.5A LOW DROP F IC REG LDO 3.3V 1.5A D2PAK LDO Voltage Regulators 3.3V 1.5A Positive LDO, REG, 3.3V, 1.5A, 1%, D2-PAK-3 STMicroelectronics , LDO 调节器, 1.5A, 3.3 V输出 ±1%, 最大为 30 V输入, 3针 D2PAK封装 LDO VREG 3.3V 1.5A D2PAK
L6574D
stmicroelectronics
MOSFET DRVR 600V 0.45A 2-OUT Hi/Lo Side Half Brdg Inv/Non-Inv 16-Pin SO HaBr MOSvIGBTDr 600V SO-16N SMD IC BALLAST DRIVER CFL/TL SO-16 Gate Drivers CFL/TL Ballast BALLAST, DIMMABLE LAMP, SMD, 6574
