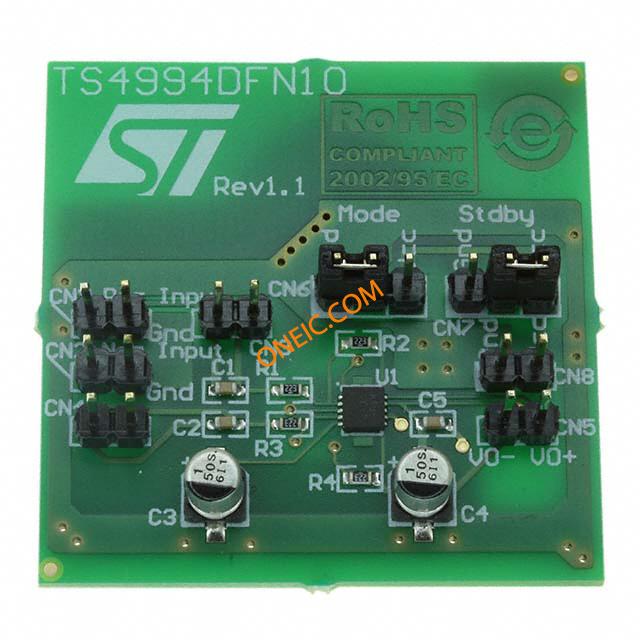

STEVAL-CCA002V1
| 制造商 | |
| 描述 | Low Voltage Differential Audio Power Amplifier Based On The Ts4994 Audio IC Development Tools Lo Vltg Differential Audio Pwr Amp BOARD EVAL FOR LP DIFF TS4994IQT Low-Voltage Differential Audio Power Amplifier based on TS4994 |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 产品类别 | Audio IC Development Tools | 标准包装数量 | Bulk |
合规参数
| RoHS | No | 欧盟RoHS | Compliant |
电气参数
| 输出类型 | 1-Channel (Mono) | 输出功率 | 1 W |
| 供电电压 | 2.5 V to 5.5 V | 最大输出功率×通道数@负载 | 1W x 1 @ 8 Ohm |
机械参数
| 电路板厚度 | Fully Populated | ||
产品信息
| 类型 | Development Kit | 内容 | Board |
| 放大器类型 | Class AB | 工具类型/特性 | TS4994 |
| 使用的IC/零件 | TS4994 | ||
环境参数
| 机械寿命 | End of Life: Scheduled for obsolescence and will be discontinued by the manufacturer. | 工作温度 | -40°C ~ 85°C |
