STDS75M2F
| 制造商 | |
| 描述 | Temp Sensor Digital Serial (2-Wire, I2C) 8-Pin SO N T/R IC TEMP SENSOR/WATCHDOG 8-SOIC STDS75M2F, 12bit Temperature Sensor ±3°C Serial-I2C 2.7 to 5.5V 8-Pin SOIC STDS75 Series 5.5 V 10 mA Digital Temperature Sensor and Thermal Watchdog |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 其他名称 | 497-6177-2 | 标准包装数量 | 2,500 |
| 标准封装名称 | SOIC | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 精度 | ±3°C(Max) | 接口 | Serial (2-Wire, I2C) |
| 输出风扇 | No | 分辨率 | 12 bit |
| 输出类型 | Digital | 传感器类型 | Internal |
| 额定电压 | 2.7 V | 供电电压 | 2.7 V ~ 5.5 V |
| 最小供电电压 | 5.5 V | ||
机械参数
| 宽度 | 4mm | 高度 | 1.25mm |
| 长度 | 5mm | 包装方式 | Tape and Reel |
| 引脚样式 | Gull-wing | 安装类型 | Surface Mount |
| 封装形式 | 8-SOIC (0.154", 3.90mm Width) | 冷却的封装 | SO |
| 总长度 | 5(Max) | 包装数量 | SO N |
| 尺寸/外形 | 5 x 4 x 1.25mm | 位数 | 8 |
| 外壳尺寸-插件 | 1.65(Max) | 供应商器件封装 | 8-SO |
产品信息
| 功能 | Temp Sensor | 拓扑 | ADC (Sigma Delta), Comparator, Register Bank |
| 输出报警 | Yes | 印刷电路板数量 | 8 |
环境参数
| 感应温度 | -55°C ~ 125°C | 工作温度 | -55°C ~ 125°C |
文档与媒体
PDF 文档
相关型号

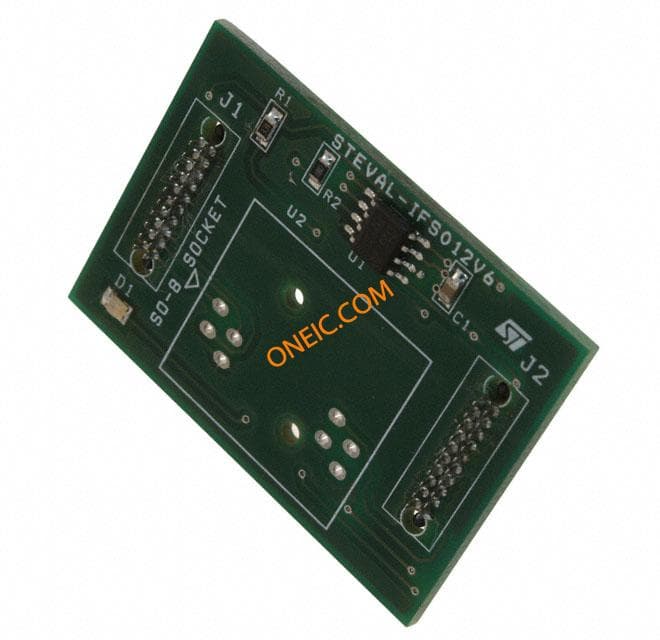

STEVAL-IFS012V6
